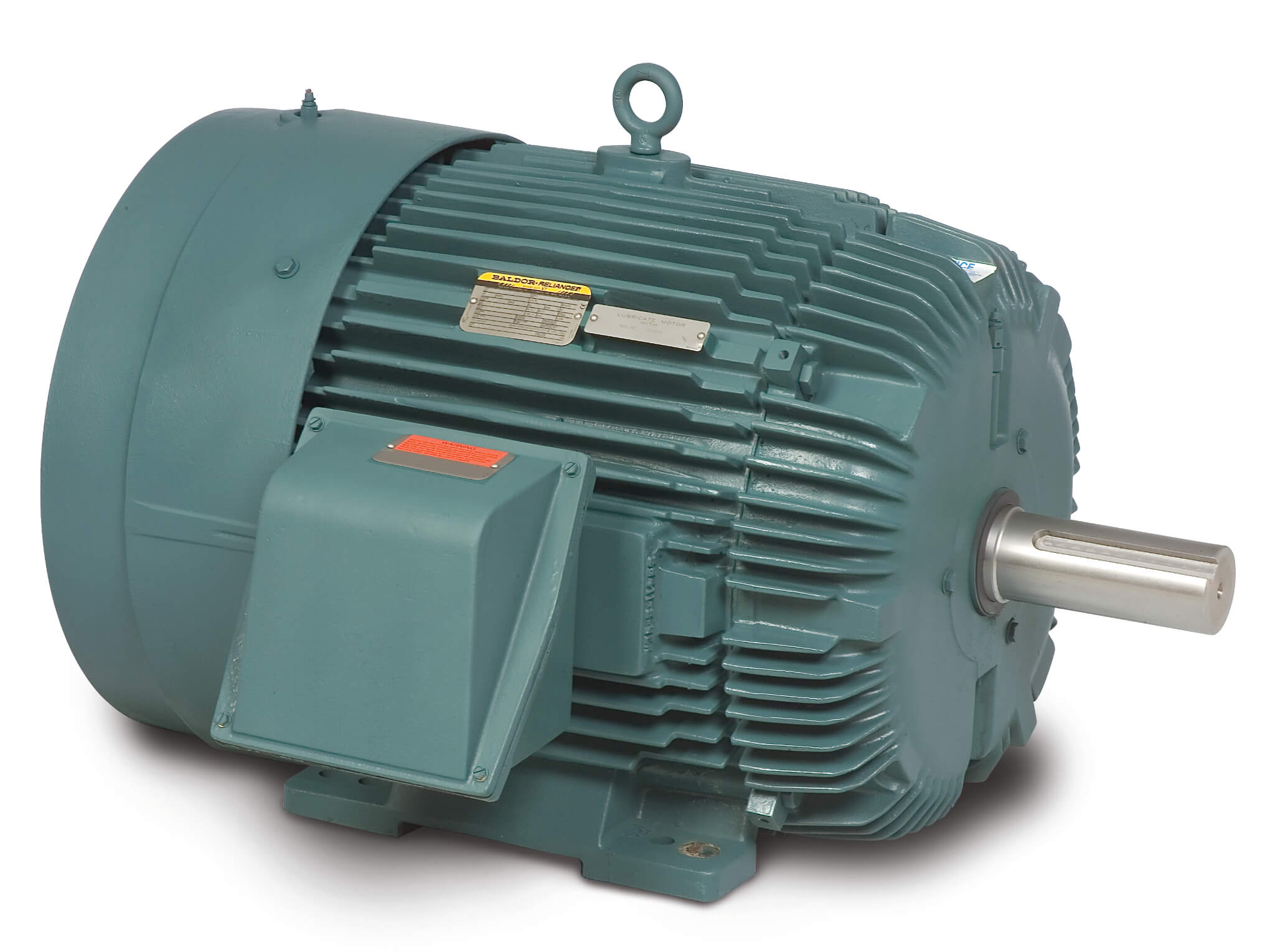

BALDOR MOTOR ECP4316TR-4 Severe Duty Motor, 460V, 1800 RPM, 60 Hz, 75 hp, 3 Phase, TEFC, 365T Frame
Get it by Monday, Dec 22
€18,960.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 85.9A @ 460V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Mobil SHC 220 (Athens Only) |
| Conduit Box Position | F1 |
| Constant Torque Speed Range | 30 to 60 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 95.4% |
| Enclosure Design | TEFC |
| Feedback Device | NO FEEDBACK |
| Frame | 365T |
| Frame Material | Iron |
| Frequency | 60 Hz |
| Full Load Amps | 85.9A |
| Grease Type | Mobilith SHC220 |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 85.9A |
| Hp | 75 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Kva Code | G |
| Lifting Lugs | Standard Lifting Lugs |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Lead Quantity/wire Size | 3 @ 4 AWG |
| Motor Mounting Type | Foot Mounted |
| Motor Type | A36070M |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1800 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output @ Frequency | 75 hp @ 60 Hz |
| Overall Length | 33.44" |
| Phase | 3 |
| Power Factor | 86 |
| Product Datasheet | baldor-motor-ecp4316tr-4.pdf |
| Product Family | General Industrial |
| Pulley End Bearing Type | Roller |
| Pulley Face Code | Standard |
| Rpm | 1780 RPM |
| Rpm Range | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 2.374" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Rpm | 1800 RPM |
| Synchronous Rpm @ Frequency | 1800 RPM @ 60 Hz |
| Voltage | 460V |
| Voltage @ Frequency | 460V @ 60 Hz |
| Xp Division | Division II |
| Xp Temp Code | T3 |
Shipping Info:
| Ship weight (kg) | 431.1 |
| Ship height (cm) | 74.93 |
| Ship length (cm) | 105.41 |
| Ship width (cm) | 87.63 |
| HS code | 85015230 |
| Country of Origin | US |
Product Details:
- Constant Torque Speed Range: 30-60
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 95.40%
- Inverter Code: Inverter ready
- KVA Code: G
- Lifting Lugs: Standard Lifting Lugs
- Motor Lead Quantity/Wire Size: 3 @ 4 AWG
- Product Family: General Industrial
- Pulley End Bearing Type: Roller
- Pulley Face Code: Standard
- Shaft Diameter: 2.374 in
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
Documentation:
Product Variants
| Model | Hp | Frame | Nameplate Rpm | Power Factor | Service Factor | Overall Length | Shaft Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ECP2276T | 7 1/2 hp | 254T | 1180 RPM | 71 | 1.15 | 24.78" | 1 5/8" | 0954M | €4,455.55 | |
| ECP2276T-4 | 7 1/2 hp | 254T | 1180 RPM | 71 | 1.15 | 24.78" | 1 5/8" | 0954M | €4,455.55 | |
| ECP2276T-5 | 7 1/2 hp | 254T | 1180 RPM | 71 | 1.15 | 24.78" | 1 5/8" | 0954M | €4,455.55 | |
| ECP2280T-4 | 5 hp | 254T | 880 RPM | 61 | 1.15 | 24.78" | 1 5/8" | 0952M | €6,836.08 | |
| ECP2294T | 15 hp | 254T | 5400 RPM | 87 | 1.15 | 24.78" | 1 5/8" | 0934M | €4,555.72 | |
| ECP2332T | 10 hp | 256T | 1180 RPM | 72 | 1.15 | 24.78" | 1 5/8" | 0960M | €5,788.64 | |
| ECP2332T-4 | 10 hp | 256T | 1180 RPM | 72 | 1.15 | 24.78" | 1 5/8" | 0960M | €5,788.64 |
