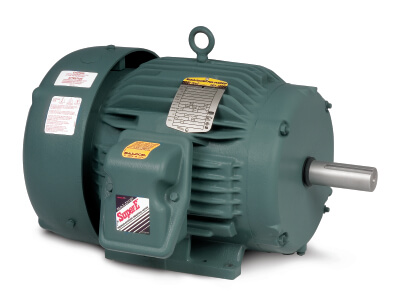

BALDOR MOTOR ECP2333T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 15 hp, 3 Phase, TEFC, 254T Frame | AJ6QZU

BALDOR MOTOR ECP2333T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 15 hp, 3 Phase, TEFC, 254T Frame

Item: AJ6QZUModel: ECP2333T
Check Availability
In Stock

Get it by Thursday, Dec 18

€4,279.98 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Severe Duty Motor
Ac/dc AC
Ambient Temp. 40°C
Amps 36.2/18.1A
Amps @ 208v 38A
Base Indicator Rigid
Base Type Rigid Base
Break-down Torque 153 lbs.-ft.
Class Stock
Code H
Conduit Box Material Cast Iron
Conduit Box Position F1
Design Code A
Duty Continuous
Enclosure Design TEFC
Frame 254T
Frame Material Iron
Frame Size 254T
Frequency 60 Hz
Full Load Amps 36.2/18.1A
Full Load Torque 44.5 ft.-lbs.
Full Load Torque 44.5 lbs.-ft.
Hp 15 hp
Insulation Class Class F
Inverter Code Inverter Duty
Lead 9#12
Line-line Res. @ 25° C 0.59555 ohms A Ph/0 ohms B Ph
Locked-rotor Torque 86.5 lbs.-ft.
Max. Rpm 2700 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Foot Mounted
Mounting Type Foot Mounted
Multiplier SD
Nema/iec NEMA
No Load Amps 7.56A
No. Of Motor Leads 9
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 92.4%
Overall Length 24.78"
Phase 3
Power Factor 84
Proprietary No
Pull-up Torque 69.5 lbs.-ft.
Pulley Face Code Standard
Revision C
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 1 5/8"
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Start Configuration DOL
Starting Amps 127A
Synchronous Rpm 1800 RPM
Temp. Rise 67°C
Temp. Rise @ Rated Load 54°C
Temp. Rise @ S. F. Load 67°C
Type 0944M
Voltage 230/460V
Wire Size 12 AWG

Shipping Info:

Ship weight (kg) 143.55
Ship height (cm)54.61
Ship length (cm)80.01
Ship width (cm)60.96
HS code85015220
Country of OriginUS

Product Details:

    • Features cast iron construction for resistance against wear and corrosion
    • Comes in epoxy coating for protection from fatigue and cracks
    • Operates at an ambient temperature of 40 degrees C
    • Meets NEMA MG 1 Part 31.4.4.2 standards

Product Variants

ProductModelHpFrameNameplate RpmPower FactorService FactorOverall LengthShaft Dia.TypePrice
BALDOR MOTOR ECP2276T Severe Duty Motor, 230/460V, 1200 RPM, 60 Hz, 7.5 hp, 3 Phase, TEFC, 254T Frame | AJ6QZK ECP2276T7 1/2 hp254T1180 RPM711.1524.78"1 5/8"0954M€4,455.55
BALDOR MOTOR ECP2276T-4 Severe Duty Motor, 460V, 1200 RPM, 60 Hz, 7.5 hp, 3 Phase, TEFC, 254T Frame | AJ6QZL ECP2276T-47 1/2 hp254T1180 RPM711.1524.78"1 5/8"0954M€4,455.55
BALDOR MOTOR ECP2276T-5 Severe Duty Motor, 575V, 1200 RPM, 60 Hz, 7.5 hp, 3 Phase, TEFC, 254T Frame | AJ6QZM ECP2276T-57 1/2 hp254T1180 RPM711.1524.78"1 5/8"0954M€4,455.55
BALDOR MOTOR ECP2280T-4 Severe Duty Motor, 460V, 900 RPM, 60 Hz, 5 hp, 3 Phase, TEFC, 254T Frame | AJ6QZN ECP2280T-45 hp254T880 RPM611.1524.78"1 5/8"0952M€6,836.08
BALDOR MOTOR ECP2294T Severe Duty Motor, 230/460V, 3600 RPM, 60 Hz, 15 hp, 3 Phase, TEFC, 254T Frame | AJ6QZP ECP2294T15 hp254T5400 RPM871.1524.78"1 5/8"0934M€4,555.72
BALDOR MOTOR ECP2332T Severe Duty Motor, 230/460V, 1200 RPM, 60 Hz, 10 hp, 3 Phase, TEFC, 256T Frame | AJ6QZQ ECP2332T10 hp256T1180 RPM721.1524.78"1 5/8"0960M€5,788.64
BALDOR MOTOR ECP2332T-4 Severe Duty Motor, 460V, 1200 RPM, 60 Hz, 10 hp, 3 Phase, TEFC, 256T Frame | AJ6QZR ECP2332T-410 hp256T1180 RPM721.1524.78"1 5/8"0960M€5,788.64
