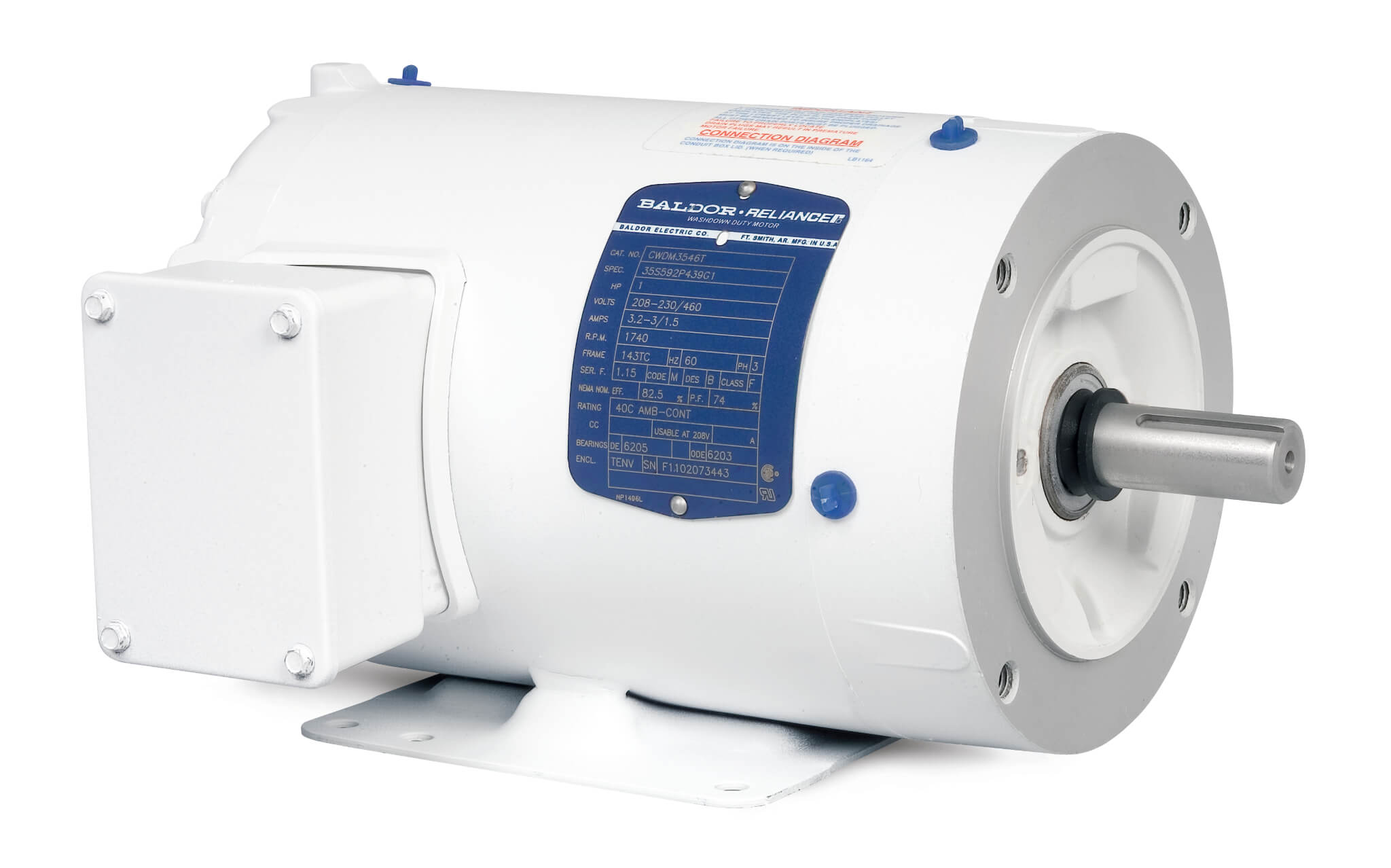

BALDOR MOTOR CWDM3541 White Washdown Motor, 3600 RPM, 0.75 hp, 3 Phase, TENV, 56C Frame | AJ6QNX

BALDOR MOTOR CWDM3541 White Washdown Motor, 3600 RPM, 0.75 hp, 3 Phase, TENV, 56C Frame

Item: AJ6QNXModel: CWDM3541
Check Availability
In Stock

Get it by Monday, Aug 24

€986.40 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ac/dc AC
Ambient Temp. 40°C
Amps 2.2/1.1A
Amps @ 208v 2.3A
Base Rigid Base
Base Indicator Rigid
Base Type Rigid Base
Break Down Torque 7.6 lbs.-ft.
Code N
Color White
Conduit Box Material Steel
Conduit Box Position F1
Design Code B
Duty Continuous
Enclosure Design TENV
Finish Epoxy Coating
Frame 56C
Frame Material Steel
Frame Size 56C
Frequency 60 Hz
Full Load Amps 2.2/1.1A
Full Load Torque 1.1 ft.-lbs.
Full Load Torque 1.1 lbs.-ft.
Hp 3/4 hp
Insulation Class Class F
Inverter Code Not Inverter
Lead 9#18
Line-line Res. @ 25°c 14.8 ohms A Ph/0 ohms B Ph
Locked Rotor Torque 5.6 lbs.-ft.
Motor Enclosure Design Totally Enclosed Non Ventilated
Mounting Type C Face, Foot Mounted
Multiplier WD
Nameplate Speed 3450 RPM
Nema/iec NEMA
No Load Amps 0.61A
No. Of Motor Leads 9
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 80%
Overall Length 11.06"
Phase 3
Power Factor 80
Product Datasheet baldor-motor-cwdm3541.pdf
Proprietary No
Pull Up Torque 4.1 lbs.-ft.
Pulley Face Code C Face
Revision T
Service Factor 1.25
Shaft Dia. 5/8"
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 3400-3600 RPM
Start Configuration DOL
Starting Amps 11.7A
Synchronous Speed 3600 RPM
Temp. Rise @ Rated Load 65°C
Temp. Rise @ S. F. Load 77°C
Type 3518M
Voltage 230/460V
Wire Size 18 AWG
Xp Class And Group None

Shipping Info:

Ship weight (kg) 15.75
Ship height (cm)28.26
Ship length (cm)41.91
Ship width (cm)29.21
HS code85015100
Country of OriginUS

Product Details:

    • Explosion Proof Class/Group: NONE
    • Locked-Rotor Torque: 5.6 LB-FT
    • Nameplate No.: NP1496L
    • Pull-Up Torque: 4.1 LB-FT
    • Starting Current: 11.7 Amps

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpShaft Dia.Nameplate SpeedFull Load AmpsMounting TypeSpeedNo. Of PolesPrice
BALDOR MOTOR CEWDM22976T White Washdown Motor, 1200 RPM, 7.5 hp, 3 Phase, TEFC, 254TC Frame | AJ6PZY CEWDM22976T208-230/460V7 1/2 hp1 5/8"1180 RPM22-23/11AC Face, Foot Mounted1100-1200 RPM6€6,018.67
BALDOR MOTOR CEWDM23932T White Washdown Motor, 1200 RPM, 10 hp, 3 Phase, TEFC, 256TC Frame | AJ6PZZ CEWDM23932T208-230/460V10 hp1 5/8"1180 RPM30.2-30.6/15.1AC Face, Foot Mounted1100-1200 RPM6€6,841.29
BALDOR MOTOR CEWDM23933T White Washdown Motor, 1800 RPM, 15 hp, 3 Phase, TEFC, 254TC Frame | AJ6QAA CEWDM23933T230/460V15 hp1 5/8"1765 RPM36/18AC Face, Foot Mounted1700-1800 RPM4€8,062.43
BALDOR MOTOR CEWDM23934T White Washdown Motor, 1800 RPM, 20 hp, 3 Phase, TEFC, 256TC Frame | AJ6QAC CEWDM23934T208-230/460V20 hp1 5/8"1765 RPM48-52/24AC Face, Foot Mounted1700-1800 RPM4€9,349.86
BALDOR MOTOR CEWDM23994T White Washdown Motor, 3600 RPM, 15 hp, 3 Phase, TEFC, 254TC Frame | AJ6QAE CEWDM23994T230/460V15 hp1 5/8"3500 RPM33.2/16.6AC Face, Foot Mounted3400-3600 RPM2€8,191.17
BALDOR MOTOR CEWDM3545 White Washdown Motor, 3600 RPM, 1 hp, 3 Phase, TEFC, 56C Frame | AJ6QAF CEWDM3545230/460V1 hp5/8"3450 RPM--3400-3600 RPM2€1,619.68
BALDOR MOTOR CEWDM3546 White Washdown Motor, 1800 RPM, 1 hp, 3 Phase, TENV, 56C Frame | AJ6QAG CEWDM3546208-230/460V1 hp5/8"1770 RPM1.7ARigid Base1700-1800 RPM4€2,203.66
