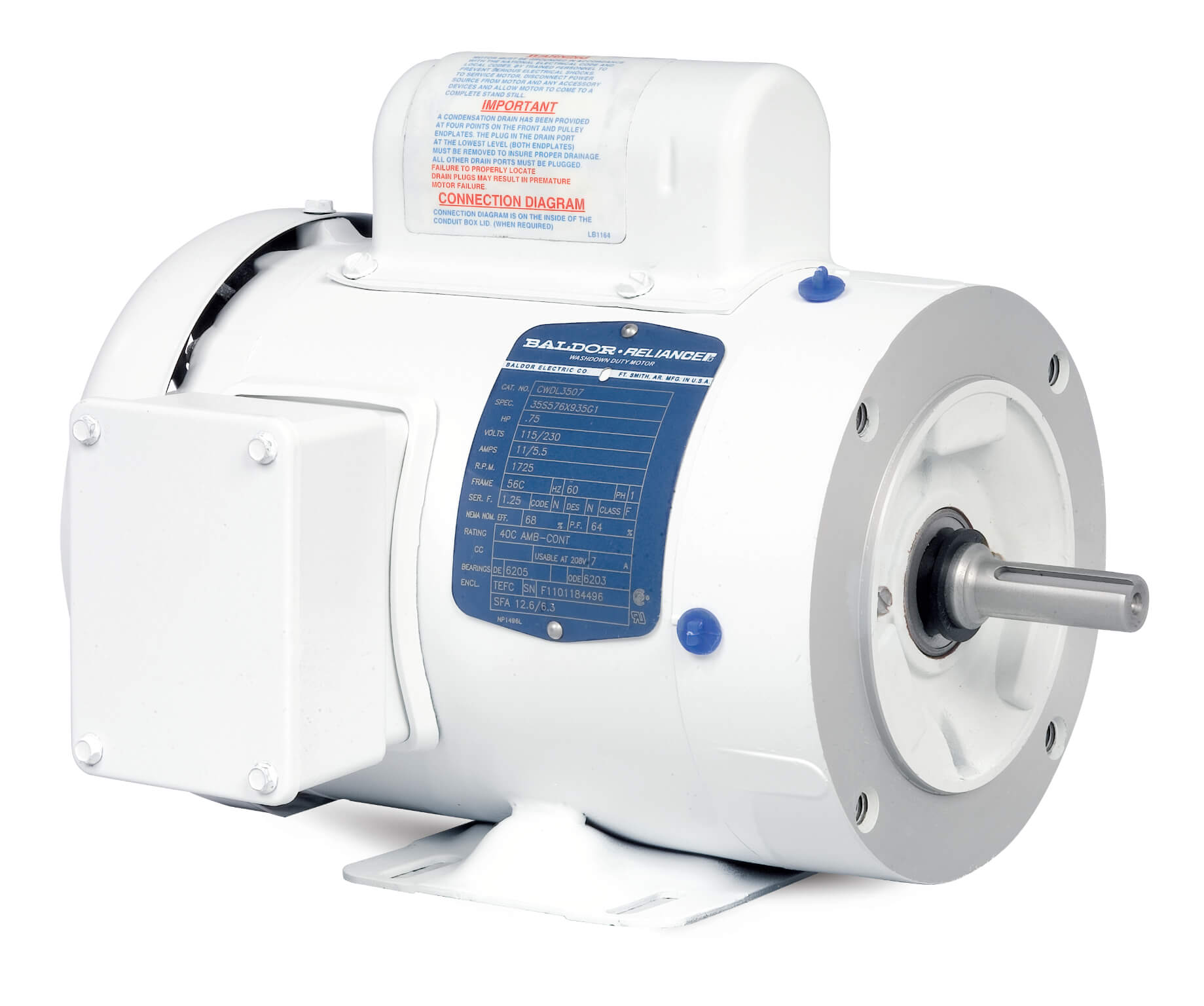

BALDOR MOTOR CWDL3513 White Washdown Motor, 3600 RPM, 1.5 hp, 1 Phase, TEFC, 56C Frame
Get it by Tuesday, Dec 23
€1,366.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 16/8A |
| Amps @ 208v | 8.4A |
| Base | Rigid Base |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 5.4 lbs.-ft. |
| Code | J |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 16/8A |
| Full Load Torque | 2.25 ft.-lbs. |
| Full Load Torque | 2.25 lbs.-ft. |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 4#16 A PH,2#18 B PH |
| Lead | 4#16 A Ph, 2#18 B Ph |
| Line-line Res. @ 25° C | 1.58 ohms A Ph/1.29 ohms B Ph |
| Locked-rotor Torque | 6.4 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting Type | C Face, Foot Mounted |
| Multiplier | WD |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No Load Amps | 3.9A |
| No. Of Motor Leads | 4 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Overall Length | 13.22" |
| Phase | 1 |
| Power Factor | 85 |
| Product Datasheet | baldor-motor-cwdl3513.pdf |
| Proprietary | No |
| Pull-up Torque | 5 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | Z |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 50A |
| Synchronous Rpm | 3600 RPM |
| Temp. Rise @ Rated Load | 80°C |
| Temp. Rise @ S. F. Load | 90°C |
| Type | 3524L |
| Voltage | 115/230V |
| Wire Size | 16 AWG |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 6.4 LB-FT
- Nameplate No.: NP1496L
- Pull-Up Torque: 5 LB-FT
- Starting Current: 50 Amps
Documentation:
Product Variants
| Model | Hp | Nameplate Rpm | Full Load Amps | Service Factor | Type | Overall Length | Power Factor | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CWDL3504 | 1/2 hp | 1740 RPM | 3.5A | 1.25 | 3520L | 12.23" | 70 | 68% | €1,500.91 | |
| CWDL3507 | 3/4 hp | 1725 RPM | 10.6/5.3A | 1.25 | 3524L | 13.22" | 69 | 66% | €1,181.40 | |
| CWDL3509 | 1 hp | 3450 RPM | 11.8/5.9A | 1.25 | 3520L | 12.22" | 82 | 68% | €1,106.61 | |
| CWDL3510 | 1 hp | 1725 RPM | 11.8/5.9A | 1.15 | 3528L | 13.23" | 69 | 70% | €1,357.46 | |
| CWDL3514 | 1 1/2 hp | 1725 RPM | 12.4/6.2A | 1.15 | 3532LC | 14.12" | 98 | 80% | €1,625.37 |
