BALDOR MOTOR CSWDM3541 Paint Free Motor, 208-230/460V, 3600 RPM, 60 Hz, 0.75 hp, 3 Phase, TENV, 56C Frame | AJ6QMF

BALDOR MOTOR CSWDM3541 Paint Free Motor, 208-230/460V, 3600 RPM, 60 Hz, 0.75 hp, 3 Phase, TENV, 56C Frame

Item: AJ6QMFModel: CSWDM3541
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,243.23 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ac/dc AC
Ambient Temp. 40°C
Amps 2.3-2.2/1.1A
Base Rigid Base
Base Indicator Rigid
Base Type Rigid Base
Break-down Torque 7.6 lbs.-ft.
Code N
Conduit Box Material Steel
Conduit Box Position F1
Design Code B
Duty Continuous
Enclosure Design TENV
Finish Unfinished
Frame 56C
Frame Material Stainless Steel
Frame Size 56C
Frequency 60 Hz
Full Load Amps 2.3-2.2/1.1A
Full Load Torque 1.1 ft.-lbs.
Full Load Torque 1.1 lbs.-ft.
Hp 3/4 hp
Insulation Class Class F
Inverter Code Not Inverter
Lead 9#18
Line-line Res. @ 25° C 15.3 ohms A Ph/0 ohms B Ph
Locked-rotor Torque 5.6 lbs.-ft.
Motor Enclosure Design Totally Enclosed Non Ventilated
Mounting Type C Face, Foot Mounted
Multiplier WD
Nameplate Rpm 3450 RPM
Nema/iec NEMA
No Load Amps 0.61A
No. Of Motor Leads 9
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 80%
Overall Length 11.06"
Phase 3
Power Factor 80
Proprietary No
Pull-up Torque 4.1 lbs.-ft.
Pulley Face Code C Face
Revision E
Rpm 3400-3600 RPM
Service Factor 1.25
Shaft Dia. 5/8"
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Start Configuration DOL
Starting Amps 11.7A
Synchronous Rpm 3600 RPM
Temp. Rise @ Rated Load 65°C
Temp. Rise @ S. F. Load 76°C
Type 3518M
Voltage 208-230/460V
Wire Size 18 AWG

Shipping Info:

Ship weight (kg) 16.2
Ship height (cm)28.26
Ship length (cm)41.91
Ship width (cm)29.21
HS code85015100
Country of OriginUS

Product Details:

    • Explosion Proof Class/Group: NONE
    • Locked-Rotor Torque: 5.6 LB-FT
    • Nameplate No.: NP1496L
    • Pull-Up Torque: 4.1 LB-FT
    • Starting Current: 11.7 Amps

Product Variants

ProductModelVoltageHpNameplate RpmFull Load AmpsFrameMotor Mounting TypeInsulation ClassService FactorPrice

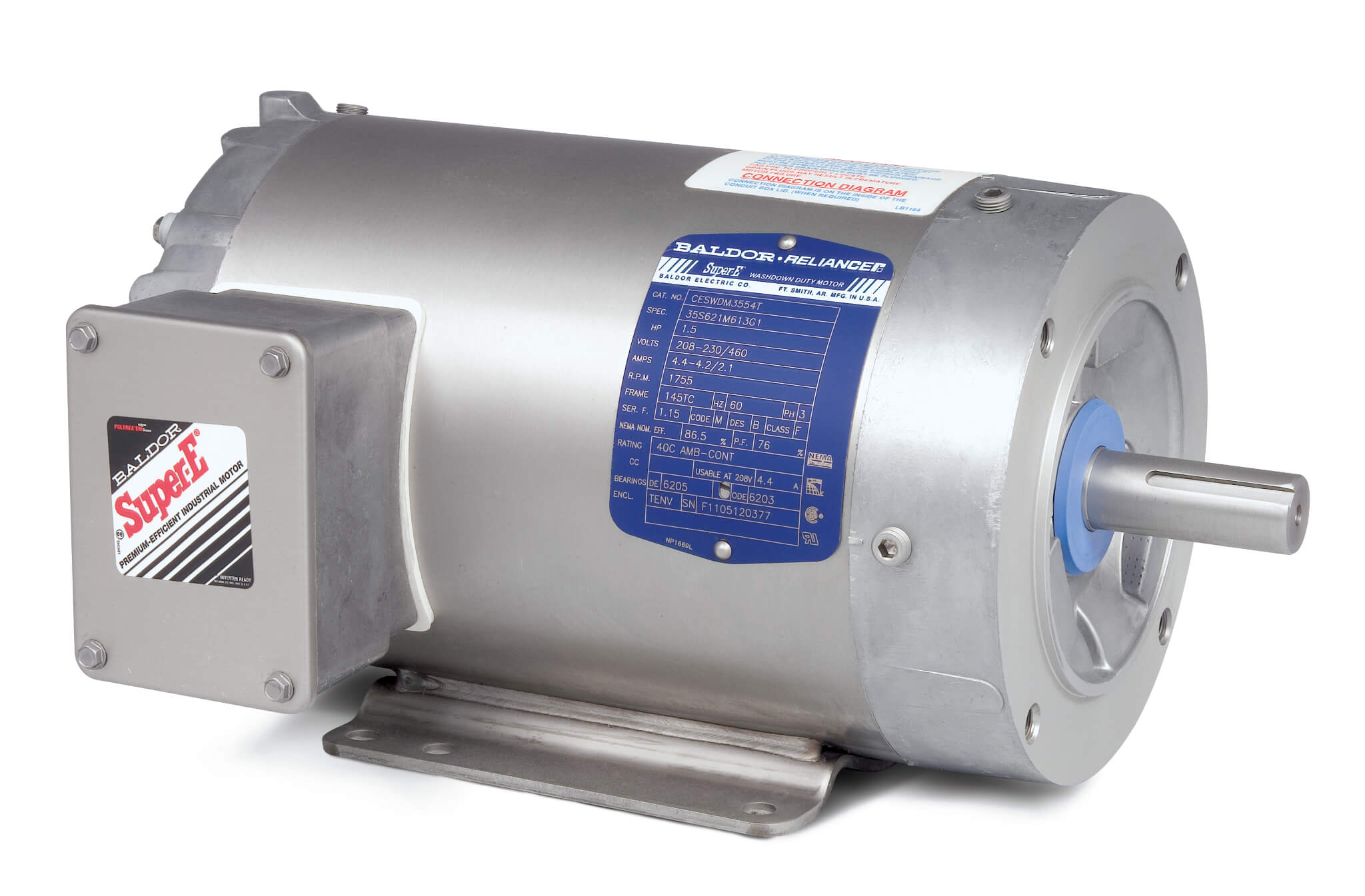

BALDOR MOTOR CESWDM3546 Paint Free Motor, 230/460V, 1800 RPM, 60 Hz, 1 hp, 3 Phase, TENV, 56C Frame | AJ6PYK CESWDM3546208-230/460V1 hp1770 RPM1.7A56CRigid BaseClass F1.15€2,707.89
BALDOR MOTOR CESWDM3546T Paint Free Motor, 230/460V, 1800 RPM, 60 Hz, 1 hp, 3 Phase, TENV, 143TC Frame | AJ6PYL CESWDM3546T208-230/460V1 hp1760 RPM1.5A143TC-Class F1.15€1,823.99
BALDOR MOTOR CESWDM3554 Paint Free Motor, 230/460V, 1800 RPM, 60 Hz, 1.5 hp, 3 Phase, TENV, 56C Frame | AJ6PYM CESWDM3554208-230/460V1 1/2 hp1755/1770 RPM2.1A56C-Class H1€1,902.74
BALDOR MOTOR CESWDM3554T Paint Free Motor, 230/460V, 1800 RPM, 60 Hz, 1.5 hp, 3 Phase, TENV, 145TC Frame | AJ6PYN CESWDM3554T208-230/460V1 1/2 hp1755/1770 RPM4.4-4.2/2.1A145TC-Class H1€1,952.93

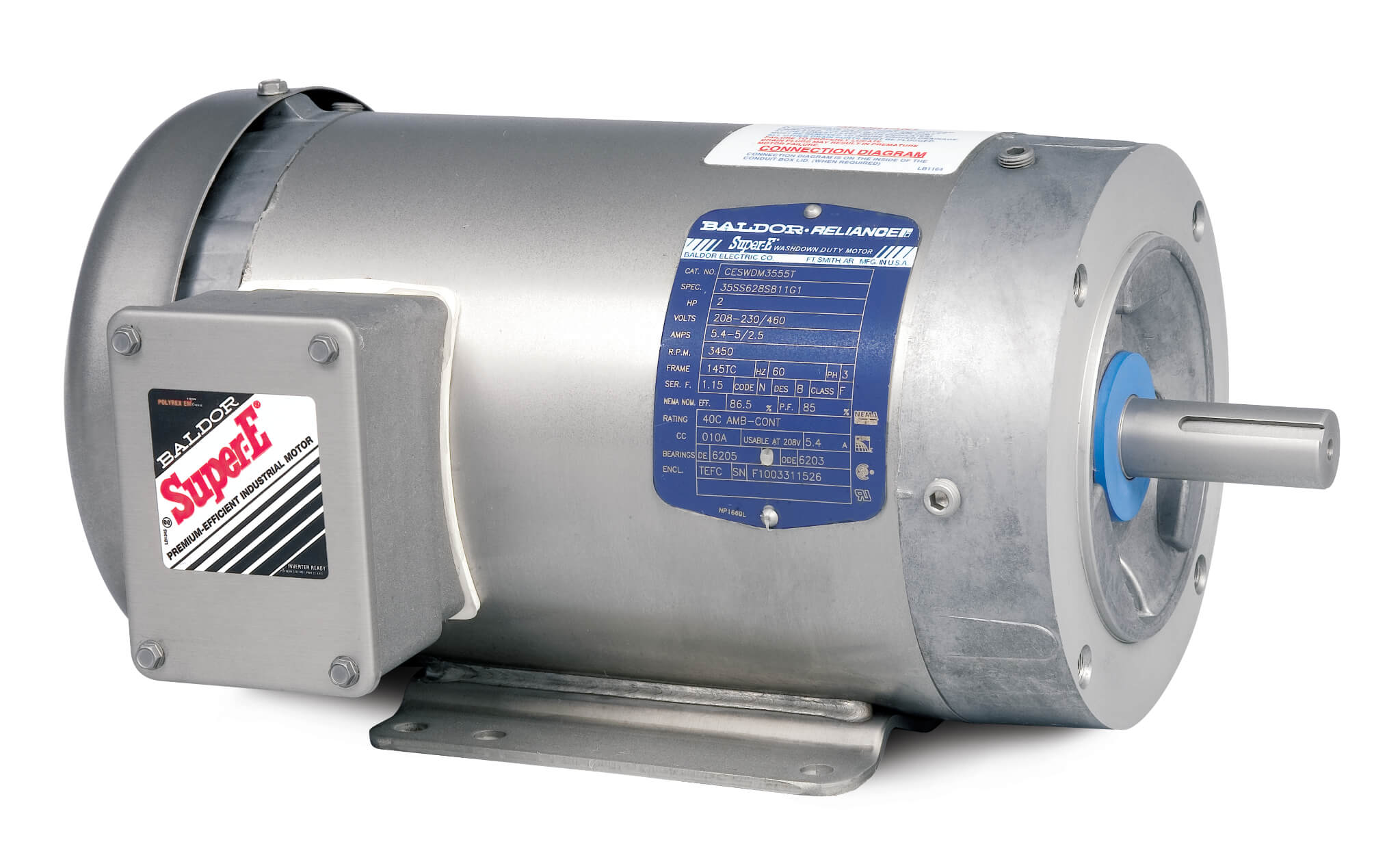

BALDOR MOTOR CESWDM3555T Paint Free Motor, 208-230/460V, 3600 RPM, 60 Hz, 2 hp, 3 Phase, TEFC, 145TC Frame | AJ6PYP CESWDM3555T208-230/460V2 hp3450 RPM5-5.4/2.5A145TC-Class F1.15€2,313.20
BALDOR MOTOR CESWDM3558 Paint Free Motor, 230/460V, 1800 RPM, 60 Hz, 2 hp, 3 Phase, TEFC, 56C Frame | AJ6PYQ CESWDM3558208-230/460V2 hp1750 RPM2.9A56C-Class F1.15€2,251.19
BALDOR MOTOR CESWDM3558T Paint Free Motor, 230/460V, 1800 RPM, 60 Hz, 2 hp, 3 Phase, TEFC, 145TC Frame | AJ6PYR CESWDM3558T208-230/460V2 hp1755 RPM5.6-5.9/2.8A145TC-Class F1.15€2,396.88
