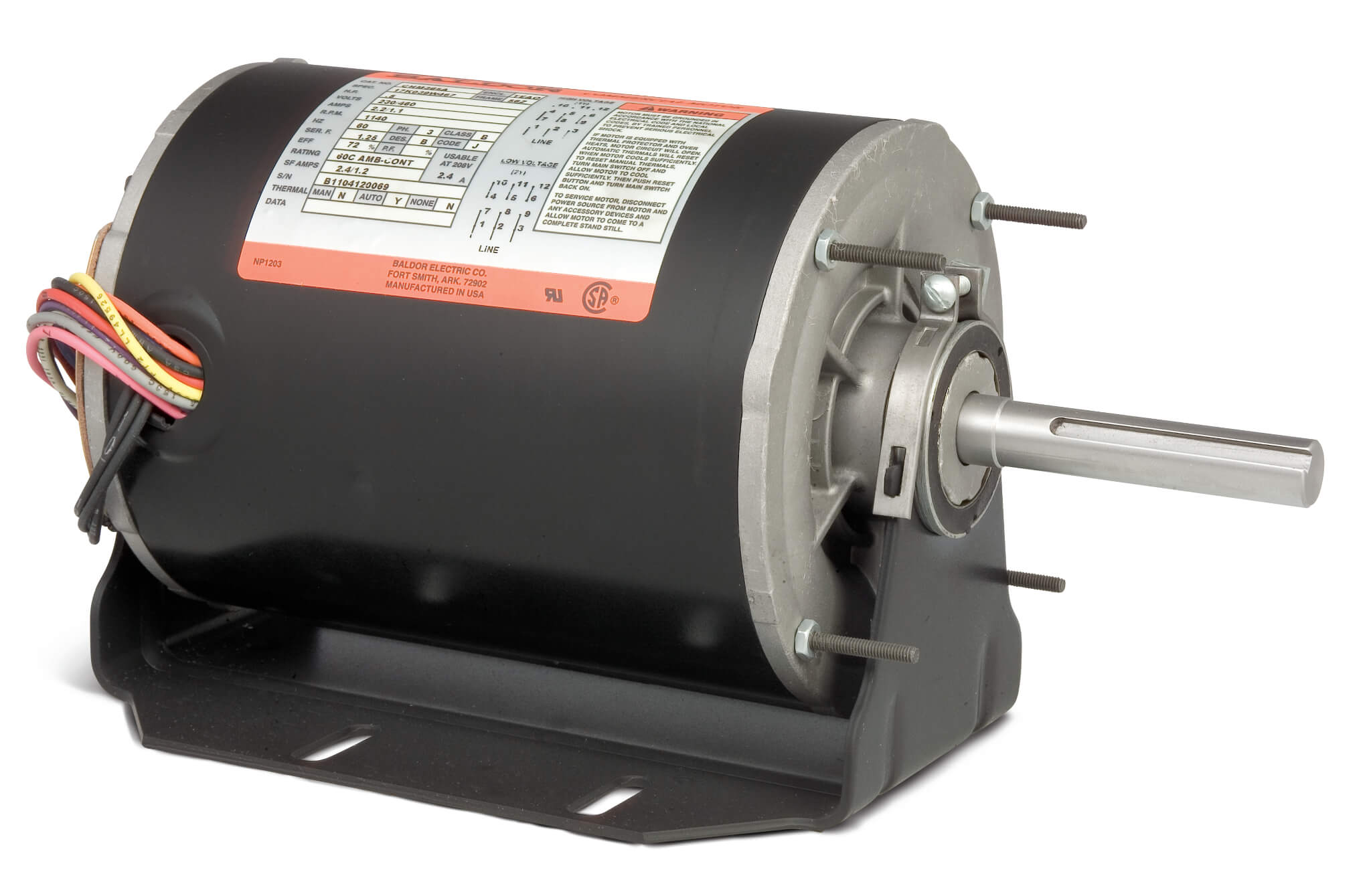

BALDOR MOTOR CHM565A Direct Drive Fan Motor, 230/460V, 1200 RPM, 60 Hz, 1 hp, TEAO, 56 Frame
Get it by Wednesday, Jul 1
€966.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 3.7-3.6/1.8A |
| Auto | Yes |
| Base Indicator | Resilient |
| Base Type | Resilient |
| Break Down Torque | 15.2 lbs.-ft. |
| Capacitor Required | No |
| Class | Stock |
| Code | K |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 74% |
| Enclosure Design | TEAO |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.7-3.6/1.8A |
| Full Load Efficiency | 74% |
| Full Load Torque | 4.47 ft.-lbs. |
| Full Load Torque | 4.47 lbs.-ft. |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 12#18 |
| Line-line Res. @ 25°c | 21.05 ohms A Ph/0 ohms B Ph |
| Locked Rotor Torque | 12 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Three Phase |
| Mounting Type | Extended Studs, Resilient Base |
| Multiplier | C1 |
| Nameplate Speed | 1140 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.23A |
| No. Of Motor Leads | 12 |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Overall Length | 12.41" |
| Phase | 3 |
| Power Factor | 64 |
| Product Datasheet | baldor-motor-chm565a.pdf |
| Proprietary | No |
| Pull Up Torque | 10.1 lbs.-ft. |
| Pulley Face Code | Resilient Mount |
| Revision | J |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1100-1200 RPM |
| Start Configuration | DOL |
| Starting Amps | 9.98A |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 37°C |
| Temp. Rise @ Rated Load | 32°C |
| Temp. Rise @ S. F. Load | 37°C |
| Thermal Protection | Automatic |
| Type | 1924M |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Locked-Rotor Torque: 12 LB-FT
- Nameplate No.: NP1986A
- Pull-Up Torque: 10.1 LB-FT
- Starting Current: 9.98 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Frame | Shaft Dia. | Phase | Insulation Class | Capacitor Required | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CHC144A | 115/230V | 1/4 hp | 48Z | 1/2" | 1 | Class B | Yes | 3/1.5A | €549.14 | |
| CHC164A | 115/230V | 1/4 hp | 48Z | 1/2" | 1 | Class B | Yes | 3.2/1.6A | €638.58 | |
| CHC244A | 115/230V | 1/3 hp | 48Z | 1/2" | 1 | Class B | Yes | 4.2/2.1A | €612.61 | |
| CHC264A | 115/230V | 1/3 hp | 48Z | 1/2" | 1 | Class B | Yes | 4/2A | €739.56 | |
| CHC3526A | 115/230V | 1/2 hp | 56Z | 5/8" | 1 | Class F | Yes | 9.2/4.6A | €1,264.49 | |
| CHC365A | 115/230V | 1/2 hp | 56YZ | 5/8" | 1 | Class B | Yes | 6.4/3.2A | €798.23 | |
| CHC445A | 115/230V | 3/4 hp | 56YZ | 5/8" | 1 | Class B | Yes | 7.2/3.6A | €790.52 |
