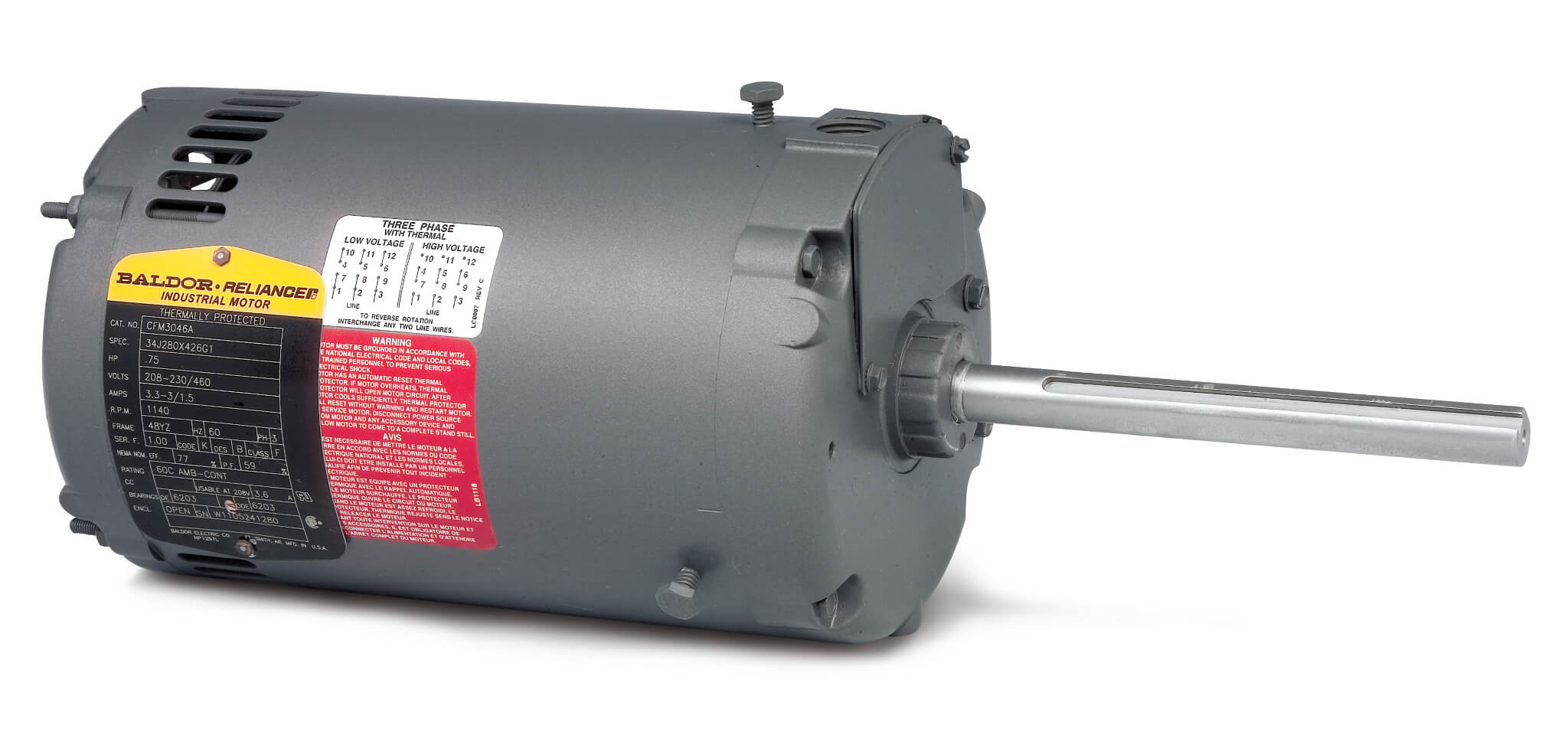

BALDOR MOTOR CFM3136A Condensor Fan Motor, 208-230/460V, 1200 RPM, 60 Hz, 0.5 hp, ODP, 56YZ Frame
Get it by Thursday, Dec 18
€913.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ac/dc | AC |
| Ambient Temp. | 60°C |
| Amps | 2.5-2.4/1.2A |
| Amps @ 208v | 2.5A |
| Base Type | Footless |
| Bearing Type | Ball |
| Break-down Torque | 9.25 lbs.-ft. |
| Class | Stock |
| Code | L |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | Open |
| Enclosure Type | Open Dripproof |
| Frame | 56YZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Torque | 2.33 lbs.-ft. |
| Full Load Torque | 2.33 ft.-lbs. |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 12#18 |
| Line-line Res. @ 25° C | 35.4 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 7.01 lbs.-ft. |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Belly Band |
| Motor Type | Three Phase |
| Mounting Type | Belly Band |
| Multiplier | K |
| Nema/iec | NEMA |
| No Load Amps | 1.11A |
| No. Of Motor Leads | 12 |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Overall Length | 15.3" |
| Phase | 3 |
| Power Factor | 54 |
| Product Datasheet | baldor-motor-cfm3136a.pdf |
| Proprietary | No |
| Pull-up Torque | 6.59 lbs.-ft. |
| Pulley Face Code | Resilient Mount |
| Revision | M |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 6.58A |
| Synchronous Rpm | 1200 RPM |
| Thermal Protection | Automatic |
| Type | 3516M |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 7.01 LB-FT
- Nameplate No.: NP1257L
- Pull-Up Torque: 6.59 LB-FT
- Starting Current: 6.58 Amps
Documentation:
Product Variants
| Model | Hp | Frame | Insulation Class | Shaft Dia. | Bearing Type | Power Factor | Base Type | Conduit Box Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CFM3036A | 1/2 hp | 48YZ | Class B | 1/2" | Ball | 55 | Footless | F1 | €882.26 | |
| CFM3046A | 3/4 hp | 48YZ | Class B | 5/8" | Ball | 59 | Rigid Base | F3 | €957.04 | |
| CFM3146A | 3/4 hp | 56YZ | Class F | 5/8" | Ball | 67 | Footless | F1 | €986.40 | |
| CFM3156A | 1 hp | 56YZ | Class F | 5/8" | Ball | 69 | Footless | F1 | €1,125.54 | |
| CFM3166A | 1 1/2 hp | 56YZ | Class F | 5/8" | Sealed | 72 | Footless | F1 | €1,682.80 | |

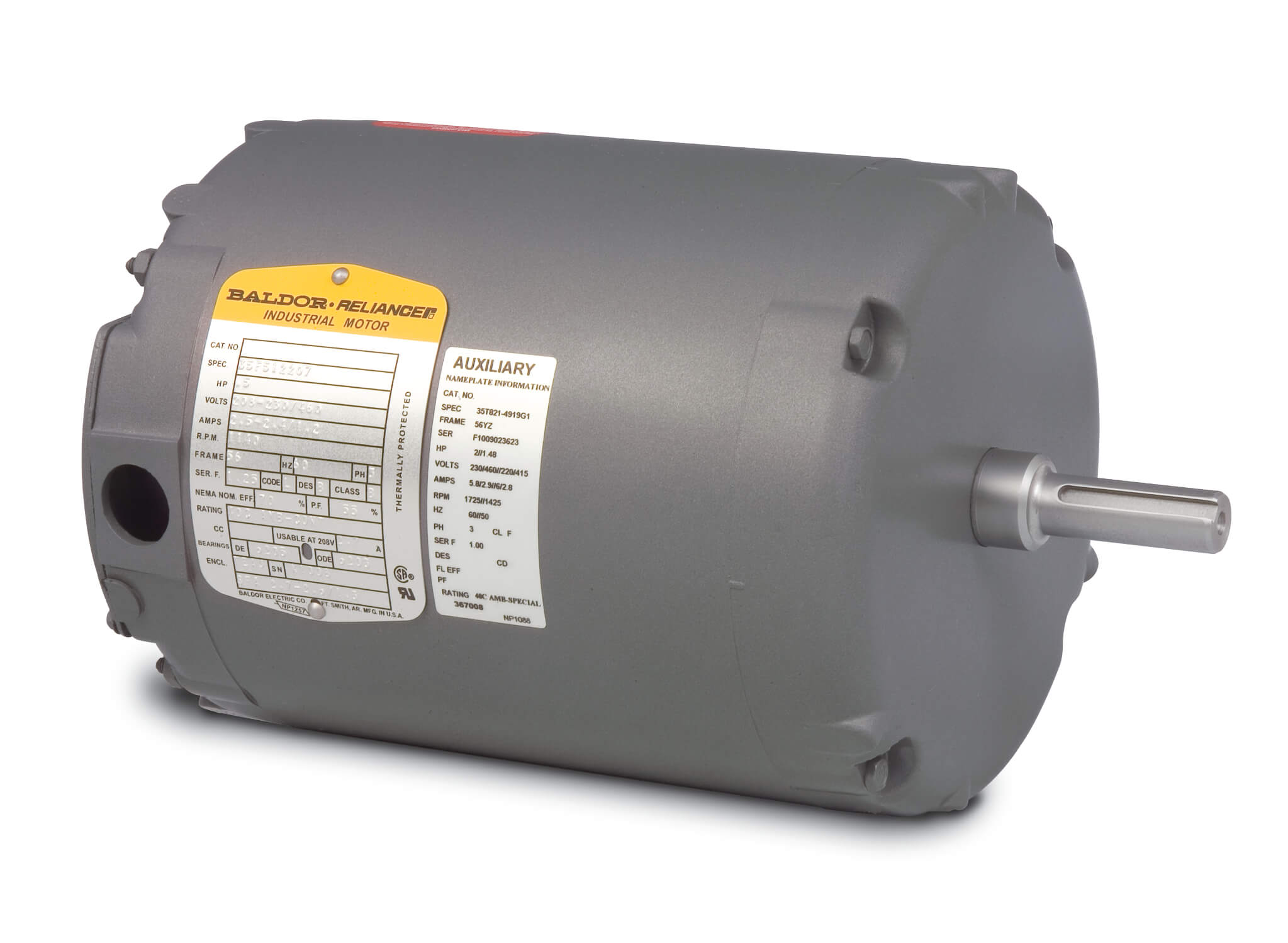

| M3539-TP | 1/2 hp | 56 | Class F | 5/8" | Ball | 55 | Footless | F1 | €974.07 |
