BALDOR MOTOR CEWDBM3615T Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 5 hp, 3 Phase, TEFC, 184TC Frame | AJ6PZX

BALDOR MOTOR CEWDBM3615T Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 5 hp, 3 Phase, TEFC, 184TC Frame

Item: AJ6PZXModel: CEWDBM3615T
Check Availability
In Stock

Get it by Tuesday, Aug 18

€5,837.86 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ac/dc AC
Ambient Temp. 40°C
Amps 13.9-13.4/6.7A
Amps @ 208v 13.9A
Base Rigid Base
Base Indicator Rigid
Base Type Rigid Base
Break Down Torque 52.2 lbs.-ft.
Code J
Color White
Conduit Box Material Steel
Conduit Box Position F1
Design Code B
Duty Continuous
Enclosure Design TEFC
Finish Epoxy Coating
Frame 184TC
Frame Material Steel
Frame Size 184TC
Frequency 60 Hz
Full Load Amps 13.9-13.4/6.7A
Full Load Torque 14.9 ft.-lbs.
Full Load Torque 14.9 lbs.-ft.
Hp 5 hp
Insulation Class Class F
Inverter Code Inverter Ready
Lead 9#16
Line-line Res. @ 25°c 2.31 ohms A Ph/0 ohms B Ph
Locked Rotor Torque 34.9 lbs.-ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting Type C Face, Foot Mounted
Multiplier WD
Nameplate Speed 1750 RPM
Nema/iec NEMA
No Load Amps 3.24A
No. Of Motor Leads 9
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 89.5%
Overall Length 23.27"
Phase 3
Power Factor 78
Proprietary No
Pull Up Torque 31.5 lbs.-ft.
Pulley Face Code C Face
Revision D
Service Factor 1.15
Shaft Dia. 1 1/8"
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1700-1800 RPM
Start Configuration DOL
Starting Amps 49.1A
Synchronous Speed 1800 RPM
Temp. Rise @ Rated Load 71°C
Temp. Rise @ S. F. Load 87°C
Type 3642M
Voltage 208-230/460V
Wire Size 16 AWG
Xp Class And Group None

Shipping Info:

Ship weight (kg) 49.5
Ship height (cm)41.28
Ship length (cm)67.63
Ship width (cm)42.23
HS code85015220
Country of OriginUS

Product Details:

    • Explosion Proof Class/Group: NONE
    • Locked-Rotor Torque: 34.9 LB-FT
    • Nameplate No.: NP1669L
    • Pull-Up Torque: 31.5 LB-FT
    • Starting Current: 49.1 Amps

Product Variants

ProductModelVoltageHpShaft Dia.Full Load AmpsNameplate SpeedNominal EfficiencyTypeAmpsPrice

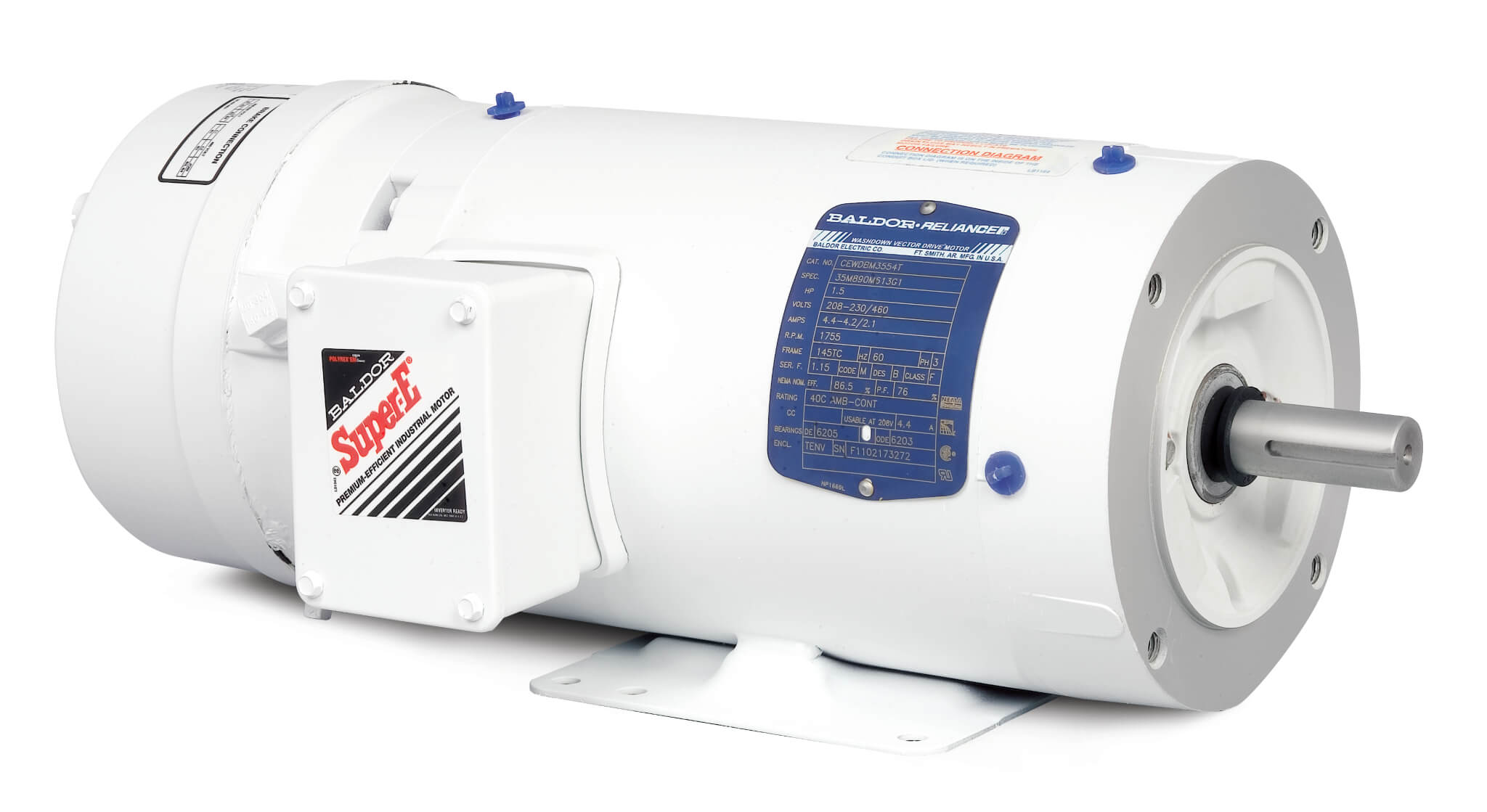

BALDOR MOTOR CEWDBM3538 Washdown Motor, 208-230/460V, 1800 RPM, 60 Hz, 0.5 hp, 3 Phase, TENV, 56C Frame | AJ6PZP CEWDBM3538208-230/460V1/2 hp5/8"1.9-1.8/0.9A1765/1770 RPM84%3516M1.9-1.8/0.9A€3,251.66
BALDOR MOTOR CEWDBM3542 Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 0.75 hp, 3 Phase, TENC, 56C Frame | AJ6PZQ CEWDBM3542230/460V3/4 hp5/8"2.28/1.14A1750/1765 RPM84%3517M2.28/1.14A€3,513.90
BALDOR MOTOR CEWDBM3546 Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 1 hp, 3 Phase, TENV, 56C Frame | AJ6PZR CEWDBM3546208-230/460V1 hp5/8"3-2.9/1.45A1770 RPM85.5%3524M3-2.9/1.45A€3,606.66
BALDOR MOTOR CEWDBM3546T Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 1 hp, 3 Phase, TENV, 143TC Frame | AJ6PZT CEWDBM3546T208-230/460V1 hp7/8"3-2.9/1.45A1745/1770 RPM85.5%3524M3-2.9/1.45A€3,536.61
BALDOR MOTOR CEWDBM3554T Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 1.5 hp, 3 Phase, TENV, 145TC Frame | AJ6PZU CEWDBM3554T208-230/460V1 1/2 hp7/8"4.4-4.2/2.1A1755/1770 RPM86.5%3533M4.4-4.2/2.1A€3,924.73
BALDOR MOTOR CEWDBM3558T Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 2 hp, 3 Phase, TEFC, 145TC Frame | AJ6PZV CEWDBM3558T208-230/460V2 hp7/8"6-5.8/2.9A1755/1760 RPM86.5%3530M6-5.8/2.9A€3,993.83
BALDOR MOTOR CEWDBM3611T Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 3 hp, 3 Phase, TEFC, 182TC Frame | AJ6PZW CEWDBM3611T208-230/460V3 hp1 1/8"9-8.4/4.2A1760 RPM89.5%3631M9-8.4/4.2A€4,832.55
