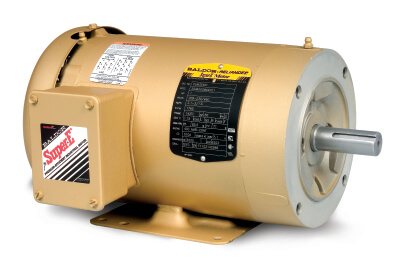

BALDOR MOTOR CENM3546 Three Phase Enclosed Motor, 230/460V, 1800 RPM, 60 Hz, 1 hp, TENV, 56C Frame
Get it by Tuesday, Sep 1
€1,193.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps | 3.1A @ 208V, 3A @ 230V, 1.5A @ 460V |
| Amps @ Voltage | 1.5A @ 460V, 3A @ 230V, 3.1A @ 208V |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Blower | None |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 85.5% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TENV |
| Feedback Device | NO FEEDBACK |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Frequency | 60.00 Hz |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Full Load Amps | 1.5A |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 1.5A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Kva Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 9 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3520M |
| Mounting Type | C Face, Foot Mounted |
| Nameplate Speed | 1800 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output Frequency | 1 hp @ 60 Hz |
| Overall Length | 12.06" |
| Phase | 3 |
| Power Factor | 66 |
| Product Datasheet | baldor-motor-cenm3546.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | Not Available |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1700-1800 RPM , 1760 RPM |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Synchronous Speed @ Hz | 1800 RPM @ 60 Hz |
| Thermal Device - Bearing | None |
| Thermal Device-winding | Normally Closed Thermostat |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230/460V |
| Voltage @ Frequency | 460V @ 60 Hz, 230V @ 60 Hz |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| Xp Class And Group | None |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - CNM3546
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 85.50%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Inverter ready
- KVA Code: L
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.625 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
