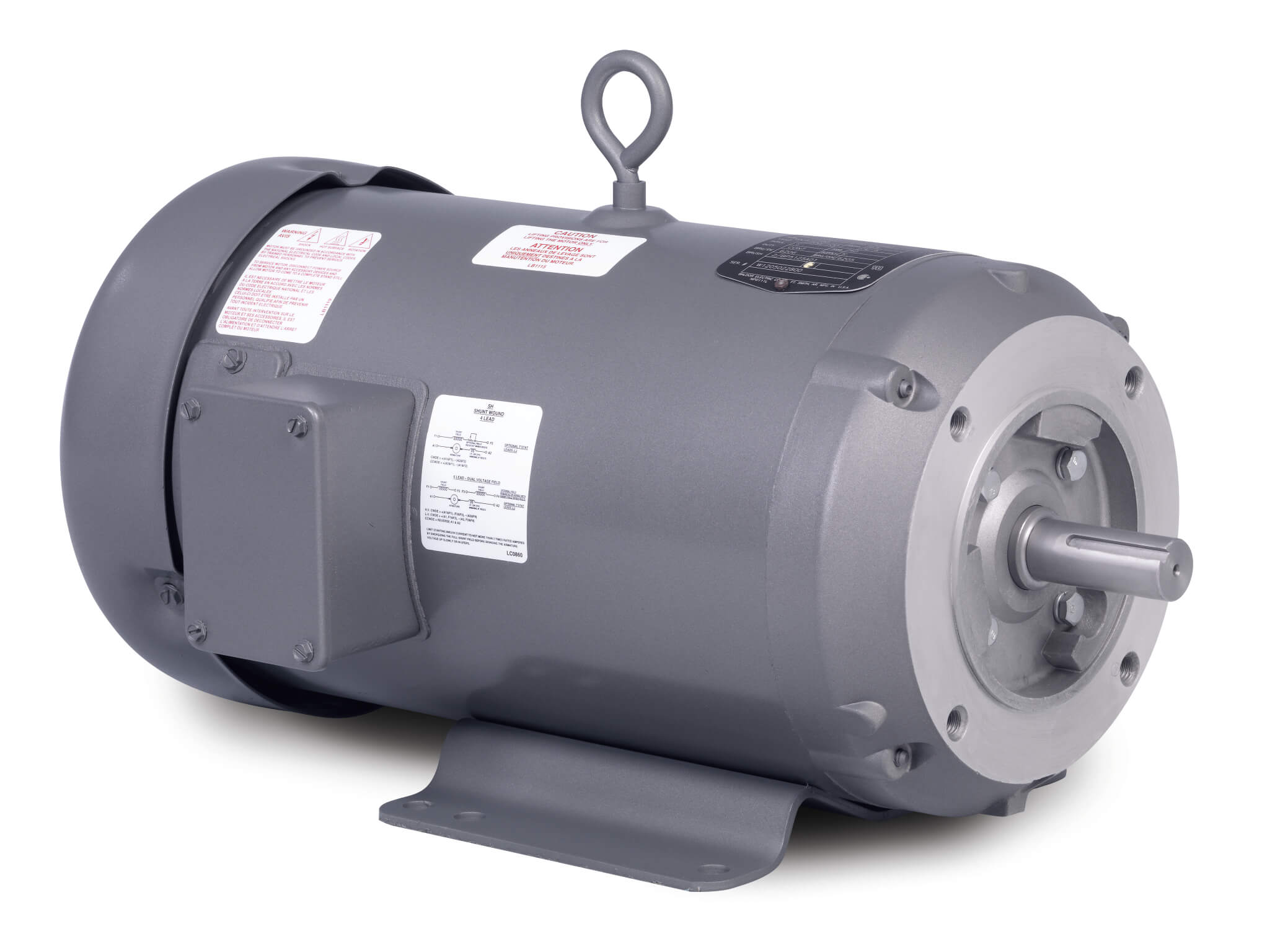

BALDOR MOTOR CD6215 SCR Drive Motor, 200/100V, 1750 RPM, 1.5 hp, TEFC, 182C Frame
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Ac/dc | DC |
| Ambient Temp. | 40°C |
| Armature Amps | 7.5A |
| Armature Inertia | 30.342 lbs.-sq. ft. |
| Armature Voltage | 180V |
| Base | Rigid Base |
| Base Indicator | Rigid |
| Base Rpm | 1750 RPM |
| Base Type | Rigid Base |
| Brushes | 2/BP5125A01 |
| Class | Stock |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Field Amps | 0.25/0.5A |
| Field Voltage | 100/200V |
| Field Winding Type | Shunt |
| Frame | 184C |
| Frame Material | Steel |
| Frame Size | 184C |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Motor Mounting Position | Horizontal |
| Motor Type | Brushed DC |
| Multiplier | L1 |
| Nema/iec | NEMA |
| No. Of Poles | 2 |
| Overall Length | 17.41" |
| Product Datasheet | baldor-motor-cd6215.pdf |
| Proprietary | No |
| Revision | T |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Type | 3636D |
| Voltage | 180V |
Shipping Info:
| Ship weight (kg) | 36.45 |
| Ship height (cm) | 32.55 |
| Ship length (cm) | 58.1 |
| Ship width (cm) | 31.12 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Nameplate No.: NP0111L
Documentation:
Product Variants
| Model | Voltage | Hp | Frame | Insulation Class | Motor Type | Armature Amps | Conduit Box Position | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CD3434 | 180V | 1 hp, 3 hp | 56C | Class F | Brushed DC | 1.9A | F3 | SH3413D | €1,226.84 | |
| CD3450 | 90V | 1/2 hp | 56C | Class F | DC | 5.2A | F3 | 3420D | €1,455.84 | |
| CD3451 | 180V | 1/2 hp | 56C | Class F | Brushed DC | 2.6A | F3 | 3420D | €1,395.34 | |
| CD3475 | 90V | 3/4 hp | 56C | Class F | Brushed DC | 7.8A | F3 | 3428D | €1,735.17 | |
| CD3476 | 180V | 3/4 hp | 56C | Class F | Brushed DC | 3.9A | F3 | 3428D | €1,735.17 | |
| CD5318 | 180V | 1 hp | 56C | Class F | Brushed DC | 5A | F1 | SH3535D | €2,448.93 | |
| CD5319 | 90V | 1 hp | 56C | Class F | Brushed DC | 10A | F1 | SH3535D | €2,448.93 |
