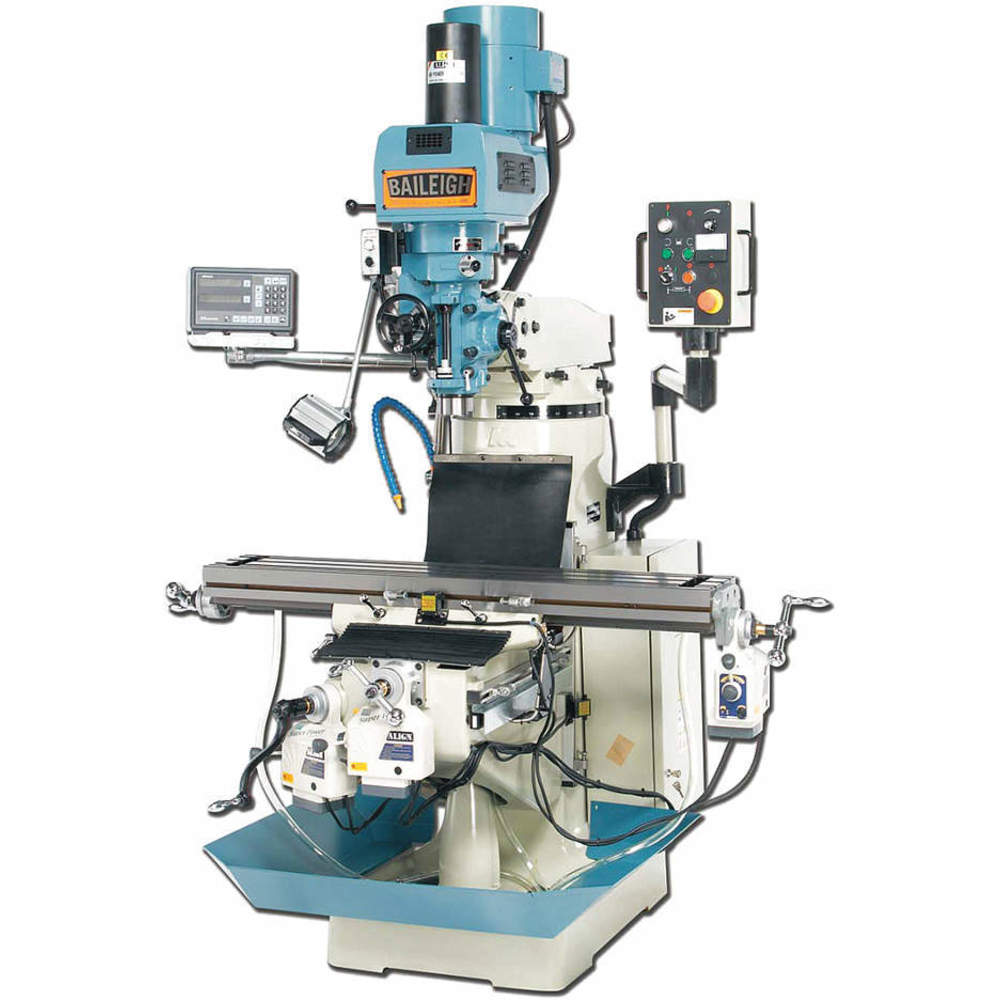

BAILEIGH INDUSTRIAL BA9-1008232 VM-949-1 Knee/Column Milling Machine, 9 Inch Table Length, 49 Inch Table Width, 3 HP, 1 Phase, 220V
Get it by Wednesday, Dec 24
10.00% off
€32,422.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Machine |
| Backward Head Tilt Adjustment | 45° |
| Digital Readout Included | Mitutoyo |
| Drawbar Style | Air Powered |
| Forward Head Tilt | 45° |
| Head Swivel - Left | 90° |
| Head Swivel - Right | 90° |
| Head Tilt - Backward | 45° |
| Included Powerfeeds | X-Axis Powerfeed, Y-Axis Powerfeed, Z-Axis Powerfeed |
| Includes | Air Draw Bar, Coolant System With Catch Tray |
| Includes Digital Readout | Digital Readout Included |
| Left-hand Head Tilt | 90° |
| Length | 60" |
| Longitudinal Travel | 12" |
| Longitudinal Travel - Maximum | 12" |
| Max. Spindle Speed | 4200 RPM |
| Max. Spindle To Column Distance | 20.984" |
| Max. Spindle To Table Distance | 18.219" |
| Min. Spindle Speed | 60 RPM |
| Min. Spindle To Column Distance | 8 3/8" |
| Motor Hp | 3 hp |
| Number Of Spindle Speeds | Variable |
| Number Of T-slots | 3 |
| Overall Depth | 60" |
| Overall Height | 83" |
| Overall Width | 60" |
| Phase | 1 |
| Quill Dia. | 3 3/8" |
| Ram Travel - Maximum | 5/8" |
| Ram Travel Length | 0.632" |
| Right-hand Head Tilt | 90° |
| Series | VM-949 Series |
| Spindle Taper | NT40 |
| Spindle Taper Size | RP_NST40 |
| Spindle Travel - Maximum | 5" |
| Spindle Travel Length | 5" |
| Spindle-to-column Distance - Maximum | 21" |
| Spindle-to-table Distance | 18 1/4" |
| T-slot Width | 5/8" |
| Table Depth | 9" |
| Table Length | 9" |
| Table Load Capacity | 440 lbs. |
| Table Width | 49" |
| Voltage | 220V |
Shipping Info:
| Ship weight (kg) | 1080 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | Phase | Table Width | Table Load Capacity | Spindle Taper Size | Motor Hp | Min. Spindle Speed | Max. Spindle Speed | Longitudinal Travel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

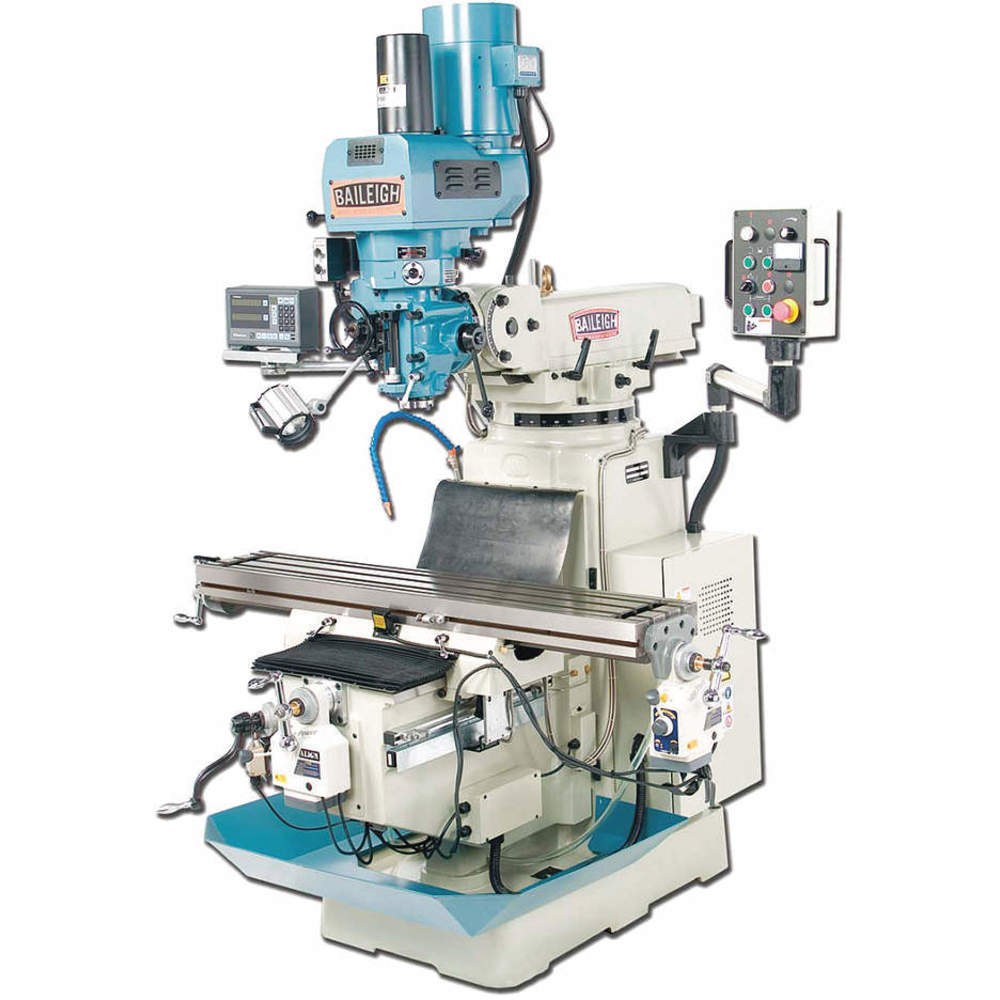

BA9-1008136 | 3 | 54" | 550 lbs. | RP_NT40 | 3 hp | 80 RPM | 3800 RPM | 15 3/4" | €44,542.14 | |
 |

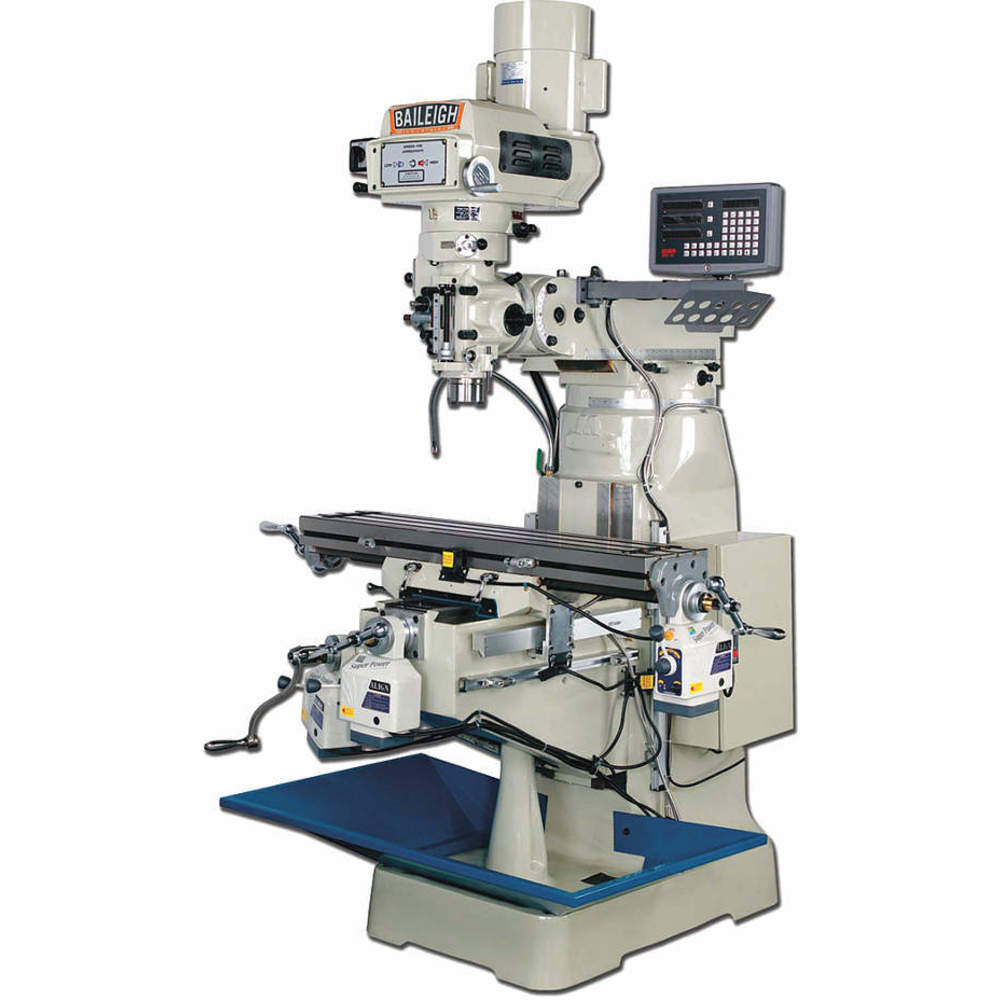

BA9-1008192 | 1 | 42" | 770 lbs. | RP_NST40 | 3 hp | 80 RPM | 4200 RPM | 12" | €30,925.31 | |
 |
BA9-1008236 | 3 | 49" | 440 lbs. | RP_NST40 | 3 hp | 60 RPM | 4200 RPM | 12" | €37,062.78 | |
 |

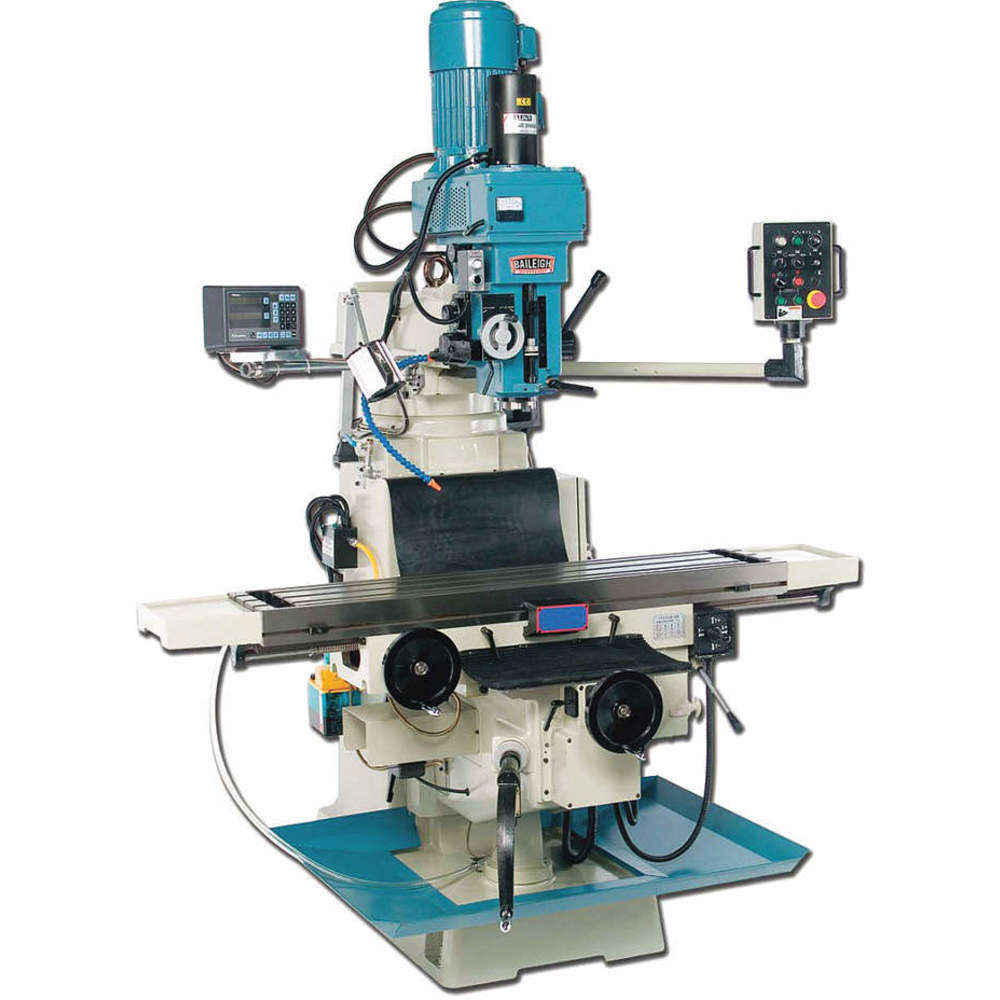

BA9-1008169 | 3 | 58" | 770 lbs. | RP_NT40 | 5 hp | 80 RPM | 3800 RPM | 15 3/4" | €65,304.80 |
