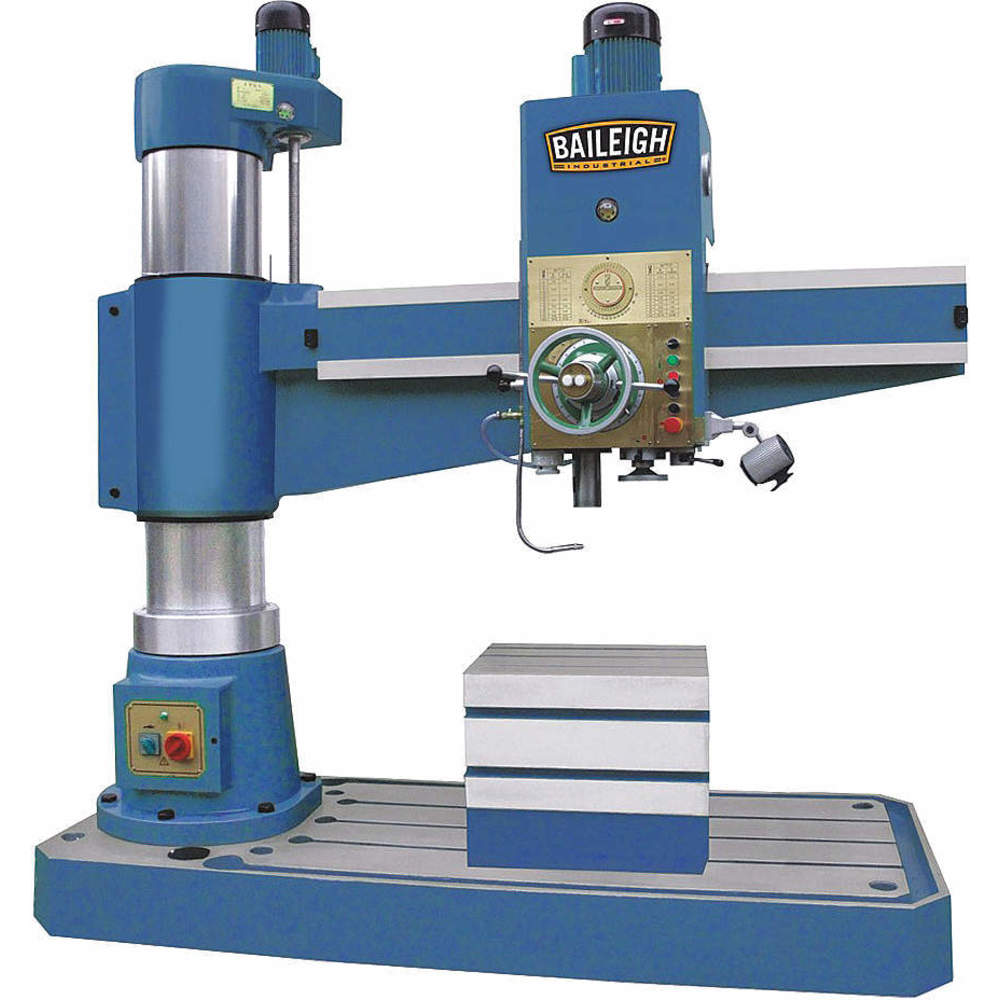

BAILEIGH INDUSTRIAL BA9-1008486 RD-1600H Radial Floor Drill Press, 17 1/8 Inch Size, Geared Head, Variable, 220V AC
Get it by Wednesday, Dec 24
10.00% off
€38,294.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Radial Floor Drill Press |
| Amps | 16A |
| Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Base Height | 7 3/4" |
| Base Length | 94 3/8" |
| Base Width | 39 1/4" |
| Chuck Capacity | 5/8" |
| Chuck Size | 5/8" |
| Chuck Style | Machine Taper |
| Column Dia. | 13.6875" |
| Coolant System | Yes |
| Drill Press Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Drill Press Type | Floor Stand |
| Drilling Capacity In Cast Iron | 2" |
| Drilling Capacity In Steel | 2" |
| Drive Type | Geared Head |
| Guard Included | Yes |
| Hp | 5 1/4 hp |
| Max. Overall Height | 100" |
| Max. Spindle Speed | 2000 RPM |
| Maximum Spindle To Base Height | 48" |
| Maximum Spindle To Table Height | 48" |
| Min. Spindle Speed | 25 RPM |
| Number Of Pieces | 1 |
| Number Of Speeds | Variable |
| Number Of Spindle Speeds | Variable |
| Phase | 3 |
| Power Downfeed Included | Yes |
| Power Source | Corded |
| Primary Material Application | Metal |
| Radial Arm | Yes |
| Radial Arm Length | 17 1/8" |
| Speed Control | Variable |
| Speed Control Type | Gear Head |
| Spindle Taper | 5MT |
| Spindle To Column Distance | 13 3/4" to 63" |
| Spindle Travel | 12.406" |
| Table Length | 24 3/4" |
| Table Shape | Box |
| Table Slot | Yes |
| Table Width | 19 1/2" |
| Tapping Compatible | Yes |
| Tool Weight | 9500 lbs. |
| Voltage | 220V AC |
Shipping Info:
| Ship weight (kg) | 4275 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 114.3 |
| Country of Origin | CN |
Product Variants
| Product | Model | Amps | Spindle To Column Distance | Hp | Drilling Capacity In Steel | Spindle Travel | Column Dia. | Spindle Taper | Base Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BA9-1008487 | 11.5A | 7 3/4" to 39 1/4" | 4 hp | 1 1/2" | 9.812" | 9.438" | 4MT | 20" | €21,736.94 |
