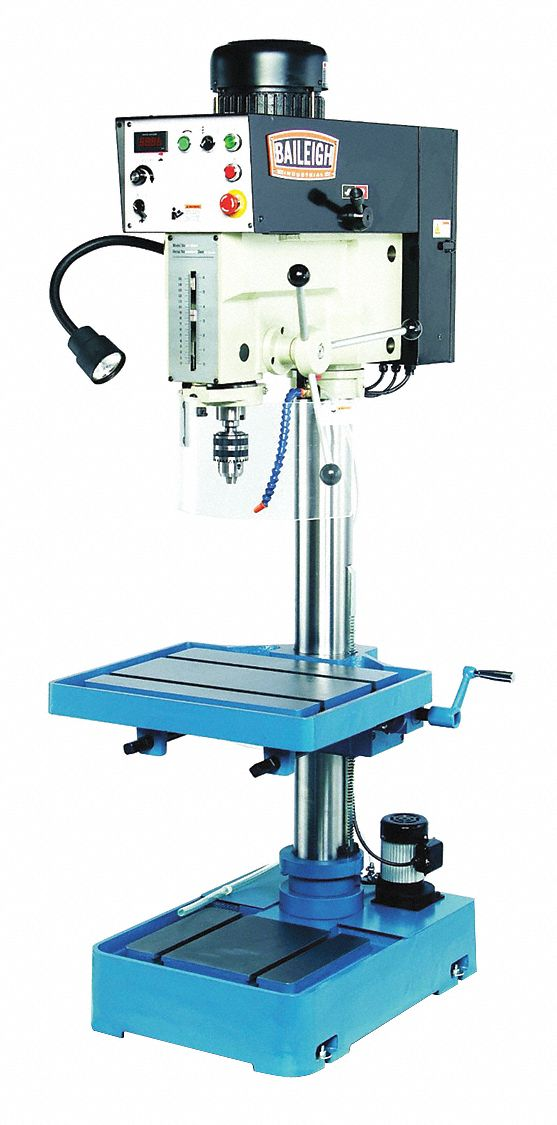

BAILEIGH INDUSTRIAL BA9-1002871 DP-1250VS-HS Floor Drill Press, Belt, Variable, 85 RPM 4000 RPM, 230 VAC /SinglePhase
Get it by Tuesday, Dec 23
10.00% off
€9,421.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Floor Drill Press |
| Amps | 7A |
| Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Base Length | 27" |
| Base Width | 19" |
| Chuck Size | 5/8" |
| Chuck Style | Machine Taper |
| Column Dia. | 4 1/2" |
| Coolant System | Yes |
| Drill Press Application | Boring, Countersinking, Drilling, Milling, Reaming, Tapping |
| Drill Press Type | Floor Stand |
| Drilling Capacity In Cast Iron | 1 3/4" |
| Drilling Capacity In Steel | 1 1/2" |
| Drive Type | Belt |
| Guard Included | Yes |
| Hp | 2 hp |
| Includes | Auto-Reversing Tapping Feature |
| Max. Overall Height | 83" |
| Max. Spindle Speed | 4000 RPM |
| Maximum Spindle To Base Height | 48.812" |
| Maximum Spindle To Table Height | 36.406" |
| Maximum Spindle-to-base Height | 48 13/16" |
| Maximum Spindle-to-table Height | 36 13/32" |
| Minimum Spindle Speed | 85 RPM |
| Motor Voltage | 230V AC |
| Number Of Pieces | 2 |
| Number Of Speeds | Variable |
| Number Of Spindle Speeds | Variable |
| Phase | 1 |
| Power Downfeed Included | No |
| Power Source | Corded |
| Primary Material Application | Metal |
| Quill Dia. | 2.953" |
| Quill Diameter | 2 61/64" |
| Radial Arm | No |
| Reversible | Yes |
| Speed Control | Variable |
| Speed Control Type | AC Inverter |
| Spindle Speed | 85-540/540-4000 RPM |
| Spindle Speed Range | 85-4000 RPM |
| Spindle Taper | 4MT |
| Spindle To Column Distance | 10.438" |
| Spindle Travel | 5.906" |
| Spindle-to-column Distance | 10 7/16" |
| Swing | 20 7/8" |
| Table Shape | Rectangular |
| Table Slot | Yes |
| Tapping Capacity In Steel | 3/4" |
| Tapping Compatible | Yes |
| Tool Weight | 865 lbs. |
| Voltage | 220V AC |
Shipping Info:
| Ship weight (kg) | 338.4 |
| Ship height (cm) | 200.66 |
| Ship length (cm) | 152.4 |
| Ship width (cm) | 111.76 |
| Country of Origin | TW |
Product Variants
| Product | Model | Voltage | Phase | Drive Type | Swing | Hp | Drilling Capacity In Steel | Spindle Travel | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BA9-1002862 | 220V AC | 1 | Belt | 16" | 2 hp | 1" | 5.312" | 7A | €6,636.18 | |
 |

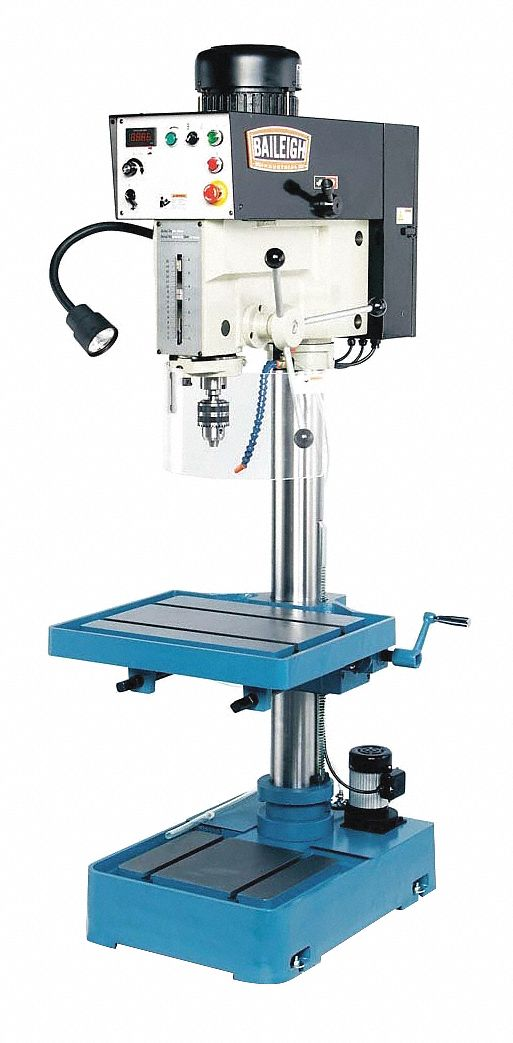

BA9-1002869 | 220V AC | 1 | Belt | 20 7/8" | 2 hp | 1 1/2" | 5.906" | 7A | €8,232.35 | |
 |
BA9-1002923 | 220V AC | 1 | Belt | 20 7/8" | 2 hp | 1 1/2" | 5.906" | 14A | €10,082.05 | |
 |

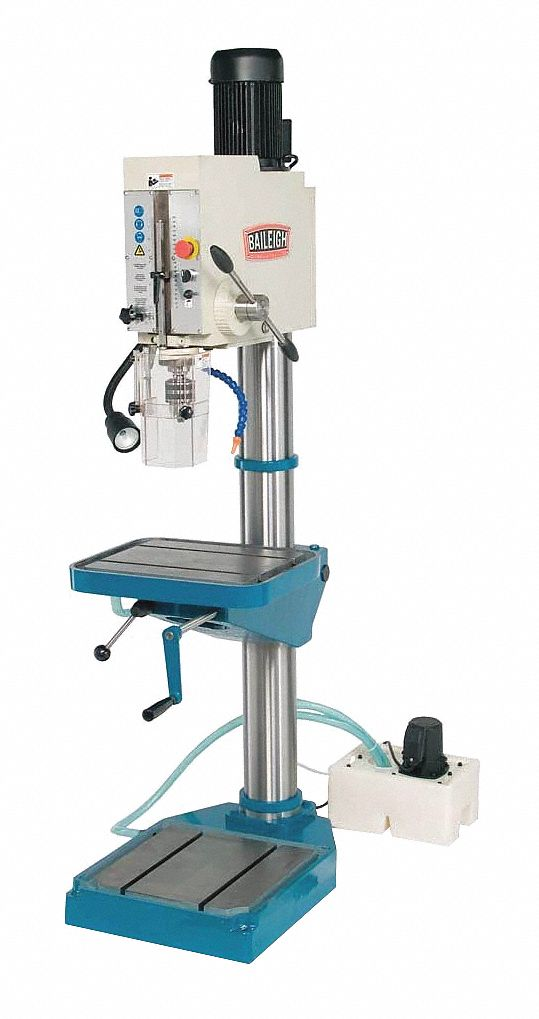

BA9-1002872 | 220V AC | 3 | Geared Head | 26" | 3 1/2 hp | 1 1/2" | 7 1/2" | - | €9,623.34 | |
 |

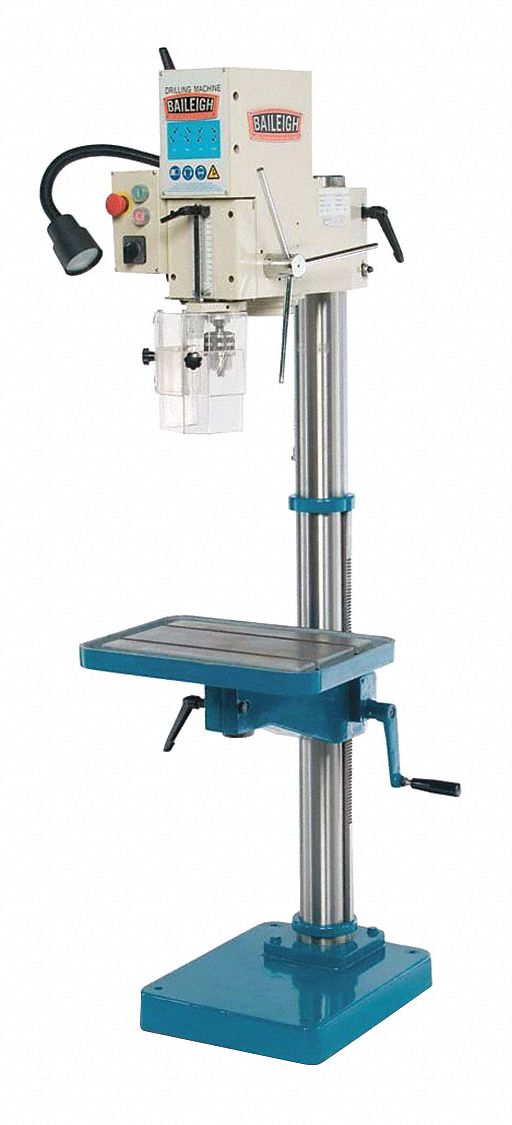

BA9-1002827 | 110V AC | 1 | Geared Head | 10 3/8" | 1 1/2 hp | 1" | 5.312" | 14A | €6,899.89 |
