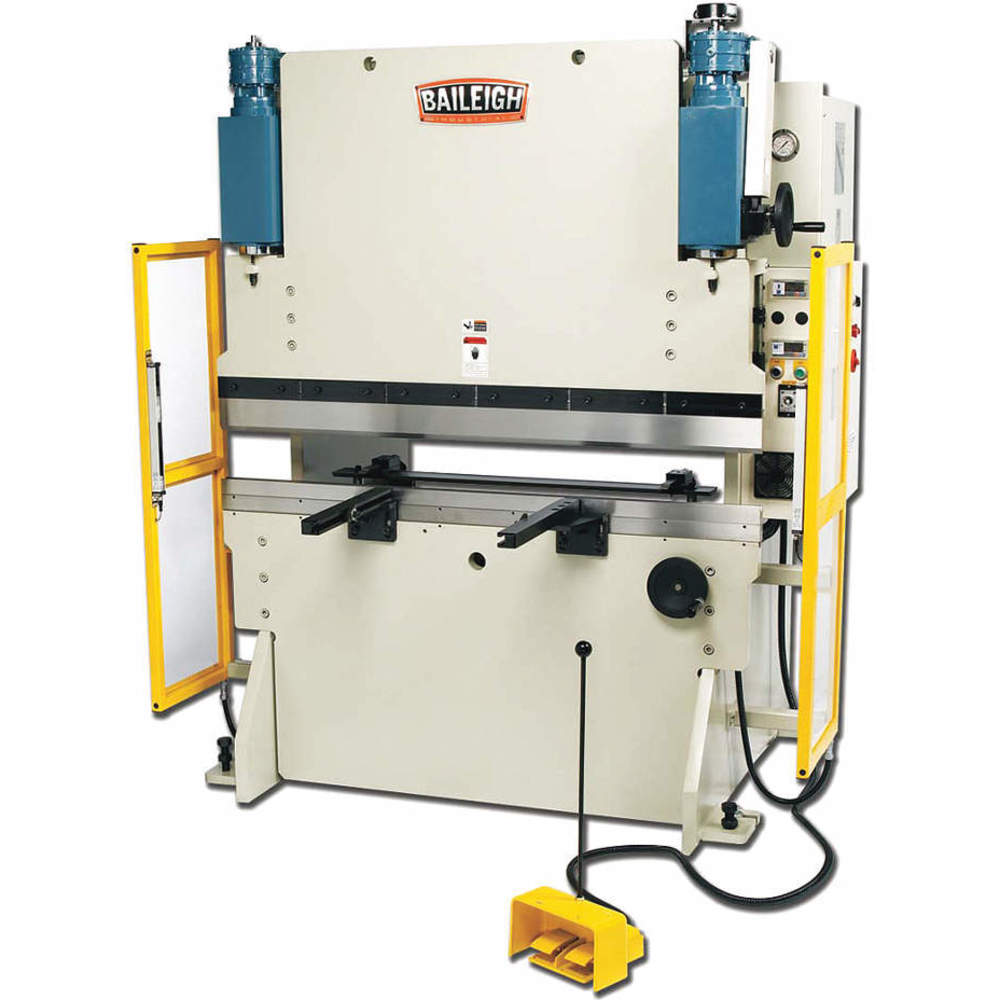

BAILEIGH INDUSTRIAL BA9-1000824 BP-5060NC Sheet Metal Brake, Press Brake, Corded, Electric, Foot Pedal, 220V AC, 230V AC
Get it by Wednesday, Dec 24
10.00% off
€69,305.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheet Metal Brake |
| Actuation | Foot Pedal |
| Amps | 15A |
| Angle Gauge | No |
| Application | Bending |
| Brake Type | Press Brake |
| Color | Blue, White |
| Compatible Die Type | Hardened Single-Vee |
| Features | 2 Hand Wheels To Adjust The Position Of The Beam And Back Gauge For Consistency Across The Entire Width Of The Beam, Digital Readout (Dro) Displays The Position Of The Downward Stroke, Motorized Back Gauge Rides On A Solid Ball Screw Trolley Mechanism, Parallel Mechanism On The Beam Synchronizes The Top And Bottom Die To Deliver Better Quality Bends Across The Entire Width Of The Machine |
| Hp | 5 hp |
| Hydraulic Force | 50 ton. |
| Includes | Set Of Hardened Single-Vee American Tooling And Front Material Rests |
| Material | Steel |
| Max. Bending Angle | 90° |
| Max. Bending Width | 61" |
| Motor Type | Electric |
| Phase | 3 |
| Power Source | Corded |
| Sheet Metal Capacity (steel) | 11 ga. |
| Sub-brand | Press Brake |
| Voltage | 220V AC |
Shipping Info:
| Ship weight (kg) | 2772 |
| Ship height (cm) | 243.84 |
| Ship length (cm) | 228.6 |
| Ship width (cm) | 160.02 |
| Country of Origin | TW |
Product Variants
| Product | Model | Voltage | Power Source | Phase | Actuation | Amps | Hp | Color | Brake Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BA9-BP3142NC | 110V | - | 1 | - | - | - | - | - | €35,021.99 | |
 |
BA9-1004979 | - | Manual | - | Hand Lever | - | - | Blue | Letter Forming | €2,123.91 | |
 |
BA9-1000786 | 220V AC | Corded | 3 | Foot Pedal | - | - | Blue, White | Press Brake | €129,429.14 | |
 |
BA9-1000835 | 220V AC | Corded | 3 | Foot Pedal | 19A | 7 1/2 hp | Blue, White | Press Brake | €88,441.06 | |
 |
BA9-1000791 | 220V AC | Corded | 3 | Foot Pedal | 33.5A | 15 hp | Blue, White | Press Brake | €167,005.38 | |
 |
BA9-1000781 | 220V AC | Corded | 3 | Foot Pedal | 30A | 10 hp | Blue, White | Press Brake | €126,727.62 | |
 |
BA9-1000801 | 220V AC | Corded | 3 | Foot Pedal | - | - | Blue, White | Press Brake | €60,755.56 |
