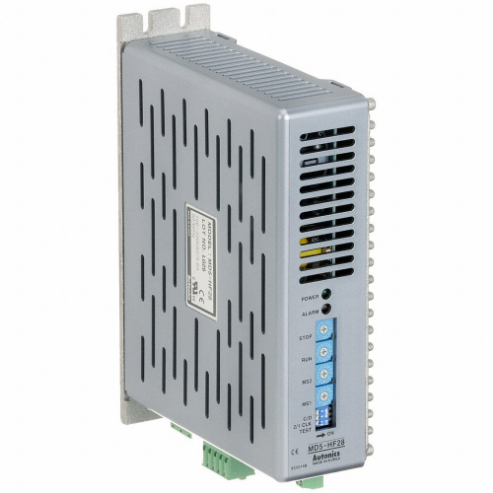

AUTONICS MD5-HF28 Stepping Motor Driver 5-phase 100-220vac 2.8a
Item: AE6BAKModel: MD5-HF28Cross Ref: 5PFF6
7 In Stock
Ships within 2 days via
10.00% off
€1,304.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Stepping Motor Driver |
| Ambient Temp. | -10°C to +60°C |
| Amps | 2.8A |
| Amps Per Phase | 2.8A |
| Amps Per Phase | 2.8 |
| Depth | 5 3/4" |
| Duty Rating | 50% |
| For Use With | 5PFD6, 5PFD8, 5PFE4, 5PFE6, 5PFE8, 5PFF0 |
| Height | 7 7/8" |
| Max. Amps | 5A |
| Max. Input Pulse Frequency | 500 kpps |
| Min. Input Pulse Width | 0.1 ms |
| Mounting | 2 Hole |
| Mounting Hole Centerline | 7.283" |
| Mounting Pattern | 7.283" On Center |
| Mounting Pattern | 7.283 In on Center |
| No. Of Axes | 1 |
| No. Of Microstep Divisions | 1, 2, 4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250 |
| No. Of Mounting Holes | 2 |
| Number Of Mounting Holes | 2 |
| Overall Depth | 5 3/4" |
| Overall Height | 7 7/8" |
| Overall Width | 2 1/8" |
| Phase | 5 |
| Run Method | Bipolar |
| Voltage | 100-220V AC |
| Width | 2 1/8" |
Shipping Info:
| Ship weight (kg) | 1.38 |
| Ship height (cm) | 20 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 5.4 |
| HS code | 8537109070 |
| Country of Origin | KR |
Product Details:
- Max. Input Pulse Frequency (500 kpps)
- Min. Input Pulse Width (0.1 microsec)
- Resolution / Microstep Divisions (1, 2, 4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250)
- Run Method (Bipolar)
Product Variants
| Product | Model | Phase | Amps | Run Method | Max. Input Pulse Frequency | Height | Min. Input Pulse Width | Max. Amps | No. Of Microstep Divisions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MD2U-MD20 | 2 | 2A | Unipolar | 50 kpps | 4 1/8" | 10 ms | 3A | 1, 2, 4, 5, 8, 10, 16, 20 | €416.20 |
