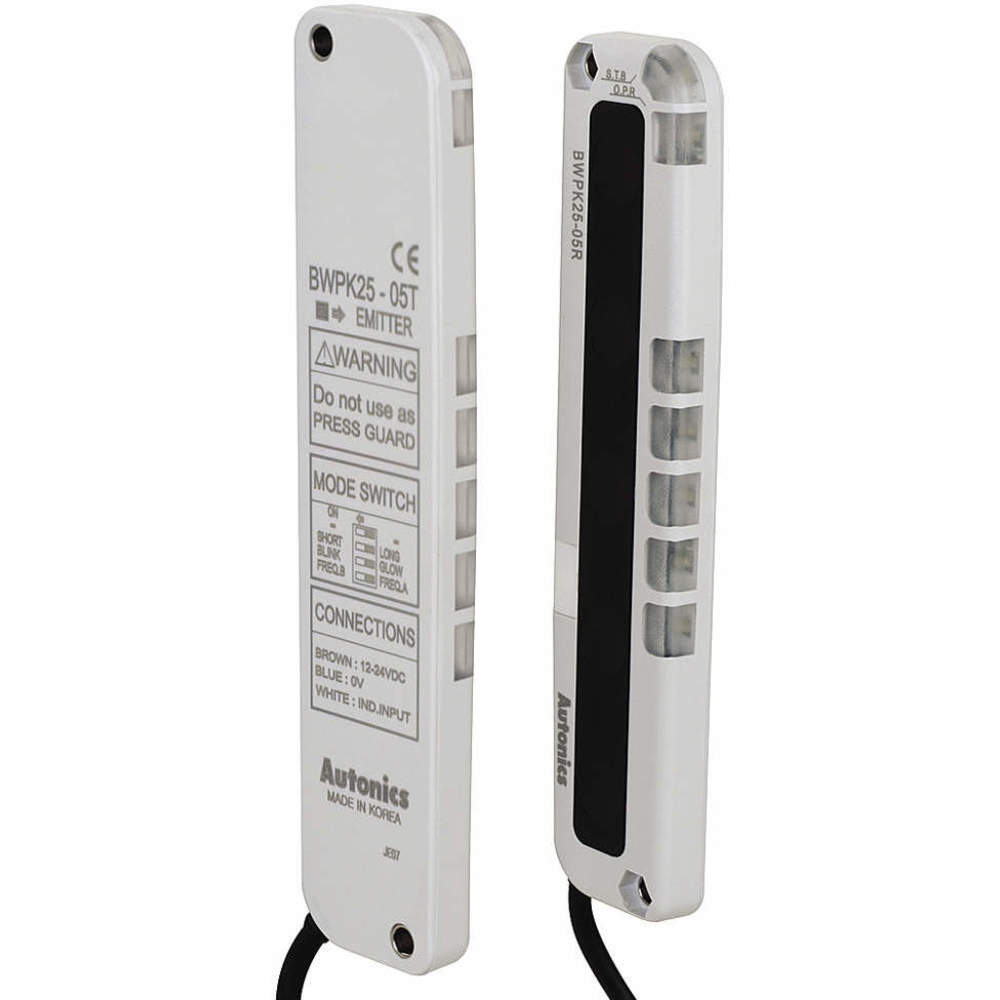

AUTONICS BWPK25-05 Picking Sensor Npn Plastic 25mm 5 Beam
Item: AC6DCRModel: BWPK25-05Cross Ref: 32W349
7 In Stock
Ships within 2 days via
10.00% off
€794.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Picking Sensor |
| Beam Spacing | 25mm |
| Beam Spacing | 25 mm |
| Cable Connection | 3 Bare Wires |
| Cable Length | 2m |
| Circuit Type | NPN Open Collector |
| Depth | 22.6 mm |
| Housing Material | Plastic |
| Light Source | Infrared LED |
| Max. Load Current | 100 mA |
| Max. Load Current | 100mA |
| Max. Sensing Distance | 0.05 to 3m |
| Max. Sensing Distance | 0.05m to 3m |
| Min. Target Size | Opaque Material 35mm |
| Number Of Beams | 5 |
| Operating Temp. Range | -20°C to +60°C |
| Output Mode | Light-On |
| Overall Height | 160 mm |
| Power Source | 12-24V DC |
| Protected Height | 140mm |
| Protected Height | 140 mm |
| Response Time | 30 ms |
| Width | 28.6 mm |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 11 |
| Ship length (cm) | 16 |
| Ship width (cm) | 4 |
| HS code | 8541408000 |
| Country of Origin | KR |
Product Details:
- Current Consumption (60mA)
- Max. Load Voltage (30VDC)
