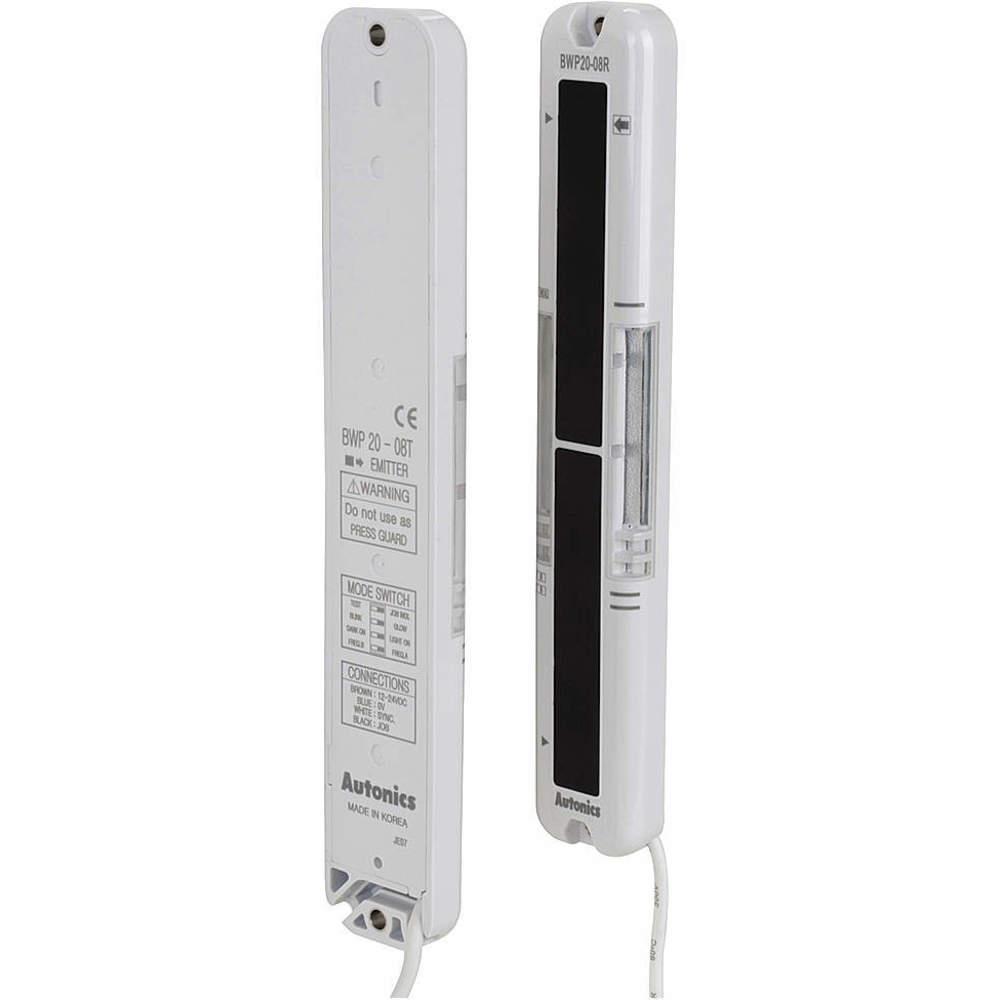

AUTONICS BWP20-12 Area Sensor Npn Plastic 20mm 12 Beam
Item: AC6DCKModel: BWP20-12Cross Ref: 32W343
7 In Stock
Ships within 2 days via
10.00% off
€1,055.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Area Sensor |
| Beam Spacing | 20mm |
| Beam Spacing | 20 mm |
| Cable Connection | 4 Bare Wires |
| Cable Length | 3m |
| Circuit Type | NPN Open Collector |
| Current Consumption | 80 mA |
| Depth | 22.6 mm |
| Housing Material | Plastic |
| Light Source | Infrared LED |
| Max. Load Current | 100 mA |
| Max. Load Current | 100mA |
| Max. Sensing Distance | 0.1m to 5m |
| Max. Sensing Distance | 0.1 to 5m |
| Min. Target Size | Opaque Material 30mm |
| Number Of Beams | 12 |
| Operating Temp. Range | -20°C to +60°C |
| Output Mode | Light-On |
| Overall Height | 290 mm |
| Power Source | 12-24V DC |
| Protected Height | 270mm |
| Protected Height | 270 mm |
| Response Time | 6 ms |
| Sensing Height | 270 mm |
| Sensing Range | 0.1m to 5m |
| Width | 28.6 mm |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 40 |
| Ship length (cm) | 12 |
| Ship width (cm) | 7 |
| HS code | 8541408000 |
| Country of Origin | KR |
Product Details:
- Current Consumption (80mA)
- Max. Load Voltage (30VDC)
