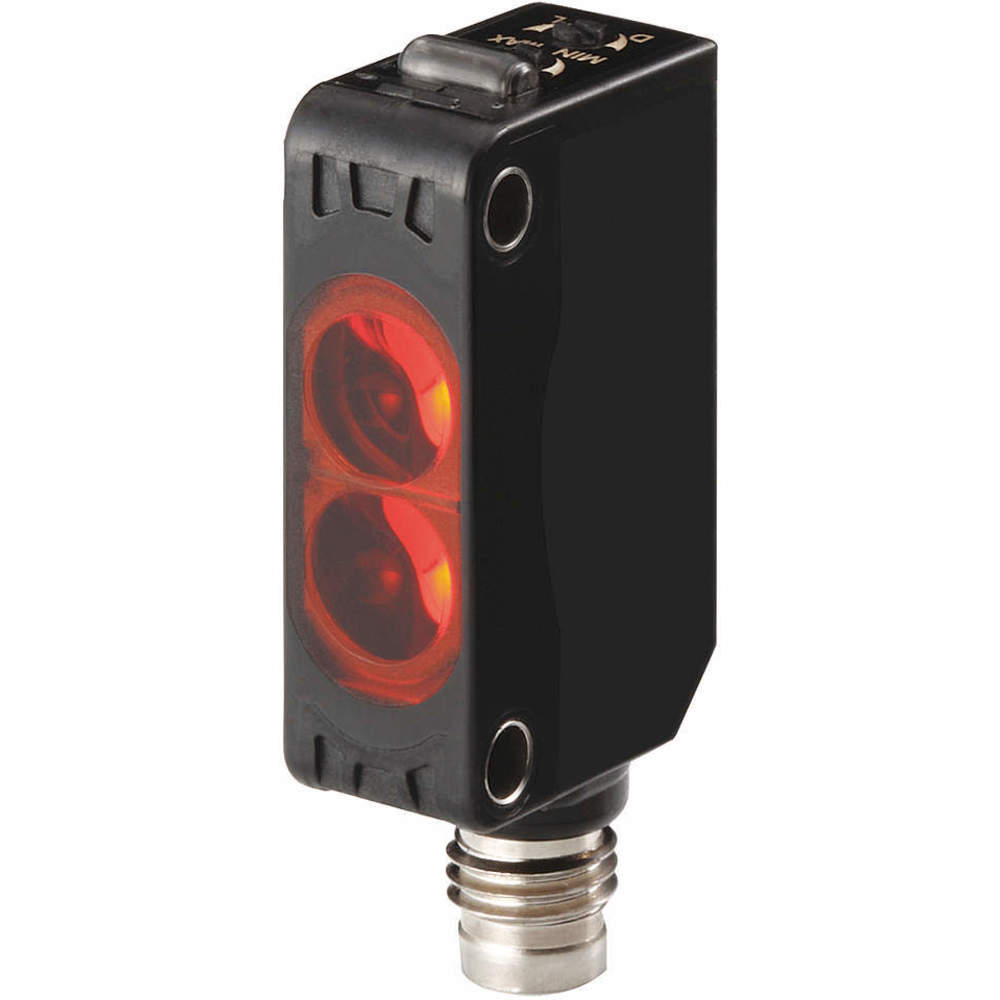

AUTONICS BJ100-DDT-C Miniature Photoelectric Sensor Rectangular
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Miniature Photoelectric Sensor |
| Body Material | Plastic |
| Circuit Type | NPN |
| Depth | 20 mm |
| Display Qty | 1 |
| Electrical Connection | M8 |
| Ip Rating | IP67 |
| Length | 32 mm |
| Light Source | Infrared LED |
| Load Current - Maximum | 50 mA |
| Max. Load Amps | 26.4DC @ 100mA |
| Max. Load Current | 26.4DC @ 100mA |
| Max. Sensing Distance | 100 mm |
| Max. Sensing Distance | 100mm |
| Min. Object Size | Translucent Opaque |
| Minimum Object Size | Translucent Opaque |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | Non-NEMA |
| Number Of Pins | 4 |
| Operating Frequency | 55 Hz |
| Operating Mode | Selectable Light, Dark On |
| Operating Temp. Range | -25°C to +55°C |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 20 mm |
| Overall Height | 32 mm |
| Overall Width | 11 mm |
| Power Requirement | 12-24V DC |
| Product Type | Photoelectric Sensor |
| Response Time | 1 ms |
| Sensing Method | Diffuse |
| Sensor Body Style | Rectangular |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Shape | Rectangular |
| Switching Frequency | 50/60 Hz |
| Width | 11 mm |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 8 |
| Ship length (cm) | 11 |
| Ship width (cm) | 5.5 |
| HS code | 8541408000 |
| Country of Origin | KR |
Product Variants
| Product | Model | Sensing Method | Max. Sensing Distance | Light Source | Min. Object Size | Body Material | Ip Rating | Circuit Type | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

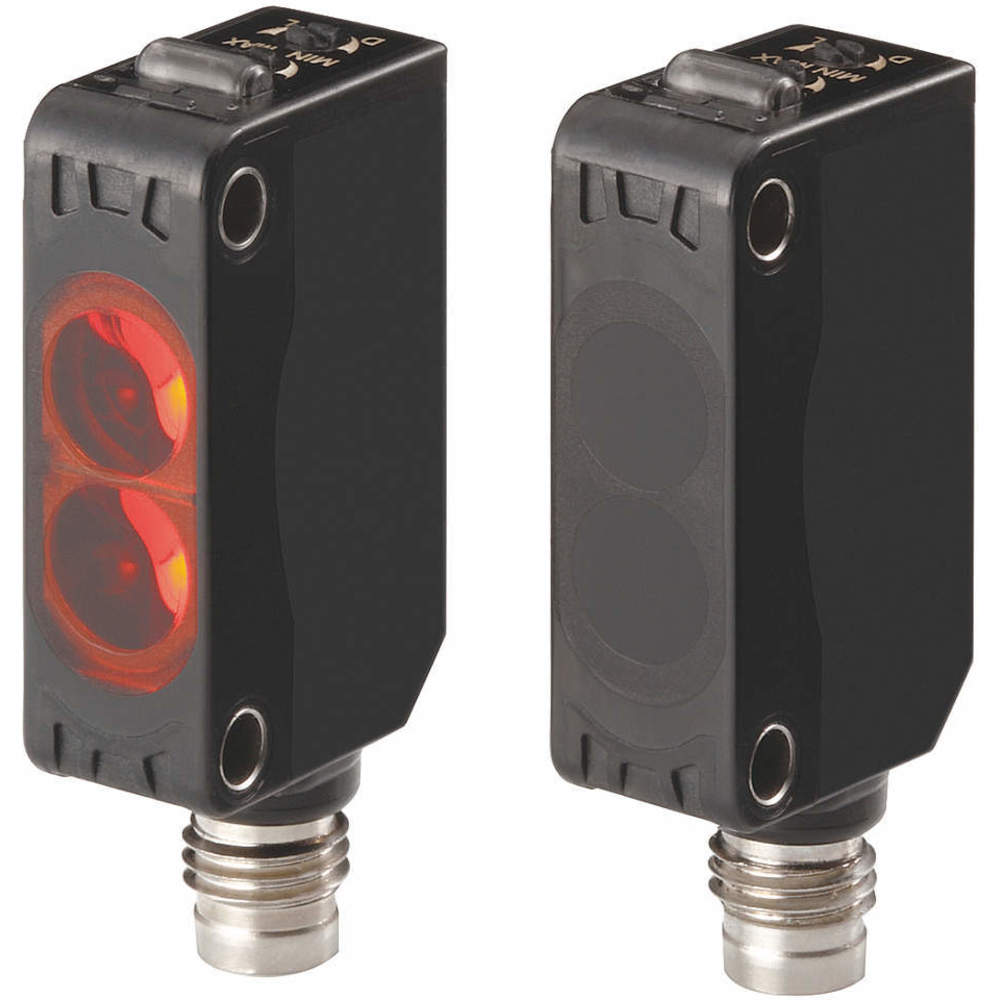

BJ15M-TDT-C | Through Beam | 15m | Infrared LED | 12 mm | Plastic | - | NPN | -25°C to +55°C | - | RFQ
|
 |

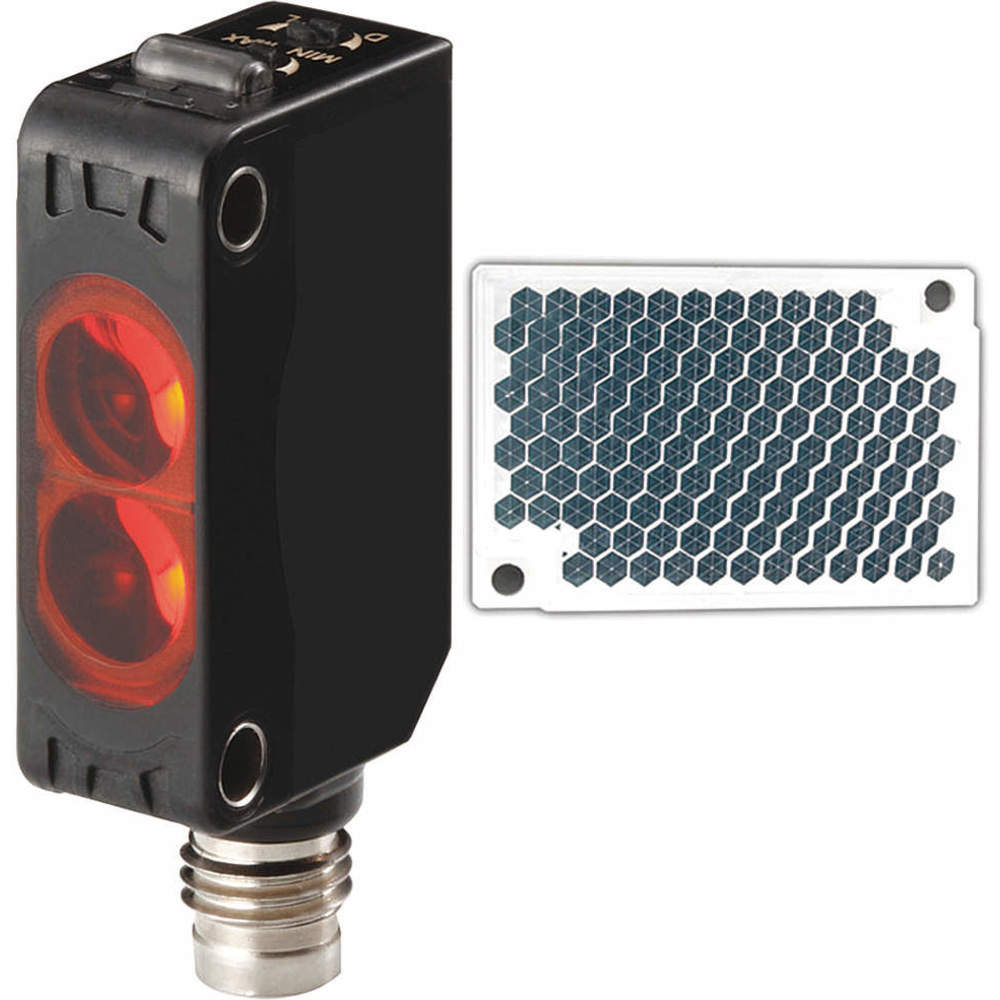

BJ3M-PDT-C | Retroreflective | 3m | LED | 75 mm | Plastic | IP67 | NPN | -25°C to +55°C | - | RFQ
|
