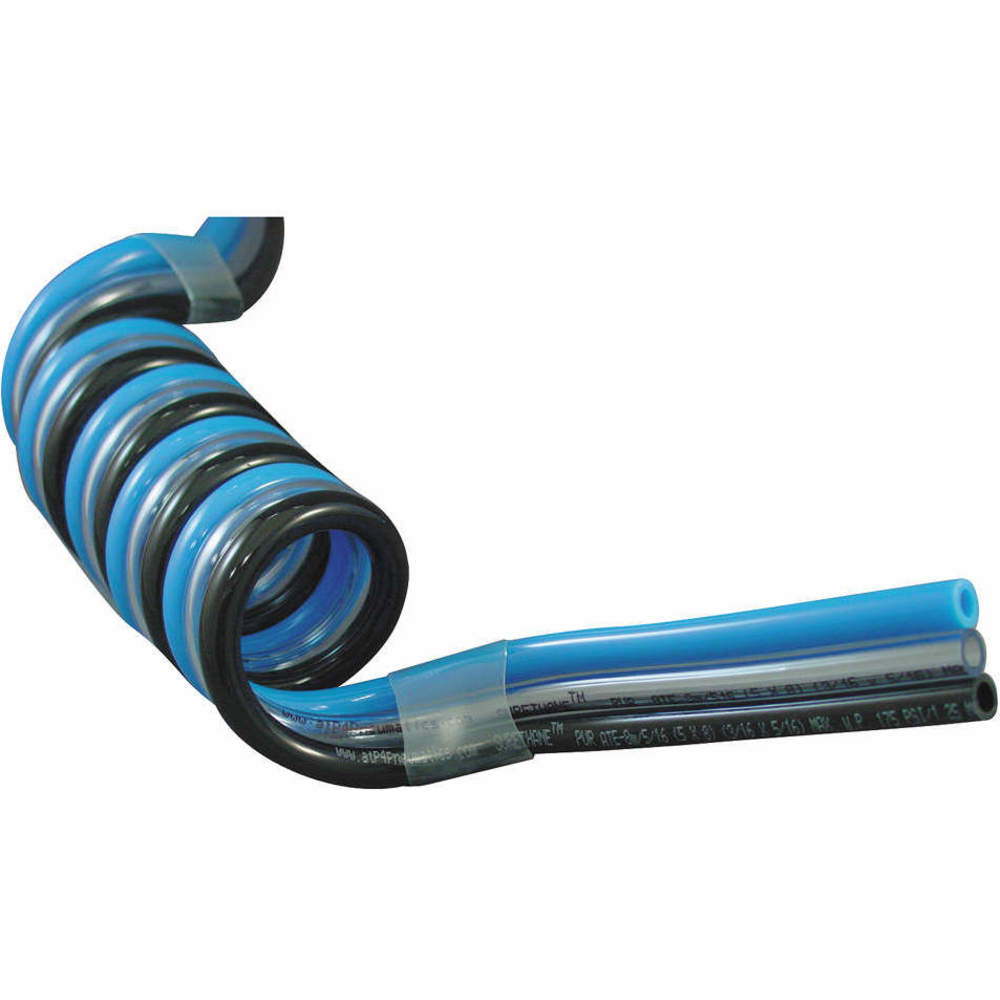

ATP 3MPS-38-20 Poly Tubing Spiral Outer Diameter 3/8 Inch 23 In
Item: AD7GZZModel: 3MPS-38-20Cross Ref: 4EHW4
7 In Stock
Ships within 2 days via
10.00% off
€97.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Gas |
| Autoclavable | No |
| Bonding | Bonded Spiral |
| Burst Pressure | 420 psi |
| Color | Black, Blue, Clear |
| Features | Multiple Bore Bonded Spiral |
| Fitting Compatibility | Barbed, Compression, Push-To-Connect |
| For Fluid Type | Gas, Liquid, Oil |
| Hardness | Shore A 98 |
| Industry Application | Oem |
| Inside Dia. | 1/4" |
| Length | 23" |
| Material | Polyurethane |
| Material Trade Name | Surethane |
| Max. Pressure | 140 psi |
| Maximum Operating Pressure | 150 psi @ 75°F |
| Maximum Operating Temperature | 160°F |
| Maximum Vacuum Pressure | 28 in. hg |
| Minimum Operating Temperature | -40°F |
| Number Of Tubes | 3 |
| Outside Dia. | 3/8" |
| Overall Tubing Length | 30.5" |
| Product Datasheet | atp-3mps-38-20.pdf |
| Resistance Properties | Abrasion Resistant, Hydrolysis Resistant, Kink Resistant, Oil Resistant |
| Standards | Nsf 51, Nsf 61, Rohs Compliant |
| Tail Length | 4" |
| Temp. Range | -68°F to +140°F |
| Tolerance | -0.004" to +0.004" |
| Tube A Clarity | Opaque |
| Tube A Color | Black |
| Tube A Inside Diameter | 1/4" |
| Tube A Outside Diameter | 3/8" |
| Tube A Wall Thickness | 0.063" |
| Tube B Clarity | Semi-Clear |
| Tube B Color | Blue |
| Tube B Inside Diameter | 1/4" |
| Tube B Outside Diameter | 3/8" |
| Tube B Wall Thickness | 0.063" |
| Tube C Clarity | Opaque |
| Tube C Inside Diameter | 1/4" |
| Tube C Outside Diameter | 3/8" |
| Tube C Wall Thickness | 0.063" |
| Tube Form | Coil |
| Type | Bonded, Spiral |
| Vacuum Rated | Vacuum Rated |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 28.7 |
| Ship width (cm) | 29.21 |
| HS code | 3917320020 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Color | Wall Thickness | Inside Dia. | Outside Dia. | Hardness | Burst Pressure | Tolerance | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2MPS-532-05-01 | Black, Blue | - | - | 0.156" | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €28.27 | |
| 2MPS-532-10-01 | Black, Blue | 0.031" | - | 0.156" | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €27.33 | |
| 2MPS-532-20-01 | Black, Blue | - | - | 0.156" | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €33.79 | |
| 2MPS-532-40-01 | Black, Blue | 0.031" | - | - | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €36.05 | |
| 2MPS-14-05-01 | Black, Blue | 0.047" | 0.156" | - | - | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €35.57 | |
| 2MPS-14-10-01 | Black, Blue | 0.047" | 0.156" | - | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €34.05 | |
| 2MPS-14-20-01 | Black, Blue | 0.047" | 0.156" | - | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €43.19 |
