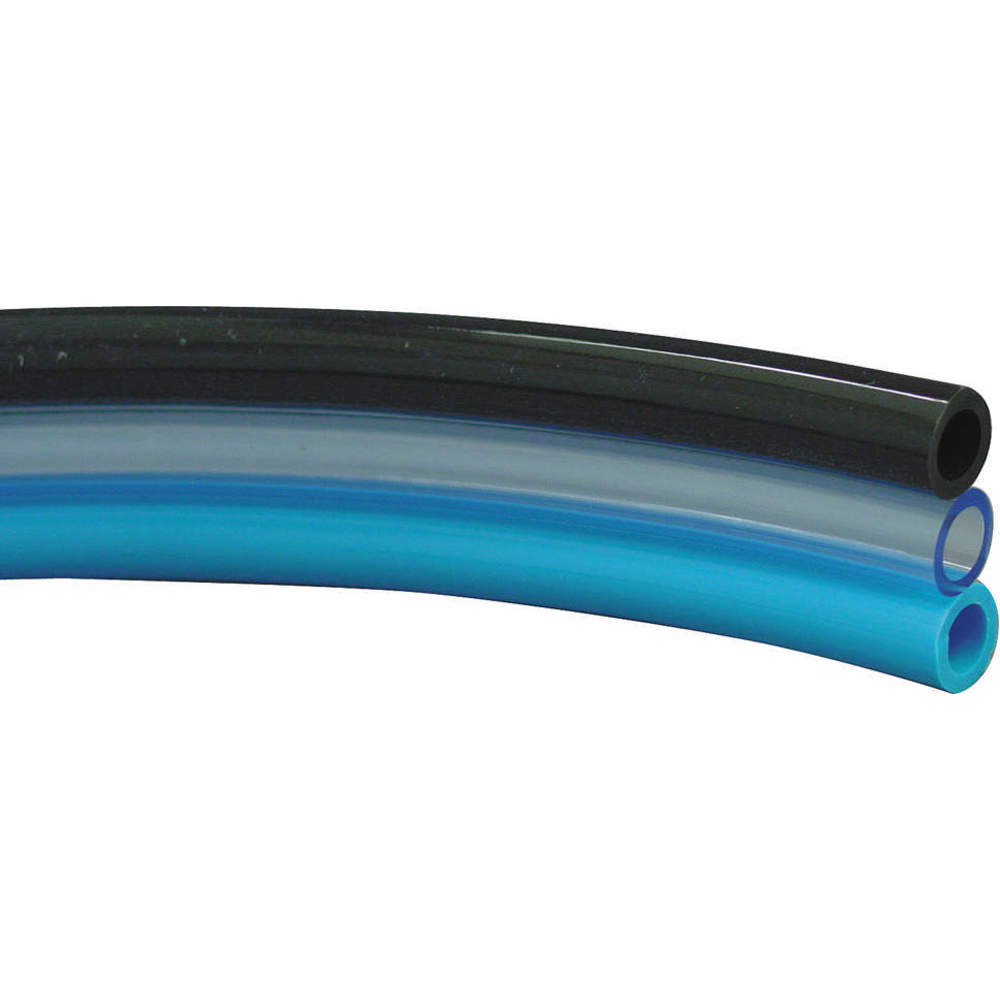

ATP 3MP-12-B Poly Tubing Straight Outer Diameter 1/2 Inch 50 Feet
Item: AD7GZGModel: 3MP-12-BCross Ref: 4EHU6
7 In Stock
Ships within 2 days via
10.00% off
€599.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Air, Water |
| Autoclavable | No |
| Bend Radius | 1 1/10" |
| Bonding | Bonded Straight |
| Burst Pressure | 420 psi |
| Color | Black, Blue, Clear |
| Features | Multiple Bore Bonded |
| Fitting Compatibility | Barbed, Compression, Push-To-Connect |
| Flexibility | Flexible |
| For Fluid Type | Gas, Liquid, Oil |
| Hardness | Shore A 98 |
| Industry Application | Oem |
| Inside Dia. | 8/25" |
| Length | 50 ft. |
| Material | Polyurethane |
| Material Trade Name | Surethane |
| Max. Pressure | 140 psi |
| Maximum Operating Pressure | 150 psi @ 75°F |
| Maximum Operating Temperature | 160°F |
| Maximum Vacuum Pressure | 28 in. hg |
| Minimum Operating Temperature | -40°F |
| Number Of Tubes | 3 |
| Outside Dia. | 1/2" |
| Overall Tubing Length | 50 ft. |
| Resistance Properties | Abrasion Resistant, Hydrolysis Resistant, Kink Resistant, Oil Resistant |
| Standards | Nsf 51, Nsf 61, Rohs Compliant |
| Tail Length | 50 ft. |
| Temp. Range | -68°F to +140°F |
| Tolerance | -0.004" to +0.004" |
| Tube A Clarity | Opaque |
| Tube A Color | Black |
| Tube A Inside Diameter | 21/64" |
| Tube A Outside Diameter | 1/2" |
| Tube A Wall Thickness | 0.086" |
| Tube B Clarity | Semi-Clear |
| Tube B Color | Blue |
| Tube B Inside Diameter | 21/64" |
| Tube B Outside Diameter | 1/2" |
| Tube B Wall Thickness | 0.086" |
| Tube C Clarity | Opaque |
| Tube C Color | Light Blue |
| Tube C Inside Diameter | 21/64" |
| Tube C Outside Diameter | 1/2" |
| Tube C Wall Thickness | 0.086" |
| Tube Form | Straight |
| Type | Bonded, Straight |
| Vacuum Rated | Vacuum Rated |
| Vacuum Rating | 28 in. hg |
| Wall Thickness | 0.094" |
Shipping Info:
| Ship weight (kg) | 4.37 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 45.72 |
| HS code | 3917320020 |
| Country of Origin | US |
Product Variants
| Model | Color | Outside Dia. | Wall Thickness | Inside Dia. | Hardness | Burst Pressure | Tolerance | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2MP-532-B-01 | Black, Blue | 0.156" | - | - | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €86.03 | |
| 2MP-14-B-01 | Black, Blue | - | 0.047" | 0.156" | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €202.33 | |
| 2MP-38-B-01 | Black, Blue | 3/8" | 0.062" | 1/4" | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €300.21 | |
| 2MP-12-B-01 | Black, Blue | 1/2" | 0.086" | - | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €501.34 | |
| 2MP-04M-50-01 | Black, Blue | 4" | 0.75 mm | 2.5 mm | - | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €104.19 | |
| 2MP-06M-50-01 | Black, Blue | 6 mm | 1 mm | 4 mm | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €304.20 | |
| 2MP-08M-50-01 | Black, Blue | 8 mm | 1.5 mm | 5 mm | Shore A 98 | 420 psi | -0.004" to +0.004" | -68°F to +140°F | €264.12 |
