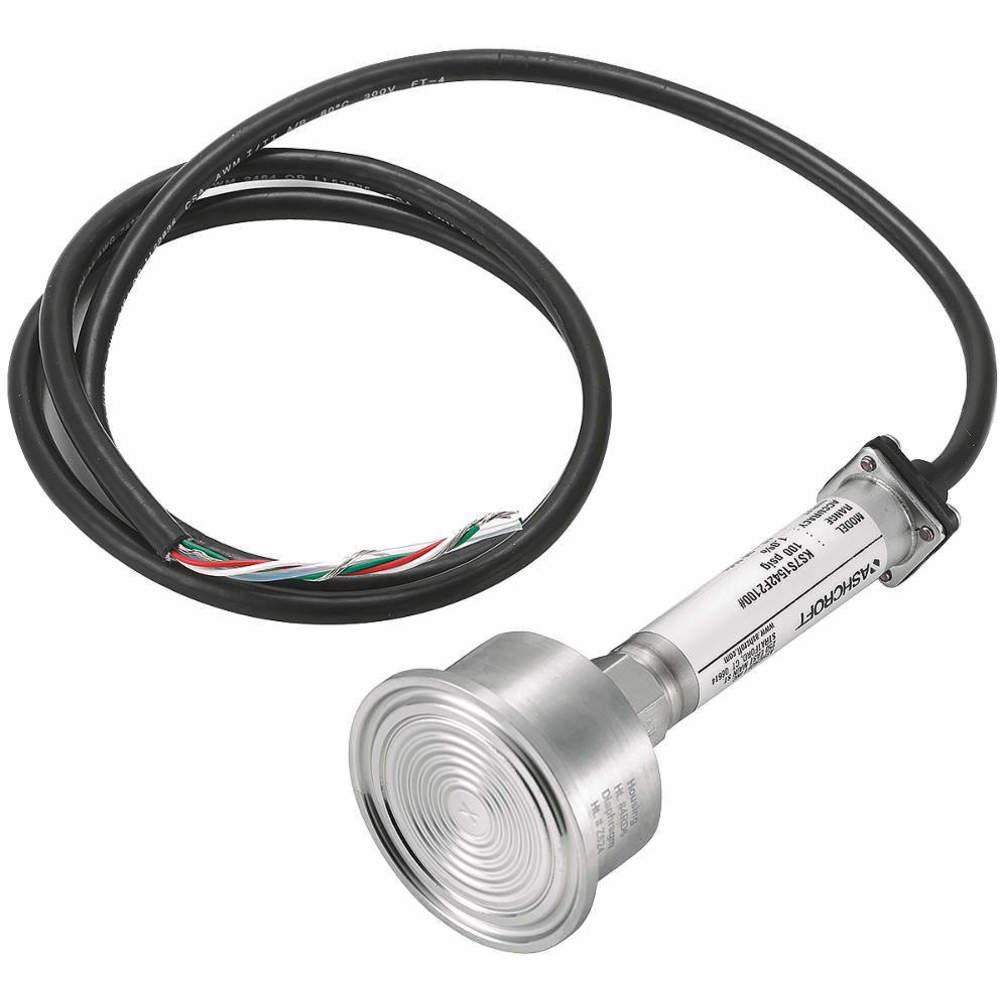

ASHCROFT KS7S2015F230# Sanitary Pressure Transmitter, 2 Inch Triclamp, 0 to 30 PSI, 1 to 5V DC, Cable & Wire Lead
Item: AE4MEXModel: KS7S2015F230#Cross Ref: 5LTJ4
7 In Stock
Ships within 2 days via
5.00% off
€837.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sanitary Pressure Transducer |
| Accuracy | +/-1% Full Scale , -1% to +1% |
| Burst Pressure | 8x |
| Cable Coating | PVC |
| Cable Length | 3 ft. , 36" |
| Cable Material | PVC |
| Compatible With | Any Process Compatible With 316 Stainless Steel |
| Electrical Connection | Shielded Cable |
| Electrical Connections Size | 3 ft. |
| Electrical Connections Type | Cable, Wire Leads |
| Feature | Combines Proven Thin Film Technology With Diaphragm Seal Expertise, Superior Long Term Stability, Repeatability |
| Fitting Material | Stainless Steel |
| Housing | Stainless Steel |
| Housing Height | 7/8" |
| Housing Length | 2 1/2" |
| Housing Material | Stainless Steel |
| Included | Instruction |
| Lead Length | 36" |
| Length | 2 1/2" |
| Material | Stainless Steel |
| Max. Operating Temp. | 180°F |
| Max. Pressure | 30 psi , 60 psi |
| Min. Operating Temp. | -20°F |
| Min. Pressure | 0 psi |
| Nema Rating | NEMA 4X |
| No. Of Wire | 3 |
| No. Of Wires | 3 |
| Operating Temp. | -20°F to +180°F |
| Output | 1-5V DC |
| Output Voltage | 1-5V DC |
| Over Pressure | 2000 psi |
| Overall Height | 4.7" |
| Overall Length | 2 1/2" |
| Overall Width | 2 1/2" |
| Power Required | 10-36V DC |
| Pressure Units | Psi |
| Process Connection Size | 2" |
| Process Connection Size-transmitter | 2" |
| Process Connection Type | Tri Clamp , Triclamp |
| Range | 0 psi to 30 psi |
| Range Units | Psi |
| Response Time | 5 ms |
| Series | KS Series |
| Storage Temp. | -65°F to +250°F |
| Thermal Error | -0.04% to +0.04% |
| Transmitter Type | Pressure Transmitter |
| Wetted Material | Stainless Steel |
| Wetted Material Grade | Grade 316L |
| Wiring Entry Size | 1/2" |
| Wiring Entry Type | FNPT |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.35 |
| HS code | 9026204000 |
| Country of Origin | US |
Product Variants
| Model | Max. Pressure | Process Connection Size | Range | Min. Pressure | Process Connection Type | Process Connection | Range Units | Wetted Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KS7S1542F230# | 30 psi | 1 1/2" | 0 psi to 30 psi | 0 psi | Tri Clamp | - | Psi | 316L Stainless Steel | €890.28 | |
| KS7S1542F260# | 120 psi | 1 1/2" | 0 psi to 60 psi | 0 psi | Tri Clamp | - | Psi | 316L Stainless Steel | €890.28 | |
| KS7S1542F2100# | 100 psi | 1 1/2" | 0 psi to 100 psi | 0 psi | Tri Clamp | - | Psi | 316L Stainless Steel | €890.28 | |
| KS7S1542F2200# | 200 psi | 1 1/2" | 0 psi to 200 psi | 0 psi | - | - | Psi | 316L Stainless Steel | €890.28 | |
| KS7S1542F2300# | 300 psi | 1 1/2" | 0 psi to 300 psi | 0 psi | Tri Clamp | - | Psi | 316L Stainless Steel | €890.28 | |
| KS7S1542F230#&VAC | 30 psi | 1 1/2" | 30 in. hg to 30 psi | 30 in. hg | - | - | In. Hg | 316L Stainless Steel | €890.28 | |

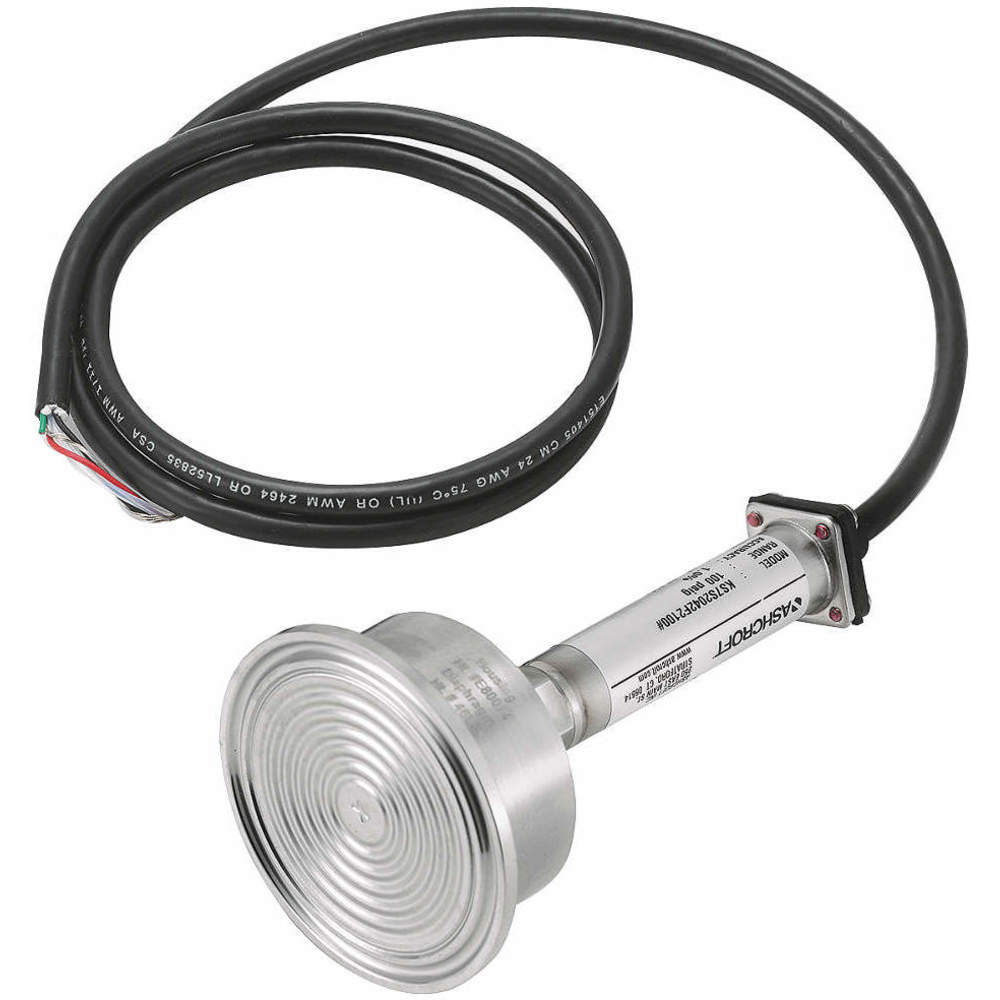

| KS7S2042F230# | 30 psi | 2" | 0 psi to 30 psi | 0 psi | Tri Clamp | 2" Tri Clamp | Psi | 316L Stainless Steel | €876.44 |
