ASHCROFT G17MEK42DO200# Pressure Transmitter, 0 - 200 PSI, 4 - 20mA DC, DIN 43650 Form A Connector, 7/16 Inch SAE
Item: CN8YPKModel: G17MEK42DO200#Cross Ref: 5DDW4
7 In Stock
Ships within 2 days via
10.00% off
€248.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Transmitter |
| Accuracy | -0.5% to +0.5% |
| Burst Pressure | 10x |
| Compatible With | Any Process Compatible With 316 Stainless Steel |
| Electrical Connection | DIN 43650 Form A Connector |
| Enclosure Rating | IP67, NEMA 4X |
| Explosion/fire Proof | No |
| Full-scale Accuracy | ±0.50% Full Scale |
| Housing Material | Glass Reinforced Nylon |
| Includes | Instructions |
| Intrinsically Safe | No |
| Ip Rating | IP67 |
| Manufacturers Warranty Length | 1 yr. |
| Max. Operating Temp. | 257°F |
| Max. Pressure | 200 psi |
| Maximum Loop Resistance | 1227 ohms |
| Mfr. Series | G2 Series |
| Min. Operating Temp. | -40°F |
| Min. Pressure | 0 psi |
| Nema Rating | NEMA 4X |
| Number Of Wires | 2 |
| Output | 4-20 mA |
| Overpressure | 2x Range |
| Power Required | 9-36V DC |
| Pressure Units | Psi |
| Process Connection | 7/16" Male SAE |
| Process Connection Gender | Male |
| Process Connection Size | 7/16" |
| Process Connection Type | SAE |
| Range | 0 psi to 200 psi |
| Range Units | Psi |
| Response Time | 1 ms |
| Storage Temp. Range | -40°F to +257°F |
| Thermal Error | +/-3% (-4°F To +185°F) |
| Wetted Grade | Grade 304 |
| Wetted Materials | Stainless Steel |
| Wiring Entry | Cable Gland |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Power Required | Process Connection | Pressure Range | Enclosure Rating | Process Connection Size | Output | Storage Temp. Range | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

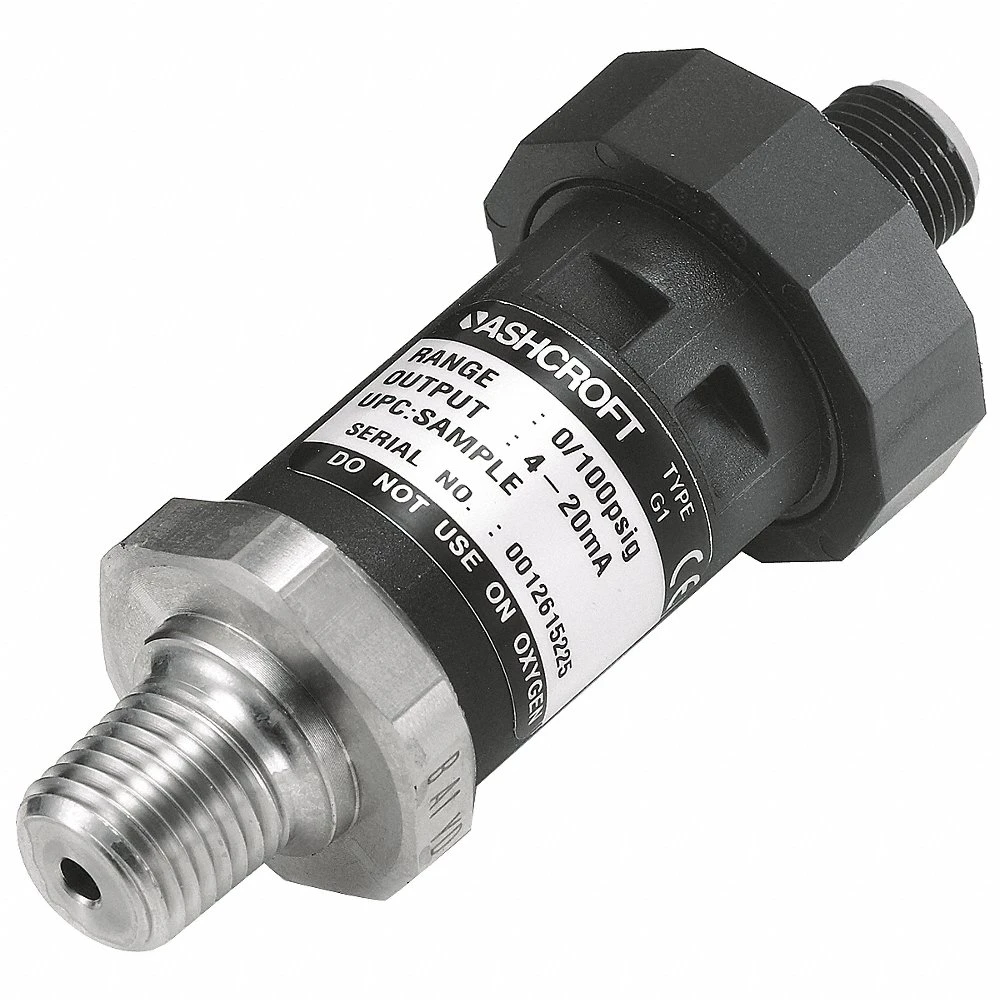

G17M0215EW1000# | 9-36V DC | 1/4" Male NPT | 0 psi to 1000 psi | IP67, NEMA 4X | 1/4" | 1-5V DC | -40°F to +257°F | Glass Reinforced Nylon | €294.86 | |
 |

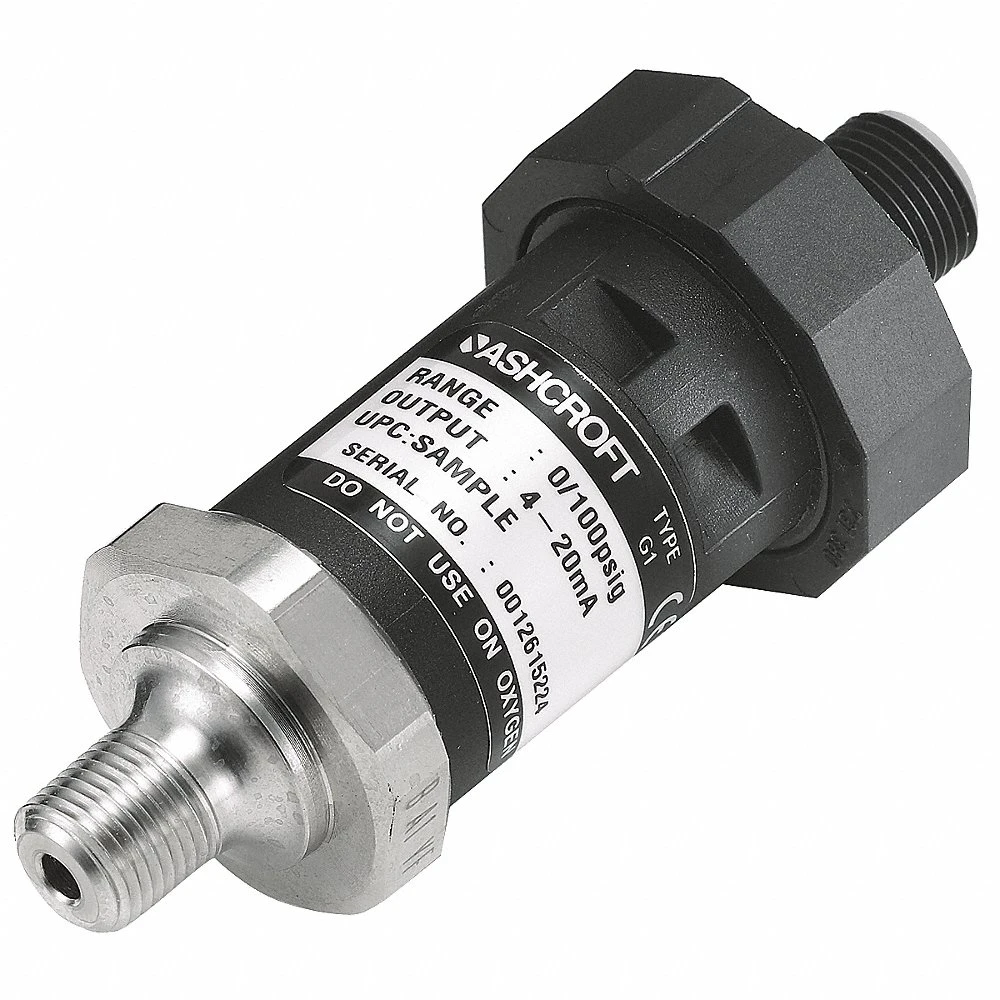

G17M0115EW1000# | 9-36V DC | 1/8" Male NPT | 0 psi to 1000 psi | IP67, NEMA 4X | 1/8" | 1-5V DC | -40°F to +257°F | Glass Reinforced Nylon | €287.93 | |
 |

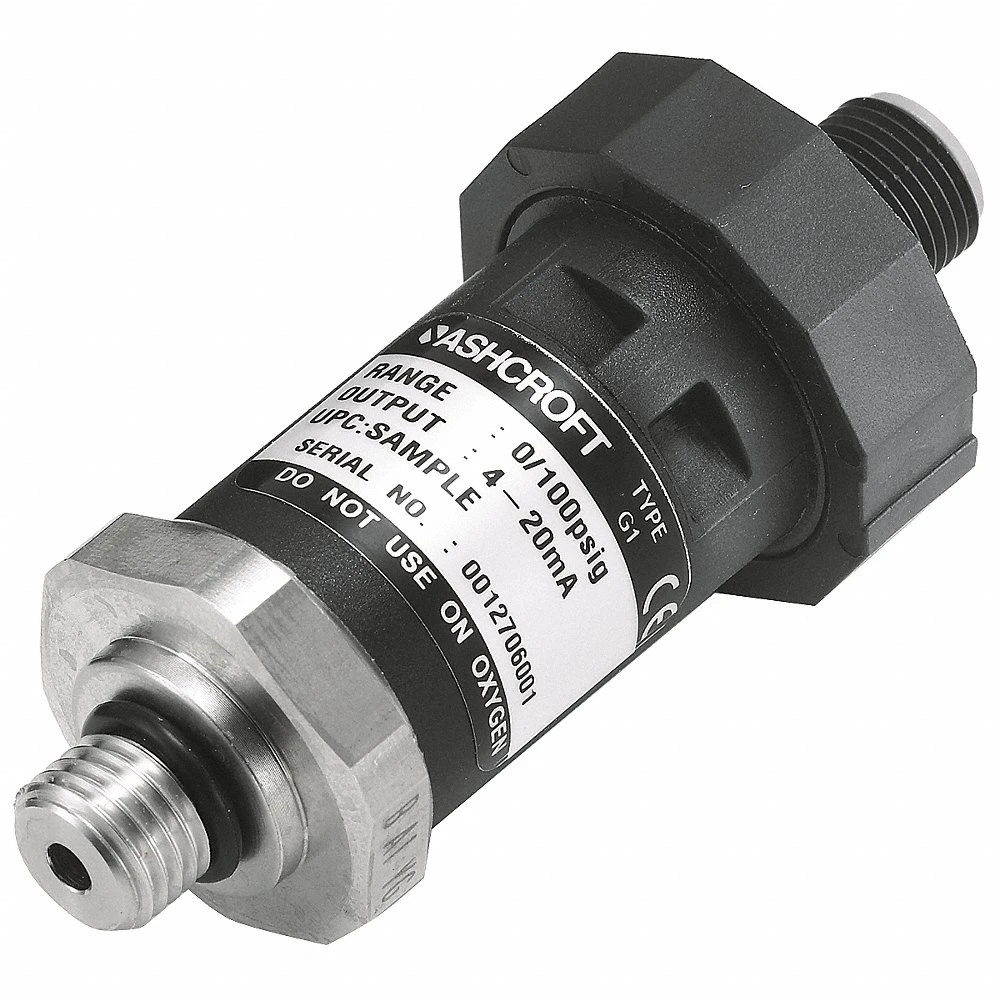

G17MEK15EW1000# | 9-36V DC | 7/16" Male SAE | 0 psi to 1000 psi | IP67, NEMA 4X | 7/16" | 1-5V DC | -40°F to +257°F | Glass Reinforced Nylon | €287.95 | |
 |

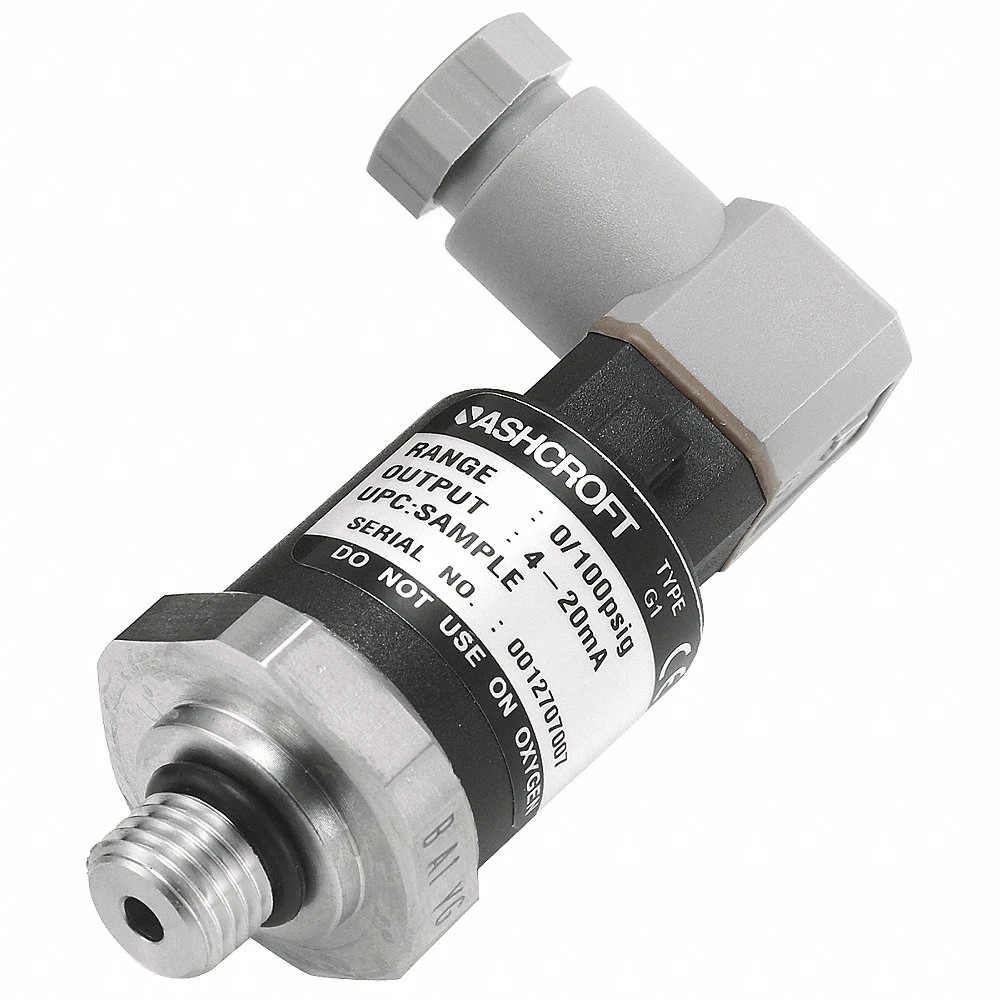

G17MEK15M11000# | 9-36V DC | 7/16" Male SAE | - | IP67, NEMA 4X | 7/16" | 1-5V DC | -40°F to +257°F | Glass Reinforced Nylon | €258.05 | |
 |

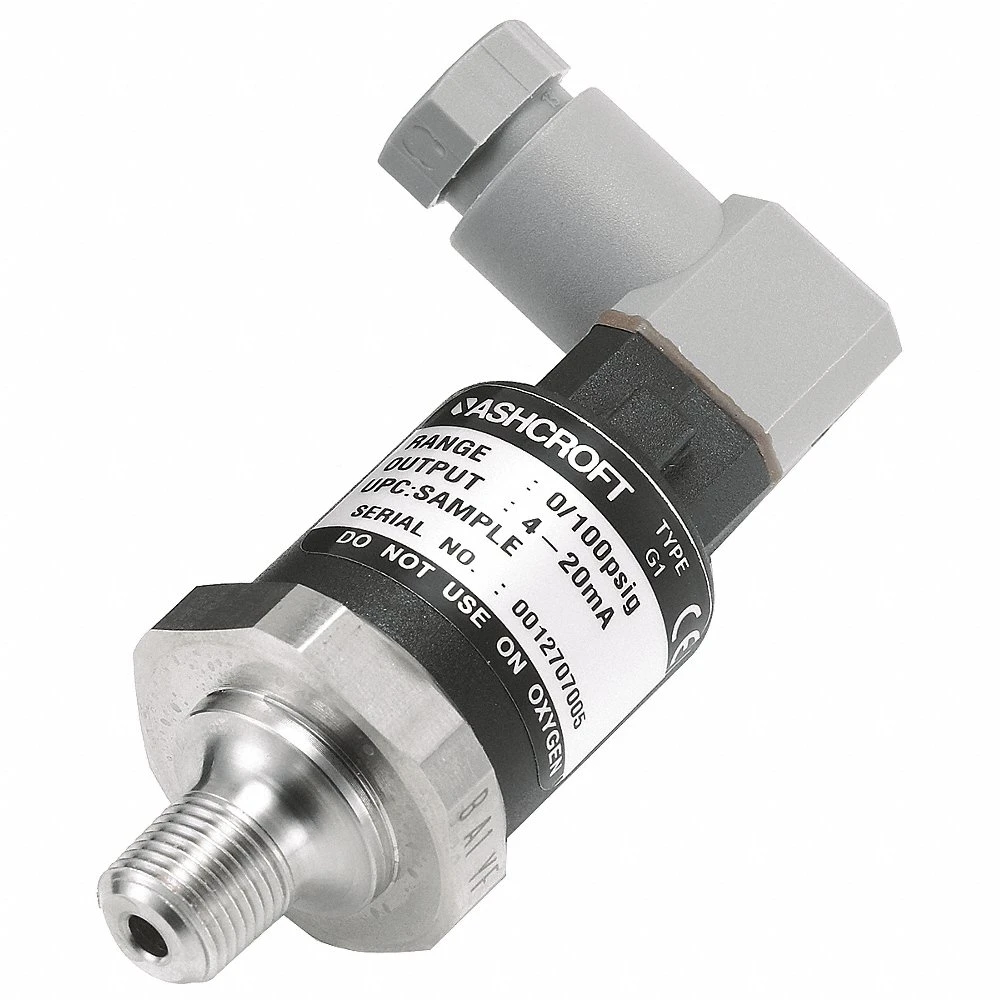

G17M0115M11000# | 9-36V DC | 1/8" Male NPT | - | IP67, NEMA 4X | 1/8" | 1-5V DC | -40°F to +257°F | Glass Reinforced Nylon | €270.18 | |
 |

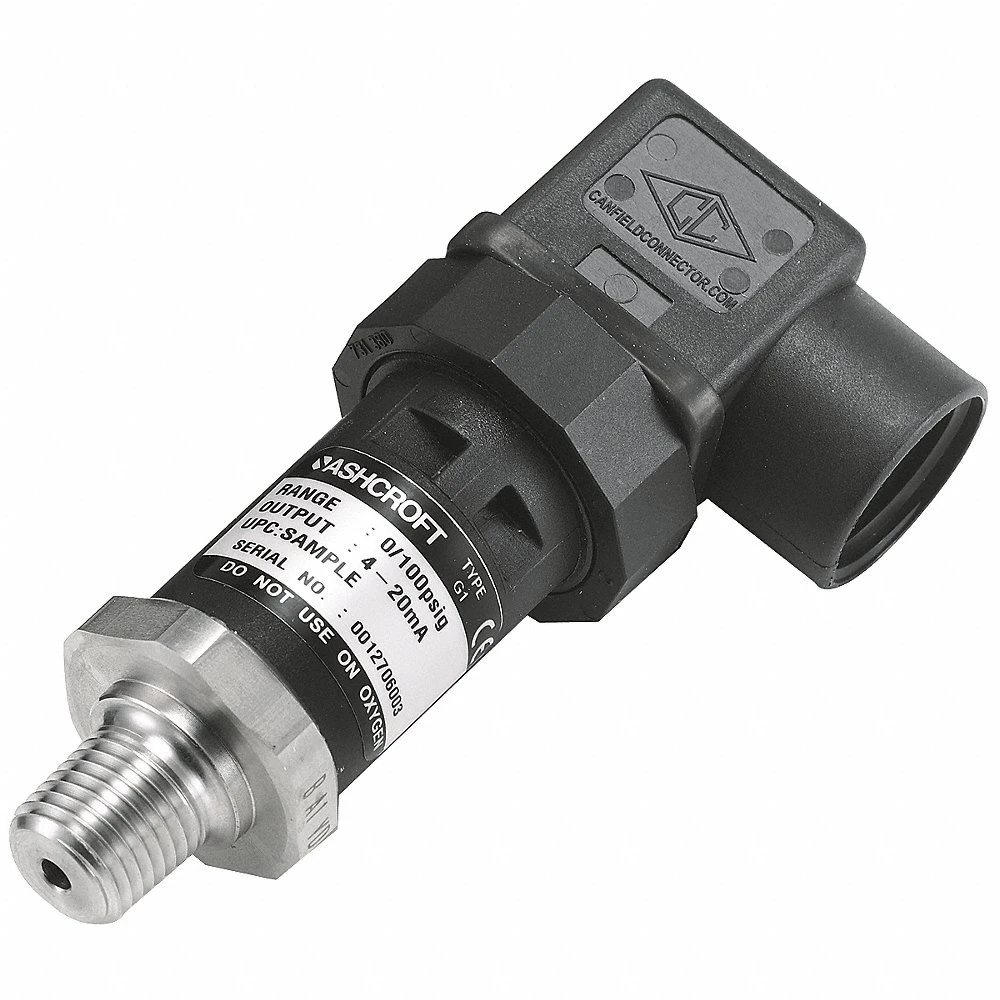

G17M0215CD1000# | 9-36V DC | 1/4" Male NPT | 0 psi to 1000 psi | IP67, NEMA 4X | 1/4" | 1-5V DC | -40°F to +257°F | Glass Reinforced Nylon | €272.90 | |
 |

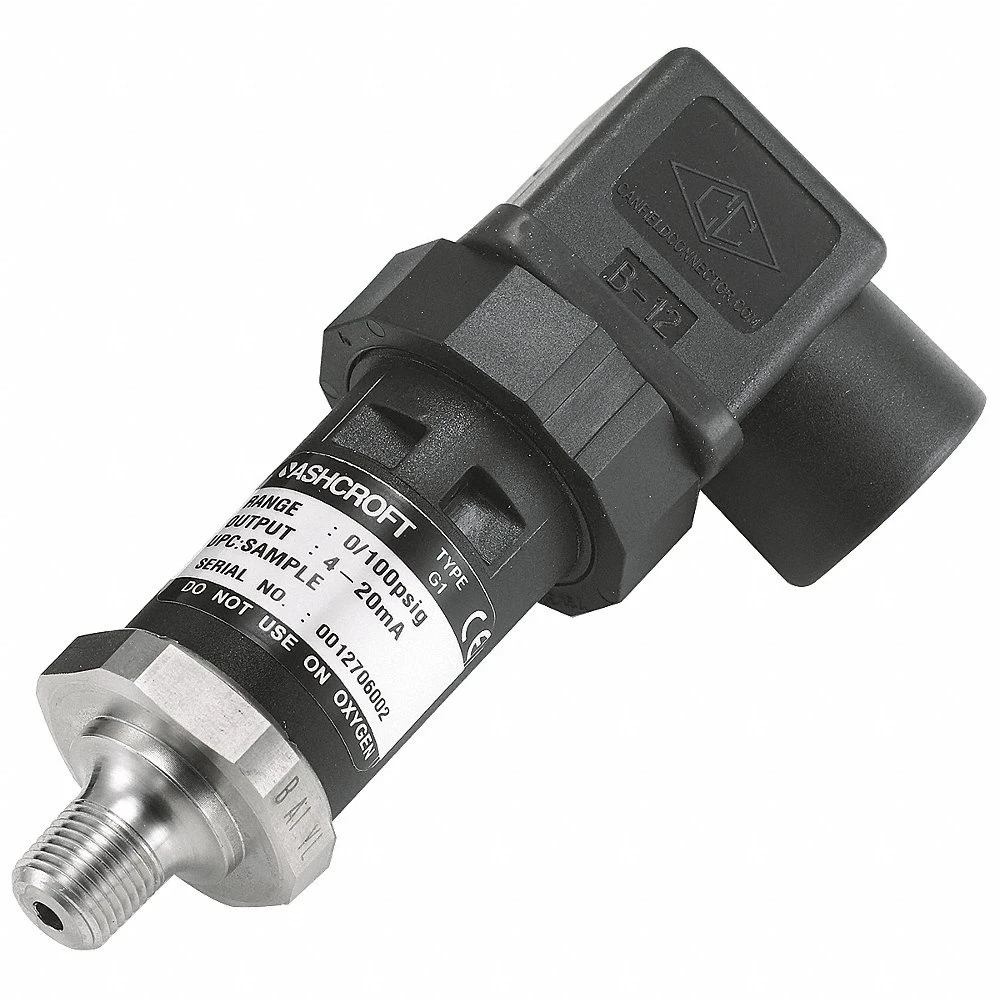

G17M0115CD1000# | 9-36V DC | 1/8" Male NPT | 0 psi to 1000 psi | IP67, NEMA 4X | 1/8" | 1-5V DC | -40°F to +257°F | Glass Reinforced Nylon | €272.90 |
