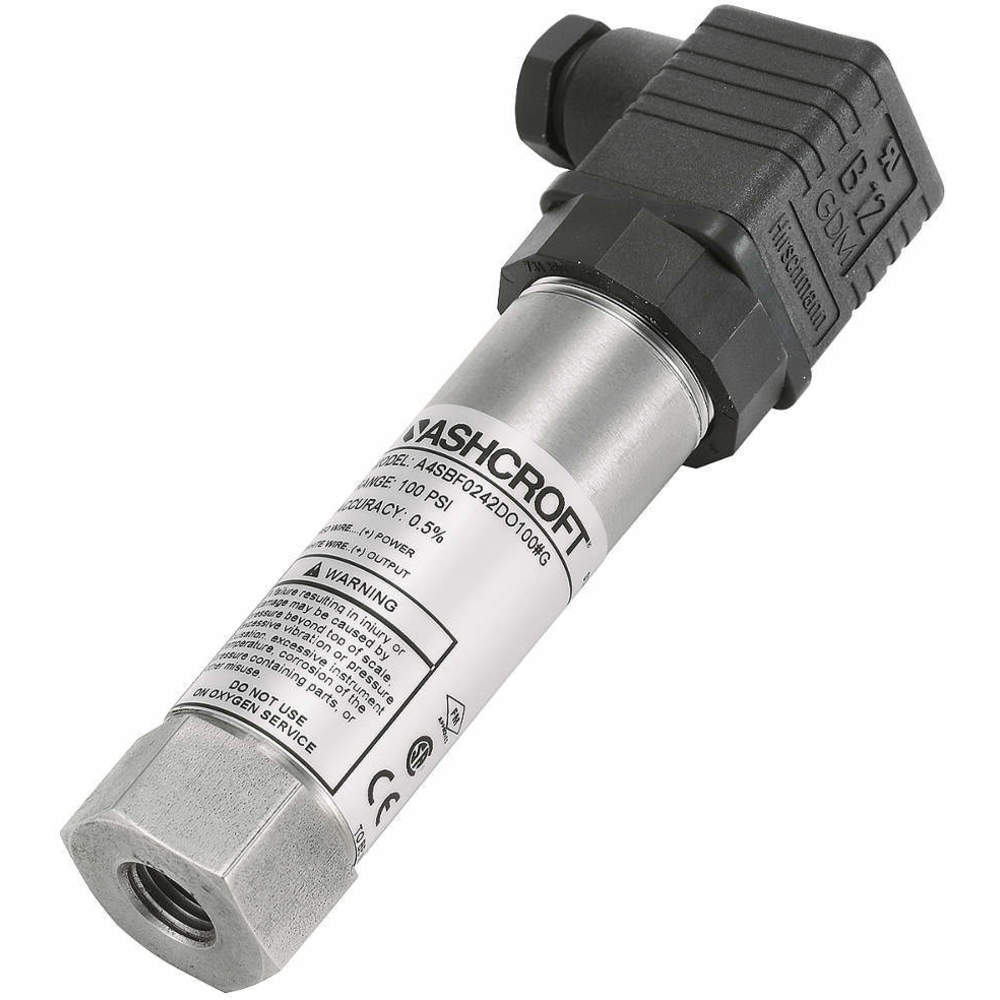

ASHCROFT A4SBF0242D0100# Pressure Transmitter, 0 to 100 PSI, 4 to 20mA DCForm A DIN 43650-A, IP65 /4X
Item: AE3GGAModel: A4SBF0242D0100#Cross Ref: 5DDJ0
7 In Stock
Ships within 2 days via
10.00% off
€758.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Intrinsically Safe Transducer |
| Accuracy | -0.5% to +0.5% |
| Burst Pressure | 2x Range |
| Compatible With | Any Process Compatible With 316 Stainless Steel |
| Electrical Connection | Din 43650 Form A Connector, With Mating Connection Entry |
| Electrical Connections | DIN 43650 Form A Connector |
| Enclosure Rating | IP65, NEMA 4X |
| Explosion/fire Proof | No |
| Features | Board Microprocessor, Explosion Proof And Flame Proof Approvals |
| Fitting Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Ip Rating | IP65 |
| Loop Resistance | Dependent On Loop Supply Voltage |
| Manufacturers Warranty Length | 1 yr. |
| Material | Stainless Steel |
| Max. Pressure | 200 psi |
| Maximum Operating Temperature | 257°F |
| Maximum Pressure | 100 psi |
| Minimum Operating Temperature | -40°F |
| Minimum Pressure | 0 psi |
| Nema Rating | NEMA 4X |
| Number Of Wires | 2 |
| Operating Temp. | -40°F to +257°F |
| Output | 4-20 mA |
| Overall Height | 4.45" |
| Overall Width | 1.06" |
| Overpressure | 1.5 x Range |
| Power Required | 12-30V DC |
| Pressure Range | 0 psi to 100 psi |
| Pressure Units | Psi |
| Process Connection | 1/4" NPT Female |
| Process Connection Gender | Female |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Product Type | Intrinsically Safe-Rated Transmitter |
| Range | 0 psi to 100 psi |
| Response Time | 2 ms |
| Safety Rating | Class I, II And III Div. 1 And 2 Groups A, B, C, D, F And G |
| Series | A4 Series |
| Storage Temperature Range | -40°F to +257°F |
| Thermal Error | -2% to +2% |
| Wiring Entry | With Mating Connection |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 11.3 |
| Ship length (cm) | 2.69 |
| Ship width (cm) | 2.69 |
| HS code | 9026204000 |
| Country of Origin | US |
Product Variants
| Model | Accuracy | Pressure Range | Process Connection | Power Required | Operating Temp. | Housing Material | Number Of Wires | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A4SBMO242DO15# | -0.5% to +0.5% | 0 psi to 15 psi | 1/4" NPT Male | 12-30V DC | -40°F to +257°F | Stainless Steel | 2 | 4-20 mA | €700.02 | |
| A4SBM0242D015#&VAC | -0.5% to +0.5% | -14.7 psi to +15 psi | 1/4" NPT Male | 12-30V DC | -40°F to +257°F | Stainless Steel | 2 | 4-20 mA | €700.02 | |
| A4SBM0242D030# | -0.5% to +0.5% | 0 psi to 30 psi | 1/4" NPT Male | 12-30V DC | -40°F to +257°F | Stainless Steel | 2 | 4-20 mA | €700.02 | |
| A4SBM0242D060# | -0.5% to +0.5% | 0 psi to 60 psi | 1/4" NPT Male | 12-30V DC | -40°F to +257°F | Stainless Steel | 2 | 4-20 mA | €700.02 | |
| A4SBM0242D0100# | -0.5% to +0.5% | 0 psi to 100 psi | 1/4" NPT Male | 12-30V DC | -40°F to +257°F | Stainless Steel | 2 | 4-20 mA | €700.02 | |
| A4SBM0242D0200# | -0.5% to +0.5% | 0 psi to 200 psi | 1/4" NPT Male | 12-30V DC | -40°F to +257°F | Stainless Steel | 2 | 4-20 mA | €700.02 | |
| A4SBM0242D0300# | -0.5% to +0.5% | 0 psi to 300 psi | 1/4" NPT Male | 12-30V DC | -40°F to +257°F | Stainless Steel | 2 | 4-20 mA | €700.02 |
