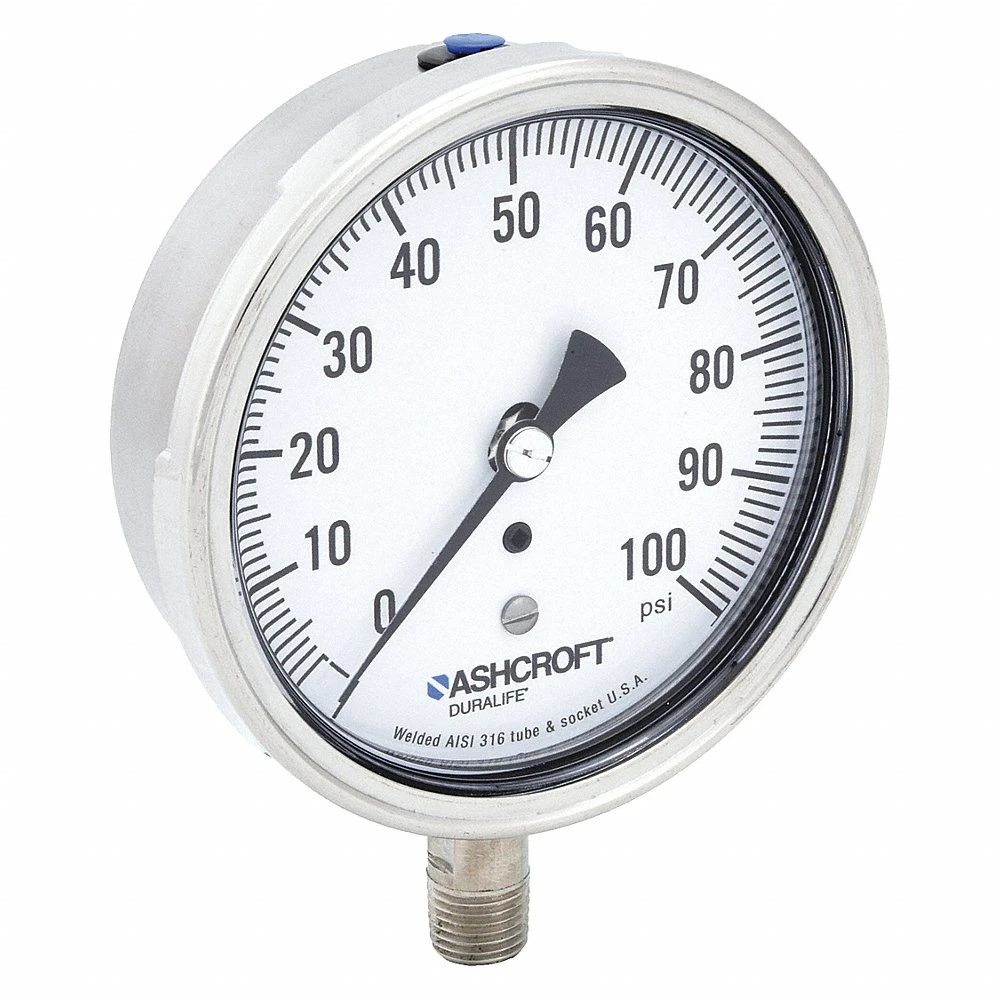

ASHCROFT 351009SW02L100# Industrial Pressure Gauge, 0 PSI / Hg to 100 PSI, 3 1/2 in Dial, 1/4 in NPT Male, Bottom
Item: CN8XYNModel: 351009SW02L100#Cross Ref: 33HT12
7 In Stock
Ships within 2 days via
10.00% off
€172.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -40°F to +200°F |
| Ambient Temp. Range | -40°F to +200°F |
| Application | Autoclave, Boilers, Equipment Skids, Hydraulics, OEM Applications, Pneumatics, Pumps, Refrigeration, Severe Ambient Conditions, Water Pressure Testing |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | No |
| Burst Pressure | 1100 psi |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 1 1/4" |
| Case Diameter | 3.89" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Color | Silver |
| Compatible Process Media | Deionized Water |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 10 |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Stainless Steel |
| Graduations | 10 psi |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed) |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Material Grade | Grade 316L |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 3 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 100 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 100 psi |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 2 |
| Primary Scale Numeric Increments | 10 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +250°F |
| Range | 0 psi to 100 psi |
| Scale Type | Single |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | 1009 Series |
| Smallest Graduation | 2 psi |
| Socket Grade | Grade 316L |
| Socket Material | Stainless Steel |
| Vibration Resistance | None |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 9.88 |
| Ship width (cm) | 9.88 |
| Country of Origin | US |
Product Variants
| Model | Pressure Range Type | Nominal Dial Size | Vibration Resistance | Accuracy | Lens Material | Includes Vent Plug | Liquid-filled Case | Primary Scale Units | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 351009SW02LXLL 200# | Pressure | 3 1/2" | Dry Case Vibration Dampened | -1% to +1% | Polycarbonate | Yes | No | Psi | €201.03 | |
| 351009SW02LXLL 3000# | Pressure | 3 1/2" | Dry Case Vibration Dampened | -1% to +1% | Polycarbonate | Yes | No | Psi | €221.57 | |
| 351009SW02LXLLVAC | Vacuum | 3 1/2" | Dry Case Vibration Dampened | -1% to +1% | Polycarbonate | Yes | No | In Hg | €201.03 | |
| 351009SW02LXLLV/30 | Compound | 3 1/2" | Dry Case Vibration Dampened | -1% to +1% | Polycarbonate | Yes | No | In. Hg/psi | €201.03 | |
| 351009SW02LXLL15 | Pressure | 3 1/2" | Dry Case Vibration Dampened | -1% to +1% | Polycarbonate | Yes | No | Psi | €201.03 | |
| 351009SW02LXLL5000 | Pressure | 3 1/2" | Dry Case Vibration Dampened | -1% to +1% | Polycarbonate | Yes | No | Psi | €221.57 | |
| 351009SW02LXLL30 | Pressure | 3 1/2" | Dry Case Vibration Dampened | -1% to +1% | Polycarbonate | Yes | No | Psi | €201.03 |
