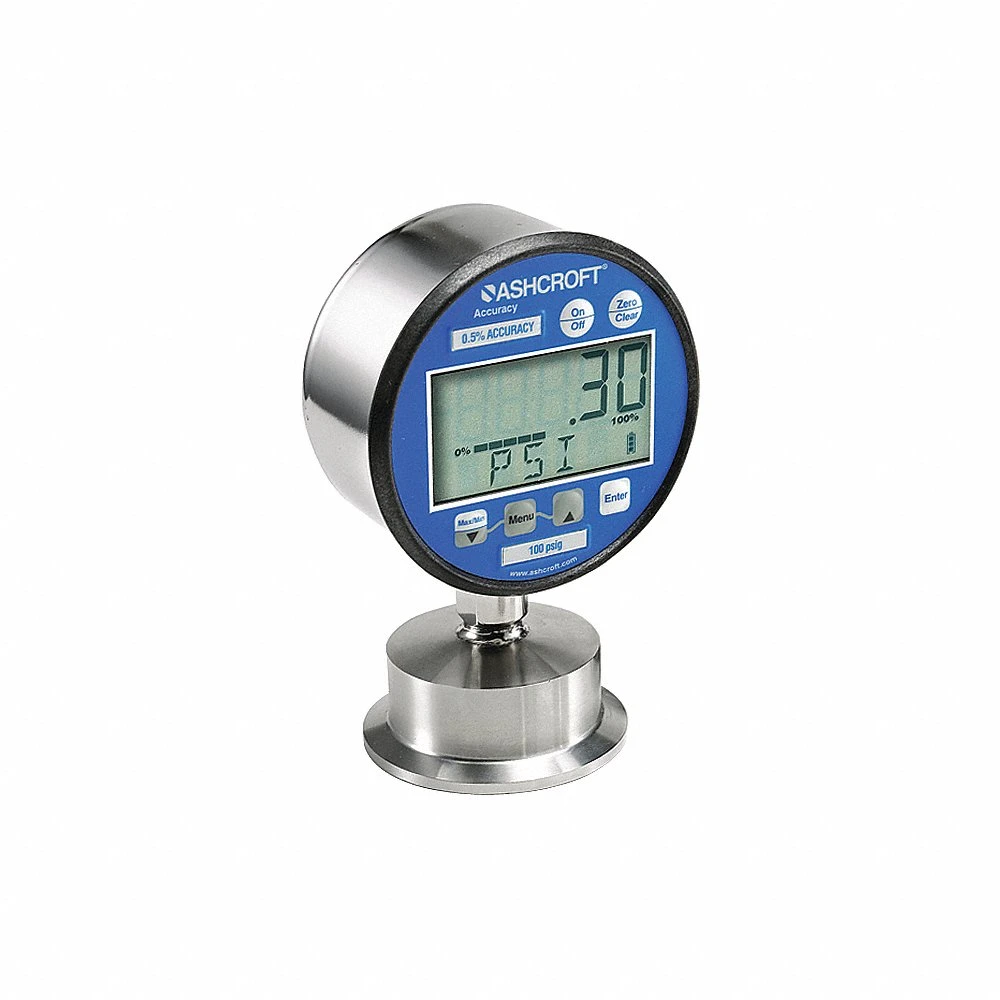

ASHCROFT 302132SD15L30IMV&100#XBKBLCYLMC4 Digital Pressure Gauge, 0 to 100 PSI, 3 Inch Dial, 1 1/2 Inch Tri-Clamp, Bottom
Item: CN8XLGModel: 302132SD15L30IMV&100#XBKBLCYLMC4Cross Ref: 488W95
7 In Stock
Ships within 2 days via
5.00% off
€1,463.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Pressure Gauge |
| Accuracy | -0.25% to +0.25% |
| Ambient Operating Temp. | -14°F to +140°F |
| Ambient Operating Temp. Range | 14°F to 140°F |
| Auto Shutoff | Yes |
| Backlit Screen | Yes |
| Bar Graph | 10 Segments |
| Battery Included | Yes |
| Battery Type | AA Batteries |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | NIST With Data |
| Case Color | Silver |
| Case Construction | 304 Stainless Steel |
| Case Depth | 1 18/25" |
| Case Dia. | 3.33" |
| Case Finish | Electro Polished, Tumbled , Electropolished/Tumbled |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Case Material Grade | Grade 304 |
| Compatible Process Media | Dairy, Food, Pharmaceutical , Dairy, Food, Pharmaceuticals |
| Connection Location | Bottom |
| Connection Size | 1 1/2" |
| Connection Type | Tri Clamp |
| Diaphragm Seal Fill | Glycerin |
| Diaphragm Seal Grade | Grade 316L |
| Diaphragm Seal Material | Stainless Steel |
| Diaphragm Seal Material Grade | Grade 316L |
| Digit Height | 3/5" |
| Digital Gauge Accuracy | +/-0.25% Full Scale |
| Digital Gauge Display Units | Bar, Ft. Wc, In. Hg, In. Wc, Kg/Sq. Cm, KPa, Mbar, Mm Hg, MPa, Psi |
| Display | LCD |
| Display Range | 0 psi to 100 psi |
| Display Screen Type | LCD |
| Display Units | Bar, cm Hg, ft. wc, in. hg, kg/sq. cm, kPa, mm hg, mPa, psi |
| Feature | Bar Graph Battery Display |
| Hazardous Location Rating | Not Rated |
| Includes | Alkaline Batteries |
| Indicator | 10 Segments |
| Ip Rating | IP65 |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polyester |
| Loop Power | 4-20 mA |
| Low Battery Indicator | No |
| Memory Features | Min, Max , Min/Max |
| Memory Storage | Min, Max |
| Mounting Type | Direct |
| No. Of Batteries | 2 |
| No. Of Digits | 5 |
| No. Of Display Digits | 5 |
| Nominal Dial Size | 3" |
| Non Sparking | No |
| Operating Temp. | 14°F to 140°F |
| Peak Hold | Yes |
| Power Source | 4 To 20 mA Loop-Powered , 4-20 mA |
| Power Source Type | Loop Powered |
| Pressure | -30 psi to 0 psi to +100 psi |
| Pressure Gauge Type | Digital Sanitary Pressure Gauge |
| Pressure Type | Compound |
| Primary Display Range | -30 To 0 To +100 |
| Primary Display Units | Psi |
| Primary Range Units | Psi |
| Primary Range Values | -30 to 0 to 100 |
| Primary Units | Psi |
| Process Connection | 1 1/2" Tri Clamp |
| Process Connection Location | Bottom |
| Process Connection Size | 1 1/2" |
| Process Connection Type | Tri Clamp |
| Process Temp. | -14°F to +275°F |
| Resolution | Dependent On Range |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Material Grade | Grade 316L |
| Sensor Type | Diaphragm |
| Series | 2030 Series |
| Socket Material | Stainless Steel |
| Supply Amps | 4-20 mA |
| Temp. Error | -0.04% to +0.04% |
| Weather Proof | Yes |
| Wetted Material | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel, 316L Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 4.37 |
| Ship length (cm) | 8.46 |
| Ship width (cm) | 8.46 |
| Country of Origin | US |
Product Variants
| Model | Accuracy | Power Source | Pressure | Process Connection Location | Nominal Dial Size | Mounting Type | Peak Hold | Case Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 302132SD20LXBKBLCYC4LM1BR | -0.25% to +0.25% | 4 To 20 mA Loop-Powered | 0 psi to 1 psi | Bottom | 3" | Direct | Yes | Silver | €1,540.44 | |
| 302232SD15LXBLCYLMU2100# | -0.25% to +0.25% | 12 To 36V DC Line-Powered | 0 psi to 100 psi | Bottom | 3" | Direct | Yes | Silver | €1,373.89 | |
| 302032SD15LXBLCYLM100# | -0.25% to +0.25% | Battery | 0 psi to 100 psi | Bottom | 3" | Direct | Yes | Silver | €1,175.68 | |
| 302132SD15LXBKBLCYC4LM15# | -0.25% to +0.25% | 4 To 20 mA Loop-Powered | 0 psi to 15 psi | Bottom | 3" | Direct | Yes | Silver | €1,451.23 | |
| 302032SD15LXBLCYLM15# | -0.25% to +0.25% | Battery | 0 psi to 15 psi | Bottom | 3" | Direct | Yes | Silver | €1,175.68 | |
| 302032SD15LXBLCYC4LM15# | -0.25% to +0.25% | Battery | 0 psi to 15 psi | Bottom | 3" | Direct | Yes | Silver | €1,326.15 | |
| 302032SD20LXBLCYLM15# | -0.25% to +0.25% | Battery | 0 psi to 15 psi | Bottom | 3" | Direct | Yes | Silver | €1,164.39 |
