ASHCROFT 20W1005PH02BV/15# Industrial Compound Gauge, 30 in Hg to 0 PSI/Hg to 15 PSI, 2 in Dial, 1/4 in NPT Male
Item: CN8XYDModel: 20W1005PH02BV/15#Cross Ref: 33HP95
7 In Stock
Ships within 2 days via
5.00% off
€35.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compound Gauge |
| Accuracy | +/-3-2-3% , ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B , Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -40°F to +150°F, -40°C to +65°C |
| Ambient Operating Temp. Range | -40°F to +150°F |
| Ambient Temp. | -40°F to +150°F |
| Application | Beverage Dispensing Systems, Filtration Monitoring, Hydraulics, Instrument And Controls, OEM Applications, Paint Sprayers, Pneumatics, Pumps, Water Pressure Testing , General-Purpose Case |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Basic Gauge Wetted Parts | Brass, Bronze |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 1.05" |
| Case Dia. | 2.11" |
| Case Liquid | None |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Compatible Process Media | Water |
| Connection Location | Back |
| Connection Size | 1/4" |
| Connection Type | MNPT |
| Dia. | 2.11" |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Material | Aluminum |
| Dial Size | 2" |
| Dry Dampening Feature | Flutter Guard , Flutterguard |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | ABS |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2" |
| Gauge Panel Mountable | No |
| Gauge Socket Material | Brass |
| Gauge Wetted Parts | Brass, Bronze |
| Graduations | 3 Psi, 5 In. Hg |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Length | 1.9" |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Material | ABS |
| Max. Pressure | 15 psi |
| Mfr. Series | 1005P Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Polyester |
| Nominal Dial Size | 2" |
| Non Sparking | No |
| Operating Temp. | -40°F to +150°F |
| Panel - Mountable | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 30 in. Hg to 15 psi |
| Pressure And Vacuum Gauge Type | Compound Gauge |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge , Industrial Pressure Gauge |
| Pressure Type | Compound |
| Primary Graduations | 0.5 Ph, 1 Ph |
| Primary Pressure | 0 psi to 30 psi |
| Primary Pressure Scale Color | Black |
| Primary Range Smallest Graduation | 1/0.5 |
| Primary Range Units | In. Hg |
| Primary Range Values | -30 to 0 to 15 |
| Primary Scale Minor Graduations | 0.5, 1 , 1/0.5 |
| Primary Scale Units | In. Hg/psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +150°F |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Smallest Graduation | 0.5 Psi, 1 In. Hg |
| Socket Material | Brass |
| Type | Compound Gauge |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.67 |
| Ship length (cm) | 5.36 |
| Ship width (cm) | 5.36 |
| Country of Origin | BR |
Product Variants
| Product | Model | Case Material | Case Color | Pressure | Process Connection Size | Nominal Dial Size | Process Connection Location | Process Connection Type | Process Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
000395 (15W1005SH01B100#) | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 1/8" | 1 1/2" | Center Back | NPT | 1/8" NPT Male | €41.21 | |
 |

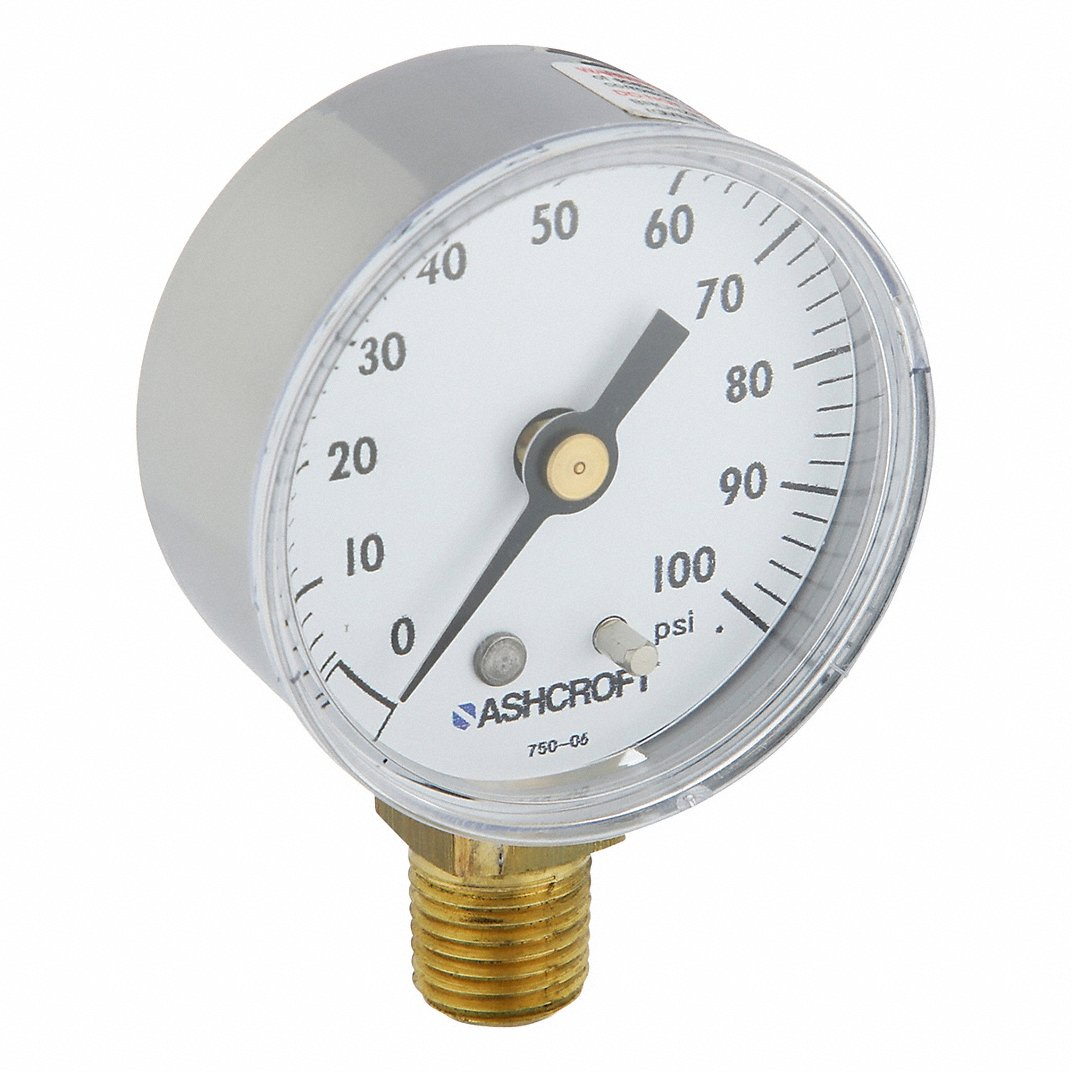

20W1005SH 02L XZG 100# | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 1/4" | 2" | Bottom | NPT | 1/4" NPT Male | €41.21 | |
|
20W1005SH 02B XZG 100# | Stainless Steel | Stainless Steel | 0 psi to 100 psi | 1/4" | 2" | Center Back | NPT | 1/4" NPT Male | €38.34 | |
|
15W1005SH 01B XZG 30# | Stainless Steel | Stainless Steel | 0 psi to 30 psi | 1/8" | 1 1/2" | Center Back | NPT | 1/8" NPT Male | €41.21 | |
 |
20W1005SH 02L XZG 30# | Stainless Steel | Stainless Steel | 0 psi to 30 psi | 1/4" | 2" | Bottom | NPT | 1/4" NPT Male | €41.21 | |
|
20W1005SH02BXZG-30# | Stainless Steel | Stainless Steel | 0 psi to 30 psi | 1/4" | 2" | Center Back | NPT | 1/4" NPT Male | €38.34 | |
|
15W1005SH 01B XZG 60# | Stainless Steel | Stainless Steel | 0 psi to 60 psi | 1/8" | 1 1/2" | Center Back | NPT | 1/8" NPT Male | €41.21 |
