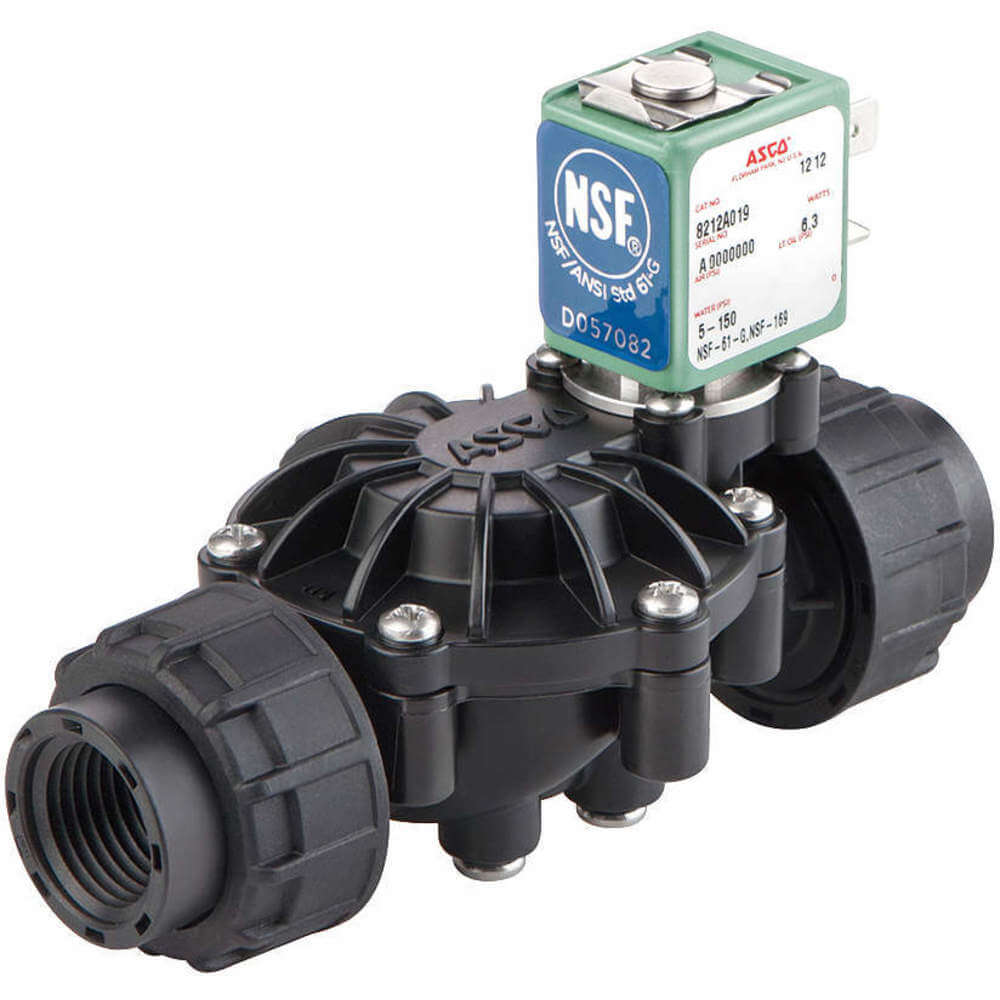

ASCO VALVES K212A044S0100F2 Solenoid Valve 2-way/2-position 3/4 Inch
Item: AF6TBBModel: K212A044S0100F2Cross Ref: 20HP59
7 In Stock
Ships within 2 days via
10.00% off
€617.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Water Conditioning And Purification |
| Body Material | Plastic |
| Class | Class F |
| Coefficient Of Volume | 7 |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Compliance | UL, CSA, NSF 61, 169, 42, 372 |
| Electrical Connection | DIN |
| Environmental Rating - Valves | Indoor, Outdoor, Washdown |
| For Media | Water |
| Hz | 60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Ip Rating | IP65 |
| Max. Ambient Temperature | 120°F |
| Max. Fluid Temp. | 180°F |
| Max. Fluid Temperature | 150°F |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential Air/inert Gas | Not Rated |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Water | 120 psi |
| Media | Water |
| Min. Ambient Temperature | 32°F |
| Min. Operating Pressure Differential | 5 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | 4X |
| Nominal Pipe Size | 3/4" |
| Operating Environment | Indoor, Outdoor, Washdown |
| Operation | Turn And Lock |
| Operation Type | Pilot Operated |
| Orifice Dia. | 3/4" |
| Overall Height | 3 5/16" |
| Overall Length | 4 29/32" |
| Overall Width | 2 19/32" |
| Pipe Size | 3/4" |
| Pipe Size - Valves | 3/4" |
| Safe Working Water Pressure | 120 psi |
| Seal Material | EPDM, TPE |
| Seal Material - Valves | Santoprene |
| Valve Configuration | Configurable |
| Valve Positions | 2 Position |
| Valve Type | High Pressure, Temperature |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 120V AC |
| Wattage | 11 W |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| HS code | 8481809005 |
Product Variants
| Model | Valve Ways And Positions | Operation | Body Material | Max. Operating Pressure Differential Air/inert Gas | Max. Operating Pressure Differential Water | Max. Operating Pressure Differential Light Oil | Max. Fluid Temp. | Coefficient Of Volume | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8212A019S0100F0 | 2 Ways And 2 Positions | NPT Thread | Plastic | 150 psi | 150 psi | Not Rated | 180°F | 4.5 | €382.24 | |
| 8212A019S0100F1 | 2 Ways And 2 Positions | NPT Thread | Plastic | 150 psi | 150 psi | Not Rated | 180°F | 4.5 | €338.78 | |
| 8212A019L1100F0 | 2 Ways And 2 Positions | NPT Thread | PPE | 150 psi | 150 psi | Not Rated | 180°F | 4.5 | €395.34 | |
| 8212A019L1100F1 | 2 Ways And 2 Positions | NPT Thread | Plastic | 150 psi | 150 psi | Not Rated | 180°F | 4.5 | €396.66 | |
| 8212A037S0100F0 | 2 Ways And 2 Positions | NPT Thread | Plastic | 150 psi | 150 psi | Not Rated | 180°F | 7 | €459.60 | |
| 8212A037S0100F1 | 2 Ways And 2 Positions | NPT Thread | Plastic | 150 psi | 150 psi | Not Rated | 180°F | 7 | €462.09 | |
| 8212A037L1100F0 | 2 Ways And 2 Positions | NPT Thread | Plastic | 150 psi | 150 psi | Not Rated | 180°F | 7 | €477.39 |
