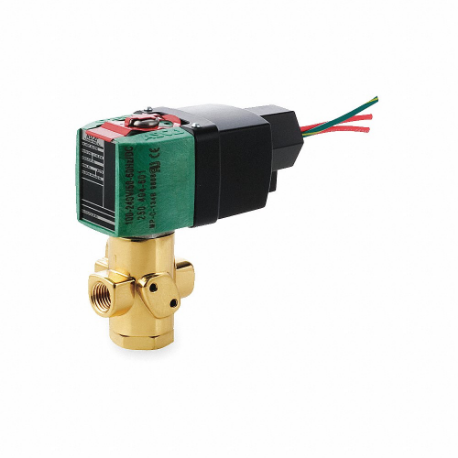

ASCO VALVES 8320R184 100-240 Solenoid Valve, 1/4 Inch Pipe Size Valves, 100/240 Vac, Brass
Item: CN8XGFModel: 8320R184 100-240Cross Ref: 53AY51
7 In Stock
Ships within 2 days via
10.00% off
€313.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Analytical and Diagnostic Equipment, Dust Collector Systems, Life Sciences, Metal Stamping, Press Room |
| Body Material | Brass |
| Center Line Pipe Center Size | 3" |
| Coefficient Of Volume | 0.23 |
| Coil Enclosure | Molded |
| Coil Insulation Class | H |
| Compliance | CSA, UL |
| Electrical Connections | 16" Leads |
| Environmental Rating | Indoor, Outdoor |
| For Media | Air, Inert Gases, Light Oil, Water |
| Frequency | 50 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | BSPP |
| Ip Rating | IP65 |
| Lead Length | 16" |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temperature | 194°F |
| Max. Operating Pressure Differential Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 150 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Min. Operating Pressure Differential | 0 psi |
| Min. Operating Pressure Differential Steam | Not Applicable |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Indoor, Outdoor |
| Operating Pressure Differential Fuel Gas - Maximum | Not Applicable |
| Operating Pressure Differential Fuel Gas - Minimum | Not Applicable |
| Operating Pressure Differential Fuel Oil - Maximum | Not Applicable |
| Operating Pressure Differential Fuel Oil - Minimum | Not Applicable |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Operation | Direct Acting |
| Orifice Dia. | 7/64" |
| Orifice Diameter | 1/8" |
| Outlet Connection Type | BSPP |
| Overall Height | 4 1/32" |
| Overall Length | 1 13/32" |
| Overall Width | 2 7/16" |
| Pipe Size | 1/4" |
| Pipe Size - Valves | 1/4" |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | Direct Mount |
| Valve Ways | 3-Way |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 100-240V AC |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 10.24 |
| Ship length (cm) | 3.57 |
| Ship width (cm) | 6.19 |
| Country of Origin | MX |
Product Variants
| Model | Valve Ways And Positions | Valve Configuration | Pipe Size | Voltage | Operation | Max. Operating Pressure Differential Air/inert Gas | Max. Operating Pressure Differential Water | Max. Operating Pressure Differential Light Oil | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8320R186 100-240 | 3 Ways And 2 Positions | Normally Closed | 1/4" | 100-240V AC | Direct Acting | 90 psi | 90 psi | 90 psi | €353.30 | |
| 8320R172 100-240 | 3 Ways And 2 Positions | Configurable | 1/4" | 100-240V AC | Direct Acting | 160 psi | 160 psi | 160 psi | €343.86 | |

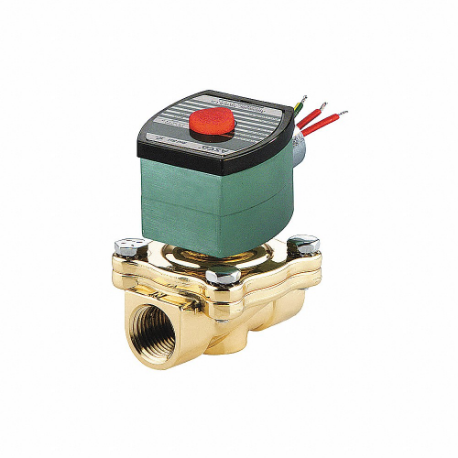

| 8210G056 24/DC | 2-Way/2-Position | Normally Closed | 1 1/2" | 24V DC | Pilot Operated | 135 psi | 120 psi | 120 psi | €1,100.99 |
