ASAHI 1613015 Ball Valve, 1 1/2 Inch Pipe, 1 1/2 Inch Tube, 230 PSI
Item: CN8WPUModel: 1613015Cross Ref: 49FA79
7 In Stock
Ships within 2 days via
10.00% off
€289.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Class 150 |
| Average Surface Roughness | Not Applicable |
| Ball Material | CPVC |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | CPVC |
| Body Seal Material | FKM |
| Body Style | Inline |
| Coefficient Of Volume | 155 |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type | Socket x Threaded |
| Connection Type - Side 1 | Socket |
| Features | True Union Design |
| For Media | Water |
| Handle | Tee |
| Handle Height | 3 1/2" |
| Handle Length | 5 4/25" |
| Handle Material | ABS |
| Handle Type | TEE |
| Included Mounting | Actuator Mounting Pad |
| Max. Pressure | 230 psi |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temperature Range | 30°F to 195°F |
| Nominal Valve Size | 1 1/2" |
| Overall Length | 7.24" |
| Pipe Schedule Compatibility | Schedule 80 |
| Pipe Size | 1 1/2" |
| Port | Full |
| Seal Material | FKM |
| Seat Material | PTFE |
| Stem Material | CPVC |
| Stem Type | Blowout Resistant |
| Temp. Range | +30°F to +195°F |
| Tube Size | 1 1/2" |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Structure | One Piece |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Body Material | Connection Type | Ball Material | Stem Material | Max. Pressure | Seal Material | Handle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
161071015 | Plastic | Threaded | PVC | PVC | 150 psi | EPDM | Tee | - | €95.03 | |
|
161070015 | Plastic | Socket x Socket | PVC | PVC | 150 psi | EPDM | Tee | - | €90.97 | |
|
1626015 | Plastic | Socket | PVDF | PVDF | 230 psi | FKM | Tee | 7.24" | €1,976.82 | |
|
1605015 | Plastic | Socket x Threaded | PVC | PVC | 230 psi | FKM | Tee | 7.24" | €235.12 | |
 |
2511015 | Plastic | Threaded | PVC | PVC | 230 psi | EPDM | Tee | 6.42" | €578.69 | |
|
111605015 | Plastic | Socket x Threaded | PVC | PVC | 230 psi | FKM | Tee | - | €293.70 | |
 |

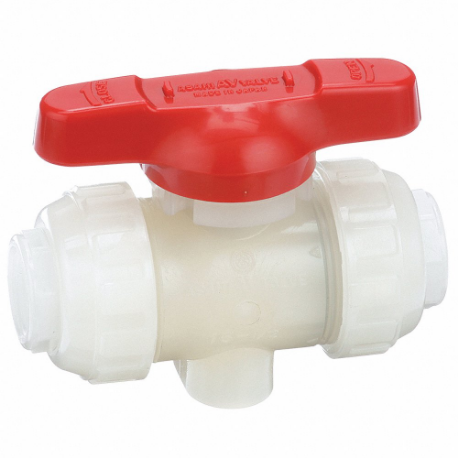

1627015 | Plastic | Socket | PVDF | PVDF | 230 psi | FKM | Tee | 6.42" | €1,976.82 |
