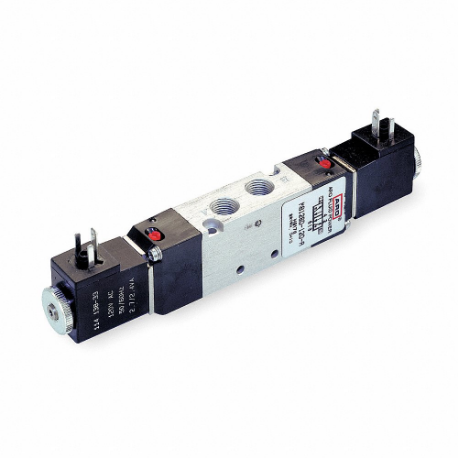

ARO M812SD-120-A Solenoid Air Control Valve, 120V Ac, 1/8 Inch Size Pipe Size, 0 To 115 Psi
Item: CN8VYEModel: M812SD-120-ACross Ref: 4TR78
7 In Stock
Ships within 2 days via
10.00% off
€329.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Ambient Temp. Range | 0°F to +122°F |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Body Ported |
| Coefficient Of Volume | 0.7 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Open |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | NPT |
| Max. Flow | 30 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 115 psi |
| Operating Pressure - Minimum | 22 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 0°F |
| Operational Pressure Range | 0 psi to 115 psi |
| Overall Height | 1" |
| Overall Length | 5 25/32" |
| Overall Width | 1" |
| Override | Non Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | M5 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/8" |
| Power Consumption | 3.1 VA |
| Product Type | Solenoid Air Control Valve |
| Response Time | 17 ms |
| Return Action | Solenoid Return |
| Series | SIERRA Series |
| Shifting Technology | Solenoid, Pilot |
| Spool Material | Aluminum |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open |
| Valve Type | Spool |
| Valve Ways And Positions | 4-Way/2-Position |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Voltage | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Body Style | Override | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M819SS-120-A | 120V AC | 0.3 | 1 3/32" | 23/32" | 4 1/16" | Base Mounted | Non-Locking | 18 mm | €245.28 | |
|
M819SS-024-D | 24V DC | 0.3 | 1 3/32" | 23/32" | 4 1/16" | Base Mounted | Non-Locking | - | €271.12 | |
 |
M819SD-120-A | 120V AC | 0.3 | 1 3/32" | 23/32" | 5 25/32" | Base Mounted | Non-Locking | - | €418.14 | |
|
M819SD-024-D | 24V DC | 0.3 | 1 3/32" | 23/32" | 5 25/32" | Base Mounted | Non-Locking | - | €414.22 | |
 |
M812SD-012-D | 12V DC | 0.7 | 1" | 1" | 5 25/32" | Body Ported | Non Locking | 1/8" | €442.44 | |
|
M812SD-024-D | 24V DC | 0.7 | 1" | 1" | 5 25/32" | Body Ported | Non Locking | 1/8" | €359.18 | |
 |
M812SS-012-D | 12V DC | 0.7 | 1" | 1" | 4 1/4" | Body Ported | - | - | €215.78 |
