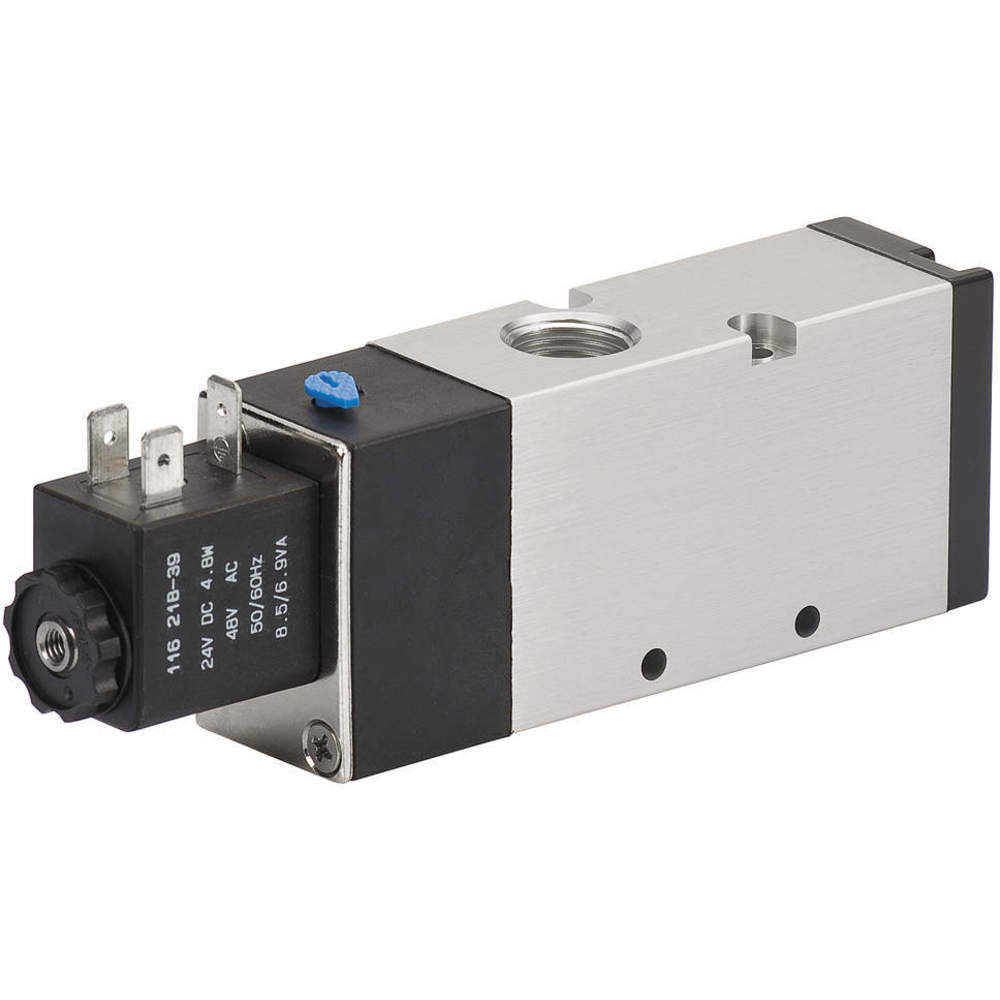

ARO M253SS-024-D Solenoid Air Control Valve 3/8 Inch 24vdc
Item: AE2PAGModel: M253SS-024-DCross Ref: 4YTG5
7 In Stock
Ships within 2 days via
10.00% off
€277.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | +15°F to +122°F |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Body Ported |
| Cfm | 61 CFM |
| Coefficient Of Volume | 1.65 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 3/8" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Closed |
| Flow Rate - Maximum | 61 CFM |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 3/8" |
| Inlet Port Connection Type | NPT |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 115 psi |
| Operating Pressure - Minimum | 45 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 15°F |
| Overall Height | 1 13/16" |
| Overall Length | 5 21/32" |
| Overall Width | 1 3/16" |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 3/8" |
| Power Consumption | 4.8 W |
| Pressure | 45 psi to 115 psi |
| Pressure Rating | 45 psi to 115 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 7 ms |
| Return Action | Spring Return |
| Series | MAXAIR Series |
| Shifting Technology | Pilot, Solenoid |
| Spool Material | Aluminum |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Spool |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 3.81 |
| HS code | 8481200060 |
| Country of Origin | US |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Length | Overall Width | Body Style | Pipe Size | Overall Height | Voltage | Cfm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M252HS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 7/8" | - | 26 CFM | €148.67 | |
 |
M252HS-15 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 5" | - | 26 CFM | €130.92 | |
 |
M252HS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/8" | - | 26 CFM | €125.18 | |
 |
M252LS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 15/16" | - | 26 CFM | €136.83 | |
 |
M252LS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 5 1/16" | - | 26 CFM | €145.70 | |
|
M212HS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/4" | - | 26 CFM | €127.41 | |
 |
M212HS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/4" | - | 26 CFM | €248.90 |
