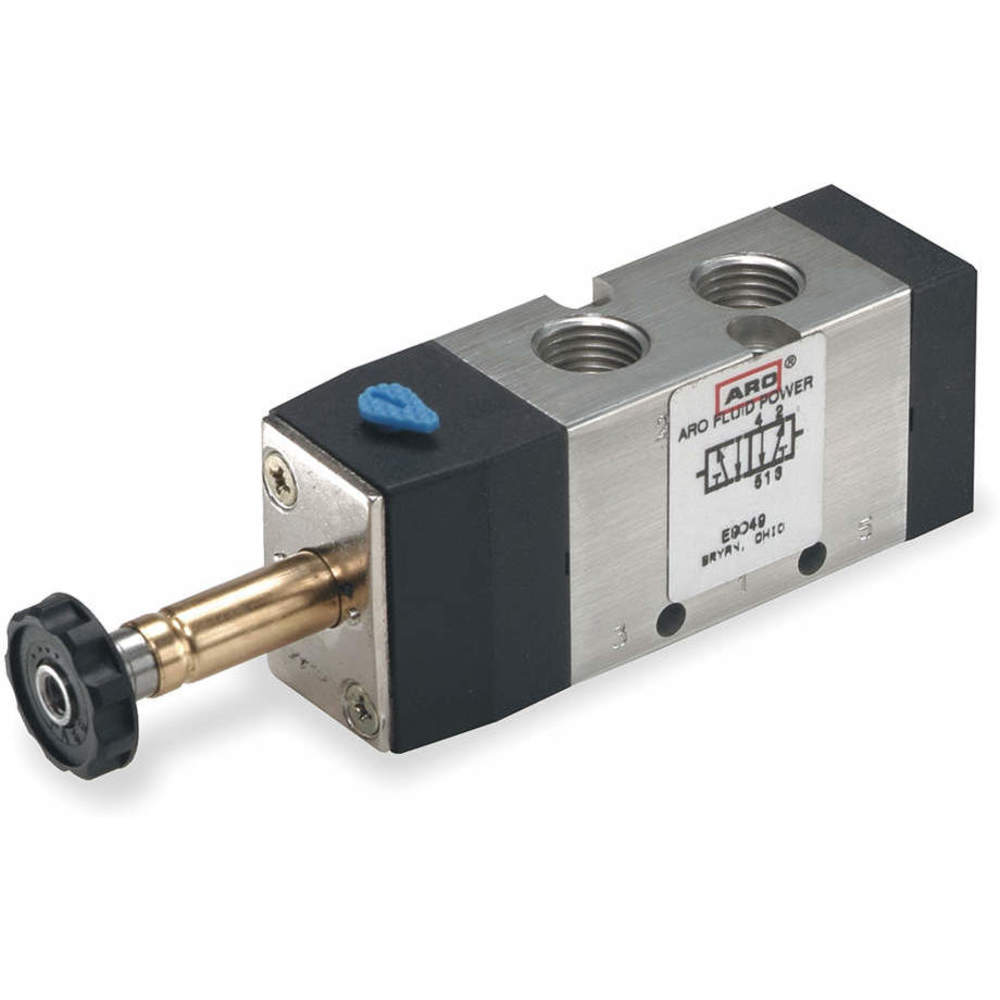

ARO M212SS-000-N Solenoid Air Control Valve 1/4 Inch 4-way
Item: AD8FZVModel: M212SS-000-NCross Ref: 4KA90
7 In Stock
Ships within 2 days via
10.00% off
€166.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | +15°F to +122°F |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Body Ported |
| Cfm | 26 CFM |
| Coefficient Of Volume | 0.7 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Open |
| Flow Rate - Maximum | 26 CFM |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Solenoid Coil Not Included |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/4" |
| Inlet Port Connection Type | NPT |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 115 psi |
| Operating Pressure - Minimum | 45 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 15°F |
| Overall Length | 4 9/16" |
| Overall Width | 1/32" |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/4" |
| Pressure | 45 psi to 115 psi |
| Pressure Rating | 45 psi to 115 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 7 ms |
| Return Action | Spring Return |
| Series | MAXAIR Series |
| Shifting Technology | Pilot, Solenoid |
| Spool Material | Aluminum |
| Vacuum Rating | Not Vacuum Operable |
| Valve Type | Spool |
| Voltage Type | No Coil |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.49 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 2.62 |
| HS code | 8481200060 |
| Country of Origin | TW |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Length | Overall Width | Body Style | Pipe Size | Overall Height | Voltage | Cfm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M252HS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 7/8" | - | 26 CFM | €148.67 | |
 |
M252HS-15 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 5" | - | 26 CFM | €130.92 | |
 |
M252HS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/8" | - | 26 CFM | €125.18 | |
 |
M252LS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 15/16" | - | 26 CFM | €136.83 | |
 |
M252LS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 5 1/16" | - | 26 CFM | €145.70 | |
|
M212HS-10 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/4" | - | 26 CFM | €127.41 | |
 |
M212HS-11 | 0.7 | 1 9/16" | 1 9/16" | Panel Mounted | 1/4" | 4 3/4" | - | 26 CFM | €248.90 |
