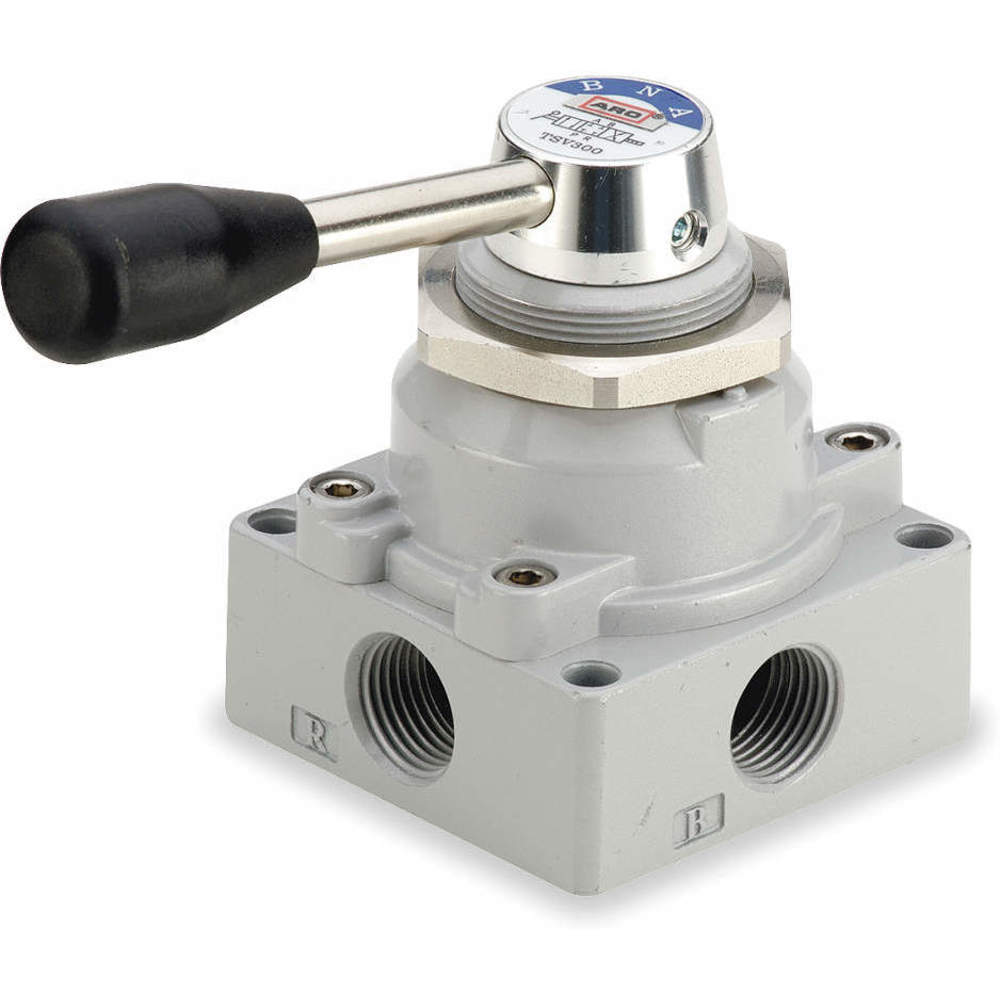

ARO M112LR Manual Air Valve 1/4 Inch 4 Way 2 Position
Item: AE2NZZModel: M112LRCross Ref: 4YTF4
7 In Stock
Ships within 2 days via
10.00% off
€360.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 11 lbs. |
| Actuation Force @ 50 Psi | 11 lbs. |
| Actuator Color | Black |
| Actuator Type | Lever |
| Actuator/return | Rotary Lever/Manual |
| Application | Air Motors, Material Handling, Packaging |
| Body Material | Aluminum |
| Body Style | Panel Mounted |
| Cfm | 40 CFM |
| Coefficient Of Volume | 1.25 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | Threaded |
| Fail Position | Open |
| Flow Rate - Maximum | 40 SCFM |
| For Media | Air |
| Max. Pressure | 140 psi |
| Number Of Ports | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 140 psi |
| Operating Pressure - Minimum | 20 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 15°F |
| Overall Height | 4 5/16" |
| Overall Length | 2 15/16" |
| Overall Width | 2 15/16" |
| Pipe Size | 1/4" |
| Product Type | Manual Air Control Valve |
| Return Action | Manual Return |
| Seal Material | Buna-N |
| Series | MAXAIR Series |
| Temp. Range | +15°F to +122°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/4" |
| Valve Port Connection Type | NPT |
| Valve Type | Rotary |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 10.87 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| HS code | 8481809050 |
| Country of Origin | TW |
Product Variants
| Product | Model | Coefficient Of Volume | Cfm | Connection | Actuator/return | Valve Ways And Positions | Valve Port Size | Max. Cfm | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
M113LR | 2 | 65 CFM | NPT | Rotary Lever/Manual | - | - | - | 2 15/16" | €402.94 | |
|
M114LR | 2.4 | 85 CFM | NPT | Rotary Lever/Manual | - | - | - | 2 15/16" | €409.57 | |
 |

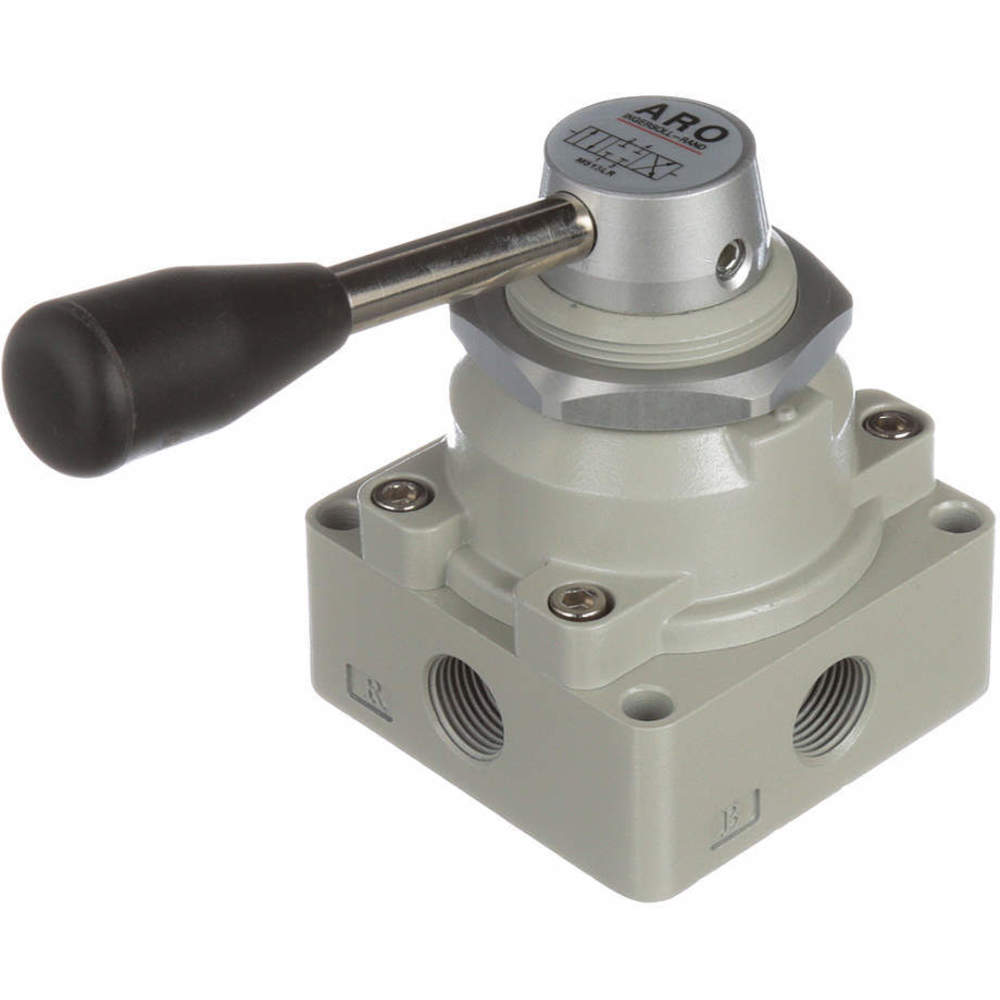

M513LR | 2 | 4.3 CFM | NPT | Rotary Lever/Manual | - | - | - | 2 15/16" | €380.06 | |
 |

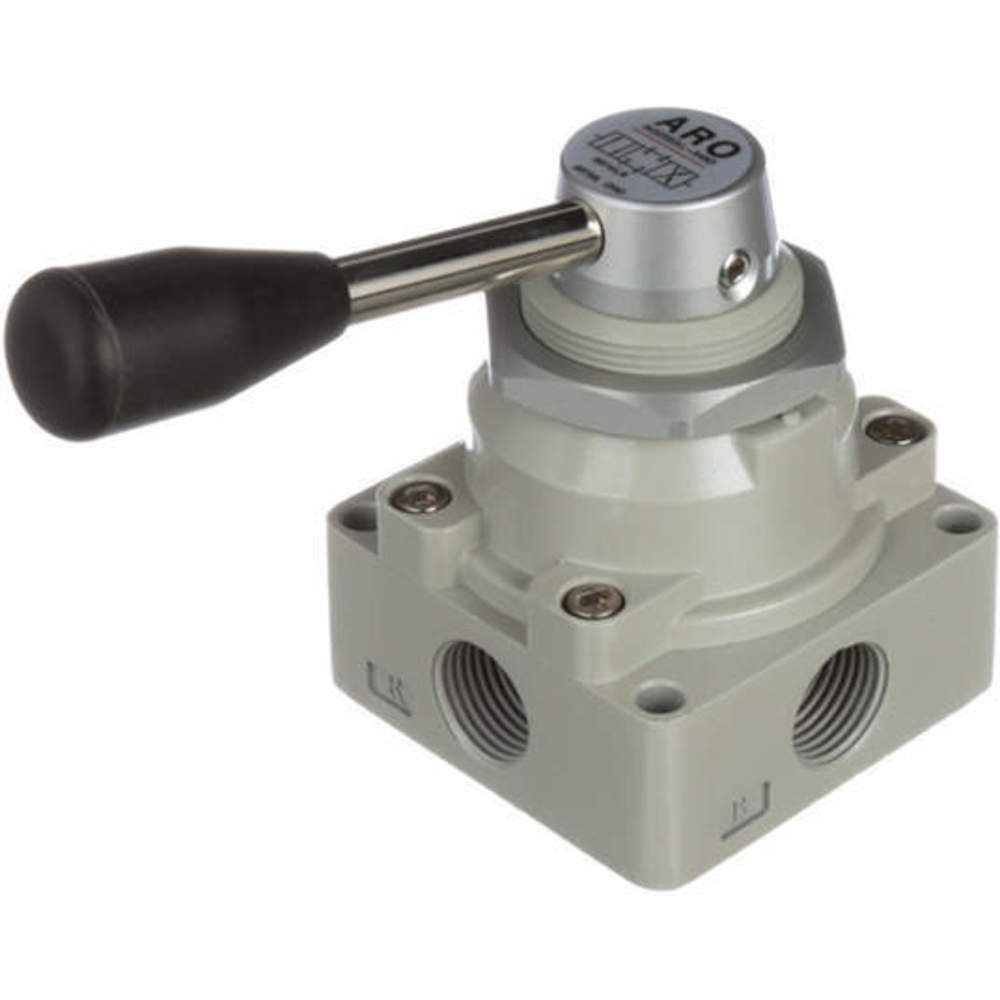

M514LR | 2.4 | 4.3 CFM | NPT | Rotary Lever/Manual | - | - | - | 2 15/16" | €334.28 | |
 |

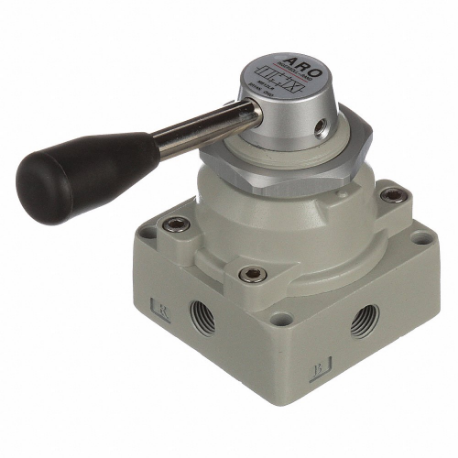

M512LR | 1.25 | - | NPT | Rotary Lever/Manual | 4-Way/3-Position | 1/4" | 40 CFM | 2 15/16" | €386.03 |
