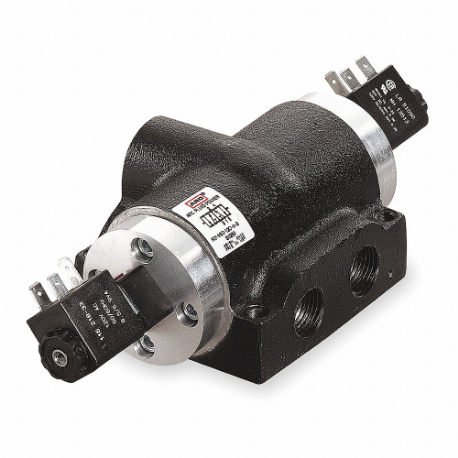

ARO K214SD-120-A Solenoid Air Control Valve, 120V Ac, 1/2 Inch Size Pipe Size, 20 To 150 Psi
Item: CN8VXWModel: K214SD-120-ACross Ref: 2G555
7 In Stock
Ships within 2 days via
10.00% off
€1,122.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Ambient Temp. Range | -10°F to +180°F |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Body Ported |
| Coefficient Of Volume | 2.57 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/2" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Closed |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/2" |
| Inlet Port Connection Type | NPT |
| Lubrication | Lubrication Required |
| Max. Flow | 90 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 20 psi |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | -10°F |
| Operational Pressure Range | 20 psi to 150 psi |
| Overall Height | 2 9/16" |
| Overall Length | 9 11/16" |
| Overall Width | 3 1/2" |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/2" |
| Power Consumption | 6.9 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 60 ms |
| Return Action | Solenoid Return |
| Series | K |
| Shifting Technology | Solenoid, Pilot |
| Spool Material | Aluminum |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Open |
| Valve Type | Spool |
| Valve Ways And Positions | 4-Way/2-Position |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 1.42 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Body Style | Valve Ways And Positions | Pipe Size | Operational Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
K216SS-120-A | 7.5 | 3 1/2" | 4 7/16" | 10 9/16" | Body Ported | - | 3/4" | - | €1,465.75 | |
 |
K213FS | 2.3 | 4" | 5 1/4" | 13" | - | - | 3/8" | - | €692.89 | |
 |
K213TM | 2.3 | 3 1/2" | 5 1/4" | 9 13/16" | Side Ported | - | 3/8" | - | €666.23 | |
 |
K513TM | 2.3 | 3 1/2" | 4" | 9 13/16" | Side Ported | 4-Way/3-Position | - | - | €923.92 | |
 |
K513LM | 2.3 | 6 7/8" | 3 1/2" | 6 7/16" | Side Ported | 4-Way/3-Position | - | - | €862.97 | |
|
K213LS | 2.3 | 6 7/8" | 3 1/2" | 6 7/16" | Side Ported | 4-Way/2-Position | - | - | €654.12 | |
 |
K313LS | 2.3 | 6 7/8" | 3 1/2" | 6 7/16" | Side Ported | 4-Way/3-Position | - | - | €799.06 |
