ARO E212HS Valve Manual 1/4 In
Item: AB9XLTModel: E212HSCross Ref: 2G513
7 In Stock
Ships within 2 days via
10.00% off
€300.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 4.5 lbs. |
| Actuation Force @ 50 Psi | 4.5 lbs. |
| Actuator Color | Black |
| Actuator Type | Button |
| Actuator/return | Button/Spring |
| Body Material | Aluminum |
| Body Style | Panel Mounted |
| Cfm | 26 CFM |
| Coefficient Of Volume (cv) | 0.7 |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | Threaded |
| Fail Position | Open |
| Flow Rate - Maximum | 26 SCFM |
| For Media | Air |
| Lubrication | Lubrication Required |
| Max. Pressure | 150 psi |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 20 psi |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | -10°F |
| Overall Length | 6 1/2" |
| Overall Width | 1 3/4" |
| Pipe Size | 1/4" |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Buna-N |
| Series | E Series |
| Temp. Range | -10°F to +180°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/4" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 4.45 |
| HS code | 8481805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Width | Overall Length | Body Style | Overall Height | Valve Ways And Positions | Center Position | Actuator/return | Actuator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E212FS | 4" | 10 5/16" | Side Ported | 2" | - | - | Foot Pedal/Spring | Foot Pedal | €442.96 | |
 |
E212HM | 1 3/4" | 5 1/2" | Panel Mounted | 1 3/4" | - | - | Button/Manual | Button | €305.18 | |
 |
E212LS | 1 3/4" | 6 1/4" | Side Ported | 3 7/8" | - | - | Lever/Spring | Lever | €325.68 | |
 |
E212TM | 2 3/4" | 9 3/8" | Side Ported | 4 5/8" | - | - | Foot Treadle/Manual | Foot Pedal | €398.53 | |
 |

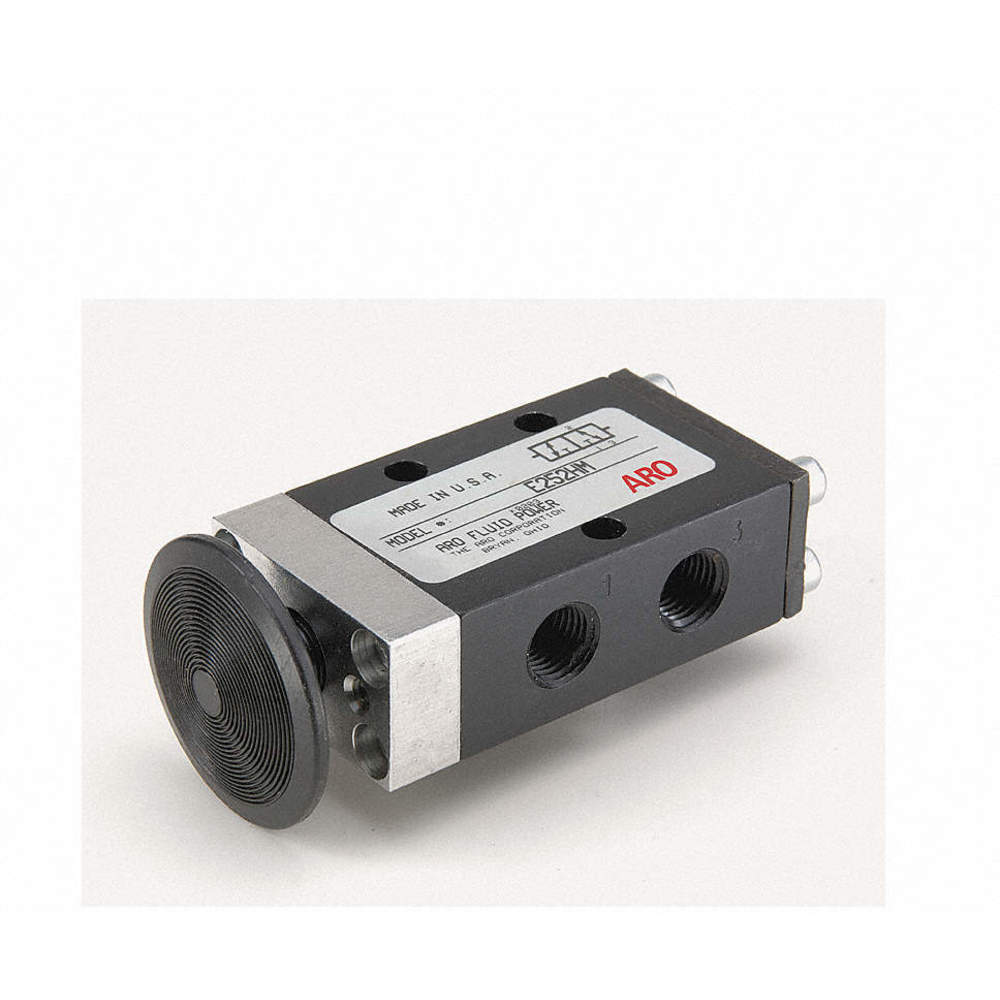

E252HM | 1 3/4" | 4 1/2" | Panel Mounted | 1 3/4" | - | - | Button/Manual | Button | €306.84 | |
|
E252HS | 1 3/4" | 5 1/2" | Panel Mounted | 1 3/4" | - | - | Button/Spring | Button | €332.30 | |
 |
E252LM | 1 3/4" | 4 3/16" | Side Ported | 3 7/8" | - | - | Lever/Manual | Lever | €300.14 |
