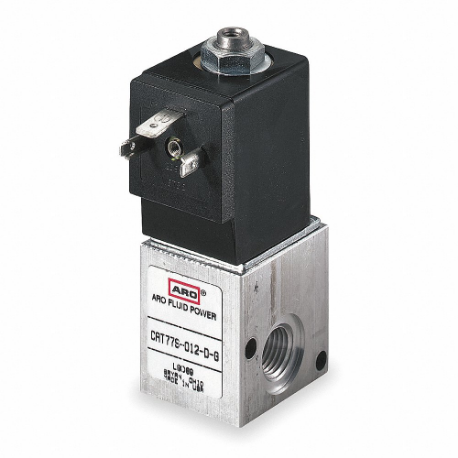

ARO CAT77S-012-D Solenoid Air Control Valve, 12V Dc, 1/4 Inch Pipe Size, 7 Cfm Max. Cfm
Item: CN8VYTModel: CAT77S-012-DCross Ref: 4HN49
7 In Stock
Ships within 2 days via
10.00% off
€203.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | 0°F to +122°F |
| Body Features | Stackable |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Coefficient Of Volume | 0.2 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | #10-32 |
| Exhaust Port Connection Type | NPT |
| Fail Position | Closed |
| Flow Rate - Maximum | 6.9 CFM |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/4" |
| Inlet Port Connection Type | NPT |
| Max. Flow | 7 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Normally Open/normally Closed | Normally Closed |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 0°F |
| Operational Pressure Range | 0 psi to 150 psi |
| Overall Height | 3 9/16" |
| Overall Length | 2 5/32" |
| Overall Width | 1 1/4" |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/4" |
| Power Consumption | 15 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 9 ms |
| Return Action | Spring Return |
| Series | CAT Series |
| Shifting Technology | Direct |
| Spool Material | Stainless Steel |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Type | Poppet |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 5.4 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Coefficient Of Volume | Body Style | Normally Open/normally Closed | Overall Height | Overall Length | Overall Width | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CAT66P-012-D | 12V DC | 0.2 | Body Ported | Normally Closed | 3 9/16" | 2 5/32" | 1 1/4" | 1/4" | €205.71 | |
 |
CAT66P-024-D | 24V DC | 0.2 | Body Ported | Normally Closed | 3 9/16" | 2 5/32" | 1 1/4" | 1/4" | €209.39 | |
 |
CAT88P-120-A | 120V AC | 0.2 | Body Ported | Normally Open | 3 9/16" | 2 5/32" | 1 1/4" | 1/4" | €244.04 | |
 |
CAT77S-120-A | 120V AC | 0.2 | Stackable | Normally Closed | 3 1/2" | 2 1/8" | 1 1/4" | 1/4" | €217.41 | |
 |
CAT88P-012-D | 12V DC | 0.2 | Body Ported | Normally Open | 3 9/16" | 2 5/32" | 1 1/4" | 1/4" | €232.69 | |
 |
CAT66P-024-L | 24V DC | 0.062 | Body Ported | Normally Closed | 3 9/16" | 2 5/32" | 1 1/4" | 1/4" | €251.75 | |
 |
CAT77S-024-L | 24V DC | 0.062 | Base Mounted | Normally Closed | 3 9/16" | 2 5/32" | 1 1/4" | 1/4" | €311.64 |
