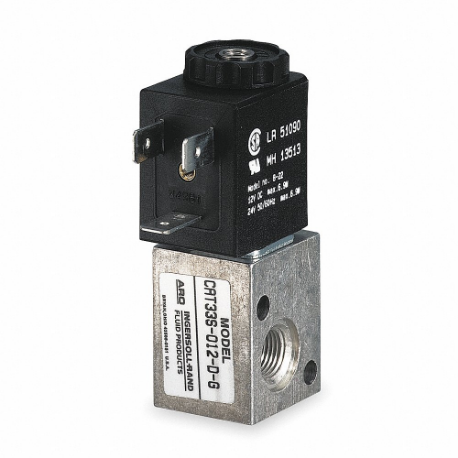

ARO CAT33S-120-A Solenoid Air Control Valve, 120V Ac, 1/8 Inch Size Pipe Size, 0 To 150 Psi
Item: CN8WAHModel: CAT33S-120-ACross Ref: 2G493
7 In Stock
Ships within 2 days via
5.00% off
€157.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. | 0°F to +122°F |
| Body Features | Stackable |
| Body Material | Aluminum |
| Body Style | Body Ported |
| Coefficient Of Volume | 0.048 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | #10-32 |
| Exhaust Port Connection Type | NPT |
| Fail Position | Closed |
| For Media | Air |
| Included Mounting Hardware | Mounting Hardware Not Included |
| Included Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | NPT |
| Max. Flow Rate | 1.8 CFM |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 122°F |
| Min. Operating Pressure | 0 psi |
| Min. Operating Temp. | 0°F |
| Nema Class | NEMA 4 |
| Nema Rating | 4 |
| No. Of Positions | 2 |
| No. Of Ways | 3 |
| Normally Open/normally Closed | Normally Closed |
| Operational Pressure | 0 psi to 150 psi |
| Overall Height | 2 11/16" |
| Overall Length | 1 5/8" |
| Overall Width | 1" |
| Override | Non Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/8" |
| Power Consumption | 6.9 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 9 ms |
| Return Action | Spring Return |
| Series | CAT Series |
| Shifting Technology | Direct |
| Spool Material | Stainless Steel |
| Vacuum | Not Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Type | Poppet |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6.83 |
| Ship length (cm) | 4.13 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Style | Overall Height | Overall Width | Overall Length | Pipe Size | Coefficient Of Volume | Voltage | Actuator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A212SD-120-A | Base Mounted | 3 1/4" | 1 15/16" | 3 31/32" | 1/4" | 1.5 | 120V AC | Double Solenoid | €422.49 | |
 |
M212LS-10 | Panel Mounted | 5 1/4" | 1 9/16" | 1 9/16" | 1/4" | - | - | Twist | €161.21 | |
 |
M211LS | Panel Mounted | 2 9/16" | 5/8" | 1 1/4" | 1/8" | 0.2 | - | Toggle | €101.09 | |
 |
A211SD-000-N | Base Mounted | 3 1/4" | 1 15/16" | 3 31/32" | 1/8" | 0.9 | No Coil | Double Solenoid | €312.19 |
