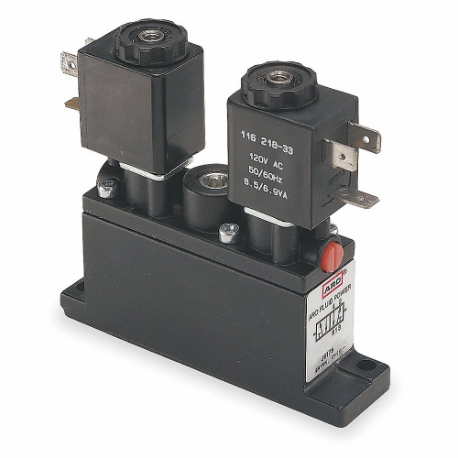

ARO A349SD-120-A Solenoid Air Control Valve, 120V Ac, 1/4 Inch Size Pipe Size, 50 To 150 Psi
Item: CN8VYCModel: A349SD-120-ACross Ref: 2G463
7 In Stock
Ships within 2 days via
5.00% off
€481.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Ambient Temp. | 0°F to +180°F |
| Body Features | Thin |
| Body Material | Zinc |
| Body Style | Base Mounted |
| Center Position | Closed |
| Coefficient Of Volume(cv) | 1.2 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Closed |
| For Media | Air |
| Included Mounting Hardware | Mounting Hardware Not Included |
| Included Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/4" |
| Inlet Port Connection Type | NPT |
| Lubrication | Lubrication Not Required |
| Max. Flow Rate | 61 CFM |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 180°F |
| Min. Operating Temp. | 0°F |
| Nema Class | NEMA 4 |
| Nema Rating | 4 |
| No. Of Positions | 3 |
| No. Of Ways | 4 |
| Operational Pressure | 50 psi to 150 psi |
| Overall Height | 3 1/4" |
| Overall Length | 3 31/32" |
| Overall Width | 1 13/16" |
| Override | Non Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/4" |
| Power Consumption | 6.9 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 20 ms |
| Return Action | Solenoid Return |
| Series | Alpha Series |
| Shifting Technology | Solenoid, Pilot |
| Spool Material | Aluminum |
| Vacuum | 0 in. hg to 29 in. hg , Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Type | Spool |
| Valve Ways And Positions | 4-Way/3-Position |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 9.05 |
| Ship length (cm) | 9.84 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Width | Max. Flow Rate | For Media | Overall Height | Voltage | Pressure Rating | Vacuum | Shifting Technology | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A212SD-000-N | 1 15/16" | 50 CFM | Compressed Air, Inert Gas | - | - | 50 psi to 150 psi | 29 in. hg | Pilot, Solenoid | €306.27 | |
 |
A249SS-120-A | 1 13/16" | 61 CFM | Air | 3 21/32" | 120V AC | 50 psi to 150 psi | Vacuum Operable | Pilot, Solenoid | €275.13 | |
 |
A312SD-012-D | 1 15/16" | 50 CFM | Compressed Air, Inert Gas | 3 5/8" | 12V DC | 50 psi to 150 psi | 29 in. hg | Pilot, Solenoid | €494.08 | |
 |
A312SD-120-A | 1 15/16" | 50 CFM | Compressed Air, Inert Gas | 3 5/8" | 120V AC | 50 psi to 150 psi | 29 in. hg | Pilot, Solenoid | €513.12 | |
|
A712SD-000-N | 1 15/16" | 50 CFM | Compressed Air, Inert Gas | - | - | 50 psi to 150 psi | 29 in. hg | Pilot, Solenoid | €396.20 | |
|
A712SD-120-A | 1 15/16" | 50 CFM | Compressed Air, Inert Gas | - | 120V AC | 50 psi to 150 psi | 29 in. hg | Pilot, Solenoid | €504.96 | |
 |
A213SS-024-D | 2 7/16" | 61 CFM | Compressed Air, Inert Gas | 3 5/8" | 24V DC | 50 psi to 150 psi | 29 in. hg | Pilot, Solenoid | €374.90 |
