ARO A212SS-024-D Solenoid Air Control Valve 1/4 Inch 24vdc
Item: AE2JLNModel: A212SS-024-DCross Ref: 4XT34
7 In Stock
Ships within 2 days via
5.00% off
€252.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. | 0°F to +180°F |
| Body Features | Single |
| Body Material | Zinc |
| Body Style | Body Ported |
| Cfm | 50 CFM |
| Coefficient Of Volume | 1.5 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Open |
| For Media | Air |
| Included Mounting Hardware | Mounting Hardware Not Included |
| Included Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/4" |
| Inlet Port Connection Type | NPT |
| Max. Flow Rate | 50 CFM |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 180°F |
| Min. Operating Temp. | 0°F |
| Nema Class | NEMA 4 |
| Nema Rating | 4 |
| No. Of Positions | 2 |
| No. Of Ways | 4 |
| Overall Length | 3 7/16" |
| Overall Width | 1 15/16" |
| Override | Non Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/4" |
| Power Consumption | 5.4 W |
| Pressure | 50 psi to 150 psi |
| Pressure Rating | 50 psi to 150 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 22 ms |
| Return Action | Spring Return |
| Series | Alpha Series |
| Shifting Technology | Pilot, Solenoid |
| Spool Material | Aluminum |
| Vacuum | 29 in. hg , Vacuum Operable |
| Vacuum Range | 29" Hg |
| Valve Action | Normally Open |
| Valve Type | Spool |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 4.92 |
| HS code | 8481809050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Operating Pressure | Overall Width | Max. Flow Rate | For Media | Voltage | Electrical Connection Type | Electrical Connection | Spool Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

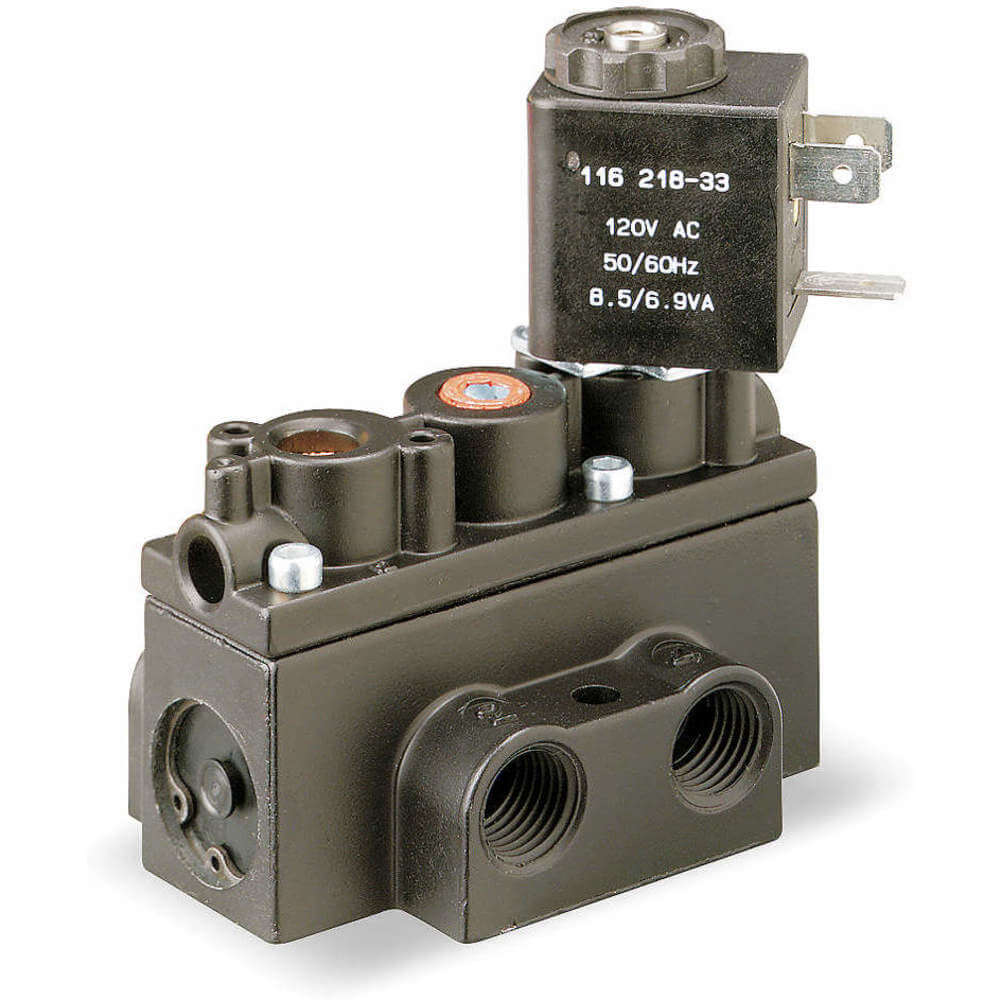

A211SS-120-A | 150 psi | 1 15/16" | 30 CFM | Compressed Air, Inert Gas | 120V AC | Din Solenoid Connector | DIN Connectors | Aluminum | €261.42 | |
 |

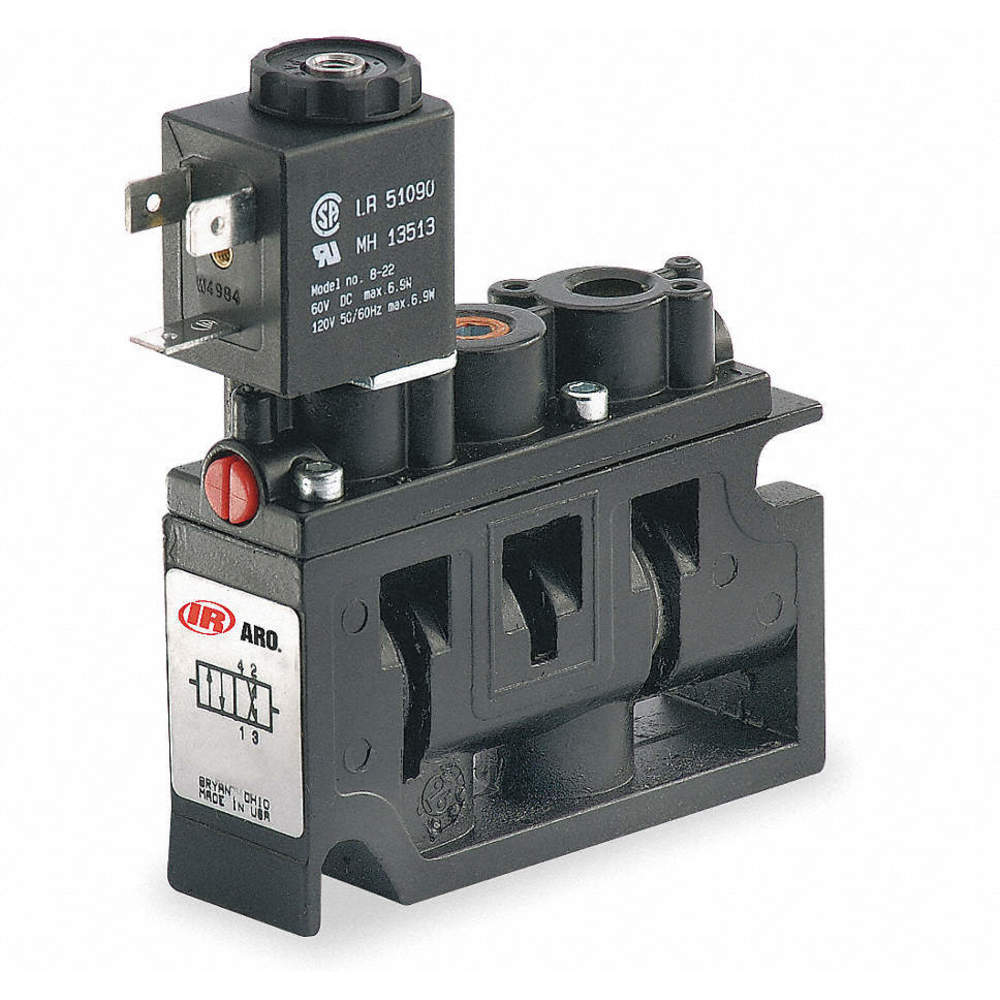

A222SS-120-A | 150 psi | 1" | 63 CFM | Compressed Air, Inert Gas | 120V AC | Din Solenoid Connector | DIN Connectors | Aluminum | €279.04 | |
 |

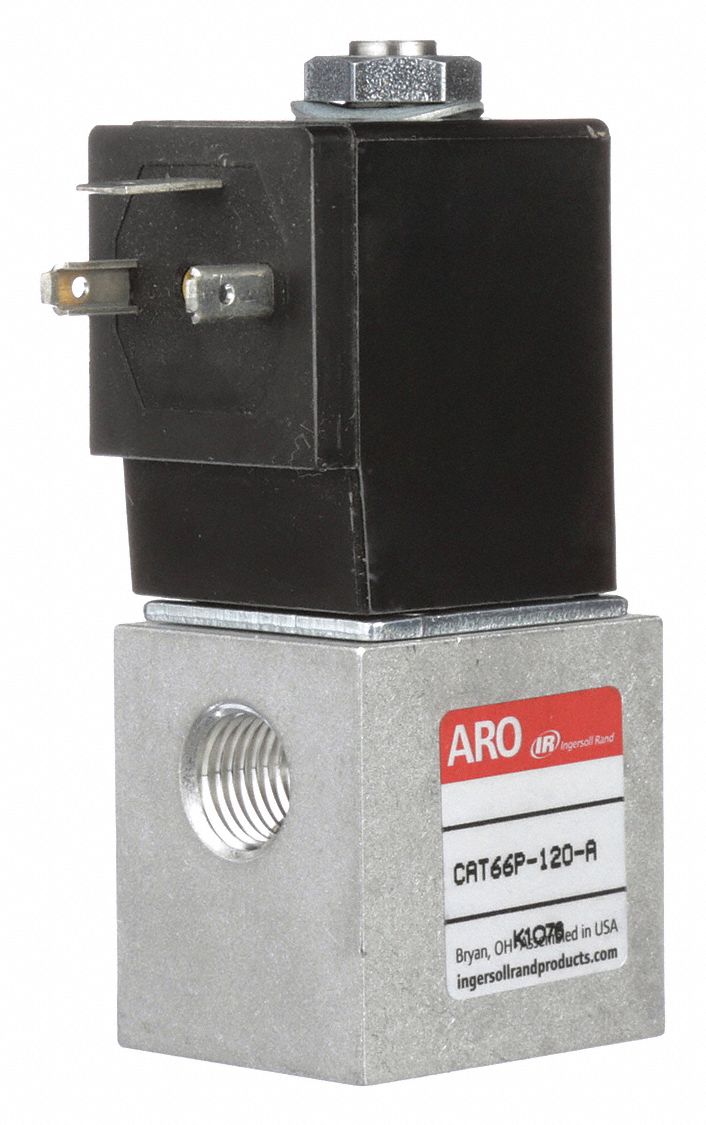

CAT66P-120-A | 150 psi | 1 1/4" | 6.9 CFM | Air | 120V AC | Din Solenoid Connector | DIN Connectors | Stainless Steel | €212.42 | |
 |
M812SS-024-D | 115 psi | 23/32" | 30 CFM | Air | 24V DC | Din Solenoid Connector | DIN Connectors | Aluminum | €216.62 | |
 |

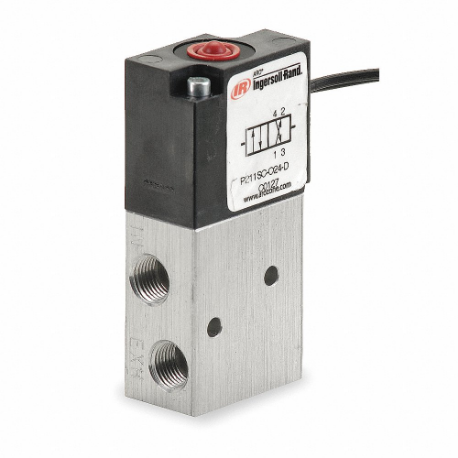

P211SS-024-D | 125 psi | 1" | 6.9 CFM | Air, Inert Gas | 24V DC | Hardwired | Lead Wire | - | €269.83 | |
 |

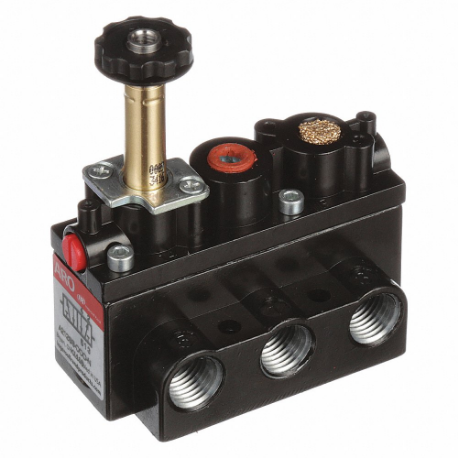

A212SS-000-N | 150 psi | 1 15/16" | 50 CFM | Air | No Coil | Din Solenoid Connector | DIN Connectors | Aluminum | €217.84 | |
 |

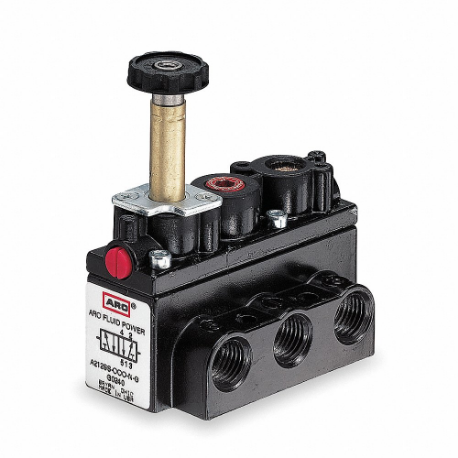

A211SS-000-N | 150 psi | 1 15/16" | 30 CFM | Compressed Air, Inert Gas | No Coil | Din Solenoid Connector | DIN Connectors | Aluminum | €203.04 |
