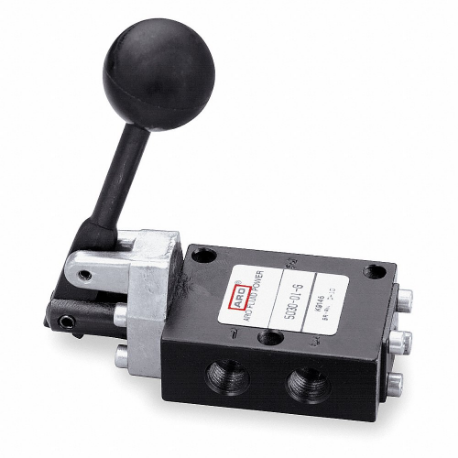

ARO 5030-10 Manual Air Control Valve, 1/8 Inch Valve Port Size, NPT, Lever/Manual
Item: CN8VURModel: 5030-10Cross Ref: 2F939
7 In Stock
Ships within 2 days via
10.00% off
€218.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Color | Black |
| Actuator Type | Lever |
| Actuator/return | Lever/Manual |
| Body Material | Aluminum |
| Body Style | Side Ported |
| Coefficient Of Volume | 0.4 |
| Coefficient Of Volume (cv) | 0.43 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | Threaded |
| Fail Position | Open, Closed |
| Flow Rate - Maximum | 16 SCFM |
| For Media | Air |
| Lubrication | Lubrication Required |
| Max. Cfm | 16 CFM |
| Max. Pressure | 150 psi |
| Normally Open/normally Closed | Normally Closed |
| Number Of Ports | 3 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 20 psi |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | -10°F |
| Overall Height | 3 13/16" |
| Overall Length | 3 1/2" |
| Overall Width | 1 1/2" |
| Product Type | Manual Air Control Valve |
| Return Action | Manual Return |
| Seal Material | Buna-N |
| Series | 50 Series |
| Spool Material | Steel |
| Temp. Range | -10°F to +180°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Port Size | 1/8" |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 8.1 |
| Ship length (cm) | 8.81 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Width | Overall Length | Actuator Type | Actuator/return | Max. Cfm | Coefficient Of Volume | Body Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

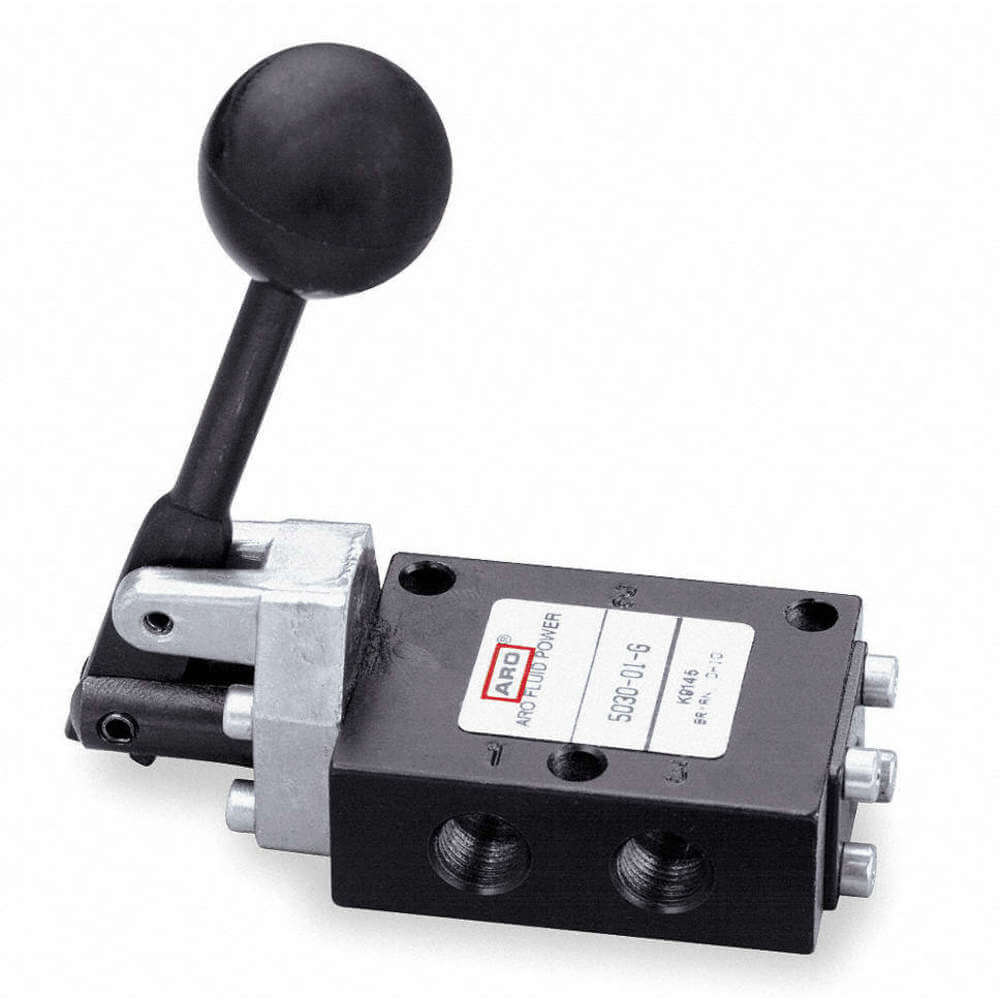

5040-10 | 3 13/16" | 1 1/2" | 4" | Lever | Lever/Manual | - | 0.4 | Side Ported | €259.85 | |
 |

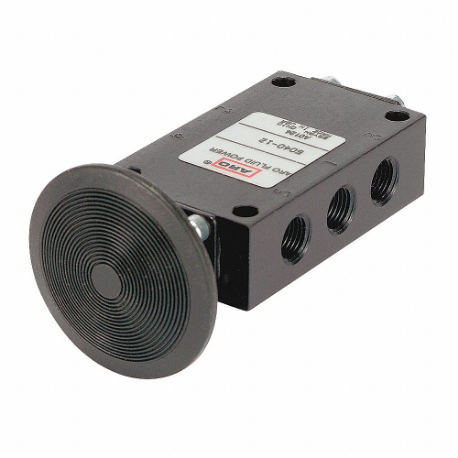

5040-02 | 1 3/4" | 1 1/2" | 3 7/8" | Button | Button/Spring | 16 CFM | 0.4 | Side Ported | €266.60 | |
 |

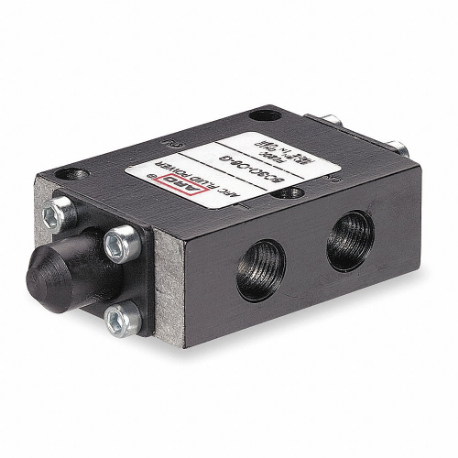

5040-06 | 3/4" | 1 1/2" | 3 5/16" | Cam Stem | Cam Stem/Spring | 16 CFM | 0.4 | Side Ported | €405.80 | |
|
5030-06 | 3/4" | 1 1/2" | 3 13/16" | Cam Stem | Cam Stem/Spring | 16 CFM | 0.4 | Side Ported | €284.03 | |
|
5030-01 | 3 13/16" | 1 1/2" | 3 1/2" | Lever | Lever/Spring | 16 CFM | 0.4 | Side Ported | €248.49 | |
|
5040-01 | 3 13/16" | 1 1/2" | 4" | Lever | Lever/Spring | 16 CFM | 0.4 | Side Ported | €268.08 | |
 |

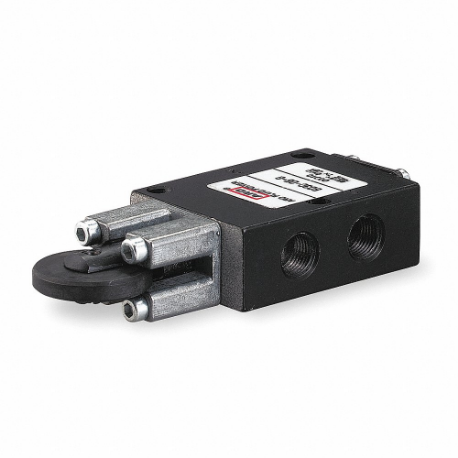

5030-05 | 3/4" | 1 1/2" | 3 3/4" | Roller | Roller Cam/Spring | 7.5 CFM | 0.4 | Side Ported | €249.09 |
