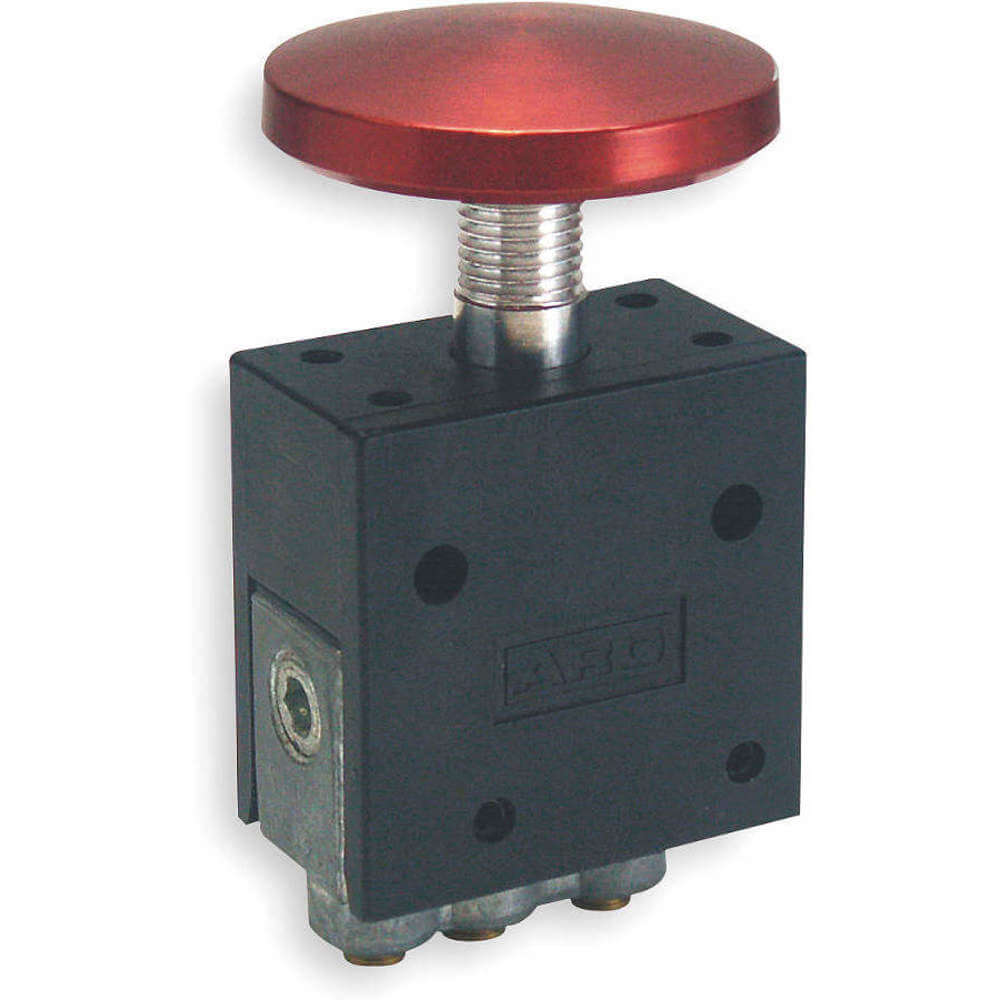

ARO 461-2 Manual Air Valve Palm Button 5/32 Tubing
Item: AB2KPDModel: 461-2Cross Ref: 1MLD8
7 In Stock
Ships within 2 days via
10.00% off
€187.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 3 lbs. |
| Actuation Force @ 50 Psi | 3 lbs. |
| Actuator Color | Red |
| Actuator Type | Button |
| Actuator/return | Button/Spring |
| Body Material | Composite |
| Body Style | Panel Mounted |
| Cfm | 7.5 CFM |
| Coefficient Of Volume | 0.104 |
| Connection | Tube |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 5/32" |
| Exhaust Port Connection Type | Unthreaded |
| Fail Position | Open, Closed |
| Flow Rate - Maximum | 4 SCFM |
| For Media | Air |
| Max. Pressure | 150 psi |
| Normally Open/normally Closed | Normally Closed |
| Number Of Ports | 3 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 30 psi |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 2 3/4" |
| Overall Length | 2 7/16" |
| Overall Width | 2 7/16" |
| Pipe Size | 0.156" |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Series | 460 Series |
| Temp. Range | -25°F to +200°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open/Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 5/32" |
| Valve Port Connection Type | Push On |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 6.11 |
| HS code | 8481805090 |
| Country of Origin | US |
