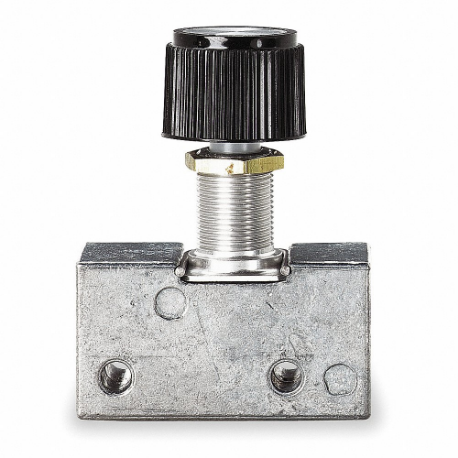

ARO 224-C Manual Air Control Valve, 1/8 Inch Valve Port Size, NPT, Button/Spring, 150 psi
Item: CN8VVCModel: 224-CCross Ref: 2F907
7 In Stock
Ships within 2 days via
10.00% off
€165.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 57 oz. |
| Actuation Force @ 50 Psi | 57 oz. |
| Actuator Color | Gray |
| Actuator Type | Button |
| Actuator/return | Button/Spring |
| Application | Air Cylinders, Gates, Slides |
| Body Material | Die Cast Zinc |
| Body Style | Panel Mounted |
| Coefficient Of Volume | 0.195 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | Threaded |
| Fail Position | Open, Closed |
| For Media | Air |
| Max. Cfm | 7.5 CFM |
| Max. Pressure | 150 psi |
| Maximum Flow Rate | 7.5 SCFM |
| Normally Open/normally Closed | Normally Closed |
| Number Of Ports | 3 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 30 psi |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 1 3/16" |
| Overall Length | 1 3/4" |
| Overall Width | 11/16" |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Series | 200 Series |
| Temp. Range | +32°F to +160°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open/Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Port Size | 1/8" |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coefficient Of Volume | Body Style | Overall Height | Pipe Size | Actuator/return | Actuator Type | Cfm | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
203-C | 0.195 | Inline | 1 3/16" | 1/8" | Roller Lever/Spring | Roller | 7.5 CFM | 11/16" | €104.41 | |
 |
223-C | 0.195 | Panel Mounted | 1 3/16" | 1/8" | Toggle/Manual | Toggle | 7.5 CFM | 11/16" | €184.50 | |
 |
201-2-C | 0.104 | Inline | 1 5/8" | 0.156" | Fingertip Lever/Spring | Lever | 4 CFM | 11/16" | €118.89 | |
 |
224-2-C | 0.104 | Inline | 1 5/8" | 0.156" | Button/Spring | Button | 4 CFM | 11/16" | €200.57 | |
 |
203-2-C | 0.104 | Inline | 1 5/8" | 0.156" | Long Roller Lever/Spring | Roller | 4 CFM | 11/16" | €123.86 | |
 |
209-2-C | 0.104 | Inline | 1 5/8" | 0.156" | Pin Plunger/Spring | Plunger | 4 CFM | 11/16" | €97.01 | |
 |
202-C | 0.195 | Inline | 1 3/16" | 1/8" | Roller Lever/Spring | Roller | 7.5 CFM | 11/16" | €91.77 |
