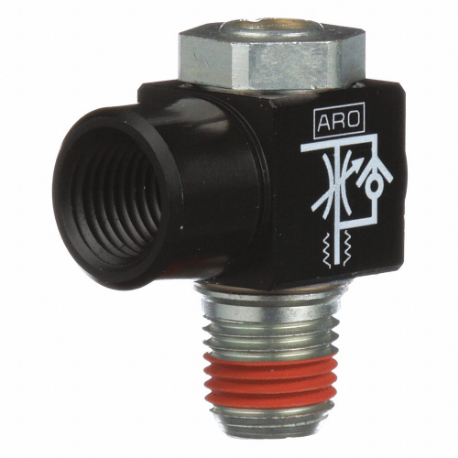

ARO 119307-500 Valve, 1/2 Inch NPT, 1/2 Inch NPT, 150 PSI, 130 cfm Max. CFM Valves
Item: CN8VTLModel: 119307-500Cross Ref: 2F855
7 In Stock
Ships within 2 days via
5.00% off
€125.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve |
| Adjustment Method | Screwdriver |
| Body | Nickel Plated Brass |
| Body Material | Brass |
| Configuration | Angle |
| Control Direction | Uni-Directional |
| Directions Controlled | 1 |
| Finish | Nickel Plated |
| Flow Rate | 130 CFM |
| Height | 1.828" |
| Inlet Port | 1/2" MNPT |
| Inlet Port Connection Gender | Male |
| Inlet Port Connection Size | 1/2" |
| Inlet Port Connection Type | NPT |
| Inlet Size | 1/2" |
| Length | 2.281" |
| Max. Flow Rate | 130 SCFM |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 158°F |
| Max. Pressure | 150 psi |
| Min. Operating Pressure | 15 psi |
| Min. Operating Temp. | 32°F |
| Operating Pressure | 15 psi to 150 psi |
| Operating Temp. | 32°F to 158°F |
| Outlet Port | 1/2" FNPT |
| Outlet Port Connection Gender | Female |
| Outlet Port Connection Size | 1/2" |
| Outlet Port Connection Type | NPT |
| Outlet Port Type | NPT |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 1 13/16" |
| Overall Length | 2 5/16" |
| Overall Width | 1 1/8" |
| Product Type | Flow Control Valve |
| Rotation | 360° |
| Seal Material | Buna N |
| Speed Adjustment | Screwdriver |
| Spring Material | Stainless Steel |
| Width | 1.109" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 4.64 |
| Ship length (cm) | 5.79 |
| Ship width (cm) | 2.82 |
| Country of Origin | HU |
Product Variants
| Product | Model | Max. Operating Pressure | Flow Rate | Inlet Size | Outlet Size | Body Material | Min. Operating Temp. | Max. Flow Rate | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
119308-250 | 145 psi | - | - | - | Stainless Steel | -32°F | 3.5 CFM | MNPT x FNPT | €76.83 | |
 |
119310-125 | 145 psi | - | - | - | Stainless Steel | -32°F | 6 CFM | MNPT x Tube | €72.77 | |
 |
119310-375 | 145 psi | - | - | - | Stainless Steel | -32°F | 3.5 CFM | MNPT x Tube | €103.30 | |
 |
119309-250 | 145 psi | - | - | - | Stainless Steel | -32°F | 23.3 CFM | MNPT x Tube | €74.39 | |
 |
119308-500 | 145 psi | - | - | - | Stainless Steel | -32°F | 32.5 CFM | MNPT x FNPT | €129.22 | |
|
119308-125 | 145 psi | - | - | - | Stainless Steel | -32°F | 60.4 CFM | MNPT x FNPT | €61.81 | |
|
119308-375 | 145 psi | - | - | - | Stainless Steel | -32°F | 23.3 CFM | MNPT x FNPT | €91.83 |
