ARMSTRONG WORLD INDUSTRIES 182212-645 Hydronic Circulating Pump, Std, Flanged, 2/5 HP
Get it by Tuesday, Dec 23
10.00% off
€1,603.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump |
| Amps | 4.1A |
| Body Gasket Material | EPDM |
| Compatible Discharge Pipe Size | 2" |
| Compatible Media Type | Water |
| Compatible Pipe Size | 2" |
| Connection Type | Flanged |
| Face To Face Dimension | 8 1/2" |
| Flange Or Union Included | No |
| For Pipe Size | 2" |
| For Use With | Hydronic Systems |
| For Use With Potable Systems | No |
| Frequency | 60 Hz |
| Housing Material | Cast Iron |
| Hp | 2/5 hp |
| Impeller Material | Plastic |
| Includes | (2) Gaskets, Nuts And Bolts |
| Manufacturer Warranty Length | 3 yrs. |
| Max. Flow Rate @ 1 Ft. | 128 GPM |
| Max. Flow Rate @ 10 Ft. | 95 GPM |
| Max. Flow Rate @ 15 Ft. | 74 GPM |
| Max. Flow Rate @ 20 Ft. | 42 GPM |
| Max. Flow Rate @ 5 Ft. | 112 GPM |
| Max. Head | 22 ft. |
| Max. Media Temp. | 230°F |
| Max. Operating Pressure | 150 psi |
| Max. Rpm | 3350 RPM |
| Maximum Flow Rate @ 20 Feet Of Head | 42 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 112 GPM |
| Media Type | Water |
| Min. Media Temp. | 32°F |
| Mounting Location | Inline |
| Nameplate Voltage | 120V AC |
| No. Of Flange Mounting Holes | 4 |
| No. Of Speeds | 1 |
| Overall Height | 8 1/2" |
| Overall Length | 10.9" |
| Overall Width | 5 1/5" |
| Phase | Single |
| Phase And Brand | Armstrong Pumps Inc. Single Phase |
| Pump Housing Material | Cast Iron |
| Pump Type | Standard |
| Series | E30.2-2 Series |
| Series Family | E.2 |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 12.24 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 27.69 |
| Ship width (cm) | 13.21 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | No. Of Speeds | Face To Face Dimension | Pump Type | Phase | Connection Type | Hp | For Use With Potable Systems | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
106284MF-742 | 115V AC | 1 | 19 1/2" | Energy Efficient, 3 Piece | Single | Flanged | 1/2 hp | No | €6,787.49 | |
|
116475-742 | 115V AC | 1 | 13 1/2" | Energy Efficient, 3 Piece | Single | Flanged | 3/4 hp | No | €6,865.04 | |
 |
119282-313 | 240V AC | Variable | 10" | Energy Efficient | Single | Flanged | 1/2 hp | No | €7,005.14 | |
 |
119281-313 | 115V AC | Variable | 10" | Energy Efficient | Single | Flanged | 1/2 hp | No | €7,005.14 | |
|
182212-604 | 240V AC | 1 | 8 1/2" | - | Single | Flanged | 2/5 hp | No | €1,764.54 | |
|
110223-326 | 115V AC | 3 | 7 1/4" | Multi Speed | Single | Flanged | 1/25 hp | No | €791.85 | |
 |

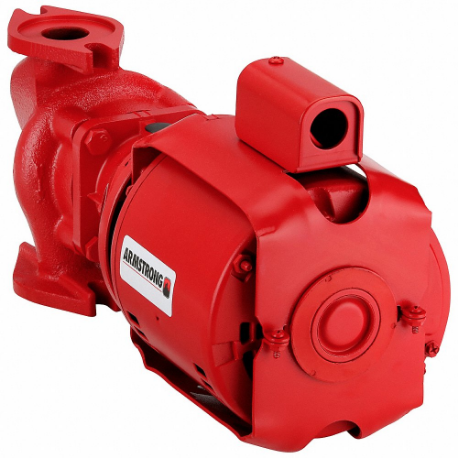

174031MF-013 | 115V AC | 1 | 6 1/2" | 3 Piece | Single | Flanged | 1/12 hp | No | €899.71 |
