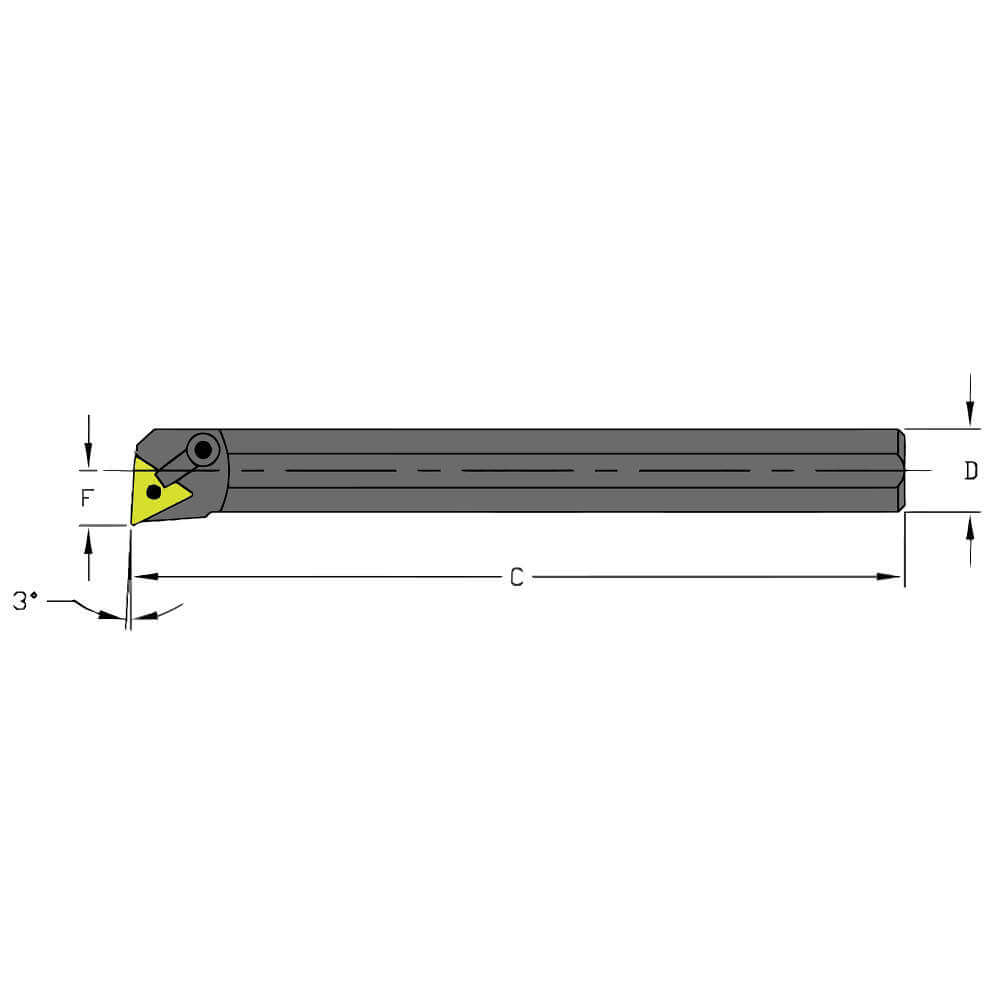

ARCH CUTTING TOOLS S24U MTUNR4 Boring Bar
Get it by Tuesday, Aug 25
€550.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Boring Bar |
| Bar Dia. | 1 1/2" |
| Bar Dia. | 1.500" |
| Center To Cutting Tip | 0.89" |
| Compatible Hardware | CL-20 Clamp, ITSN-433 Shim Seat, NL-46 Lock Pin, XNS-47 Clamp Screw |
| Coolant Fed | Non Coolant Through |
| Cutting Angle | -3° |
| Cutting Application | Boring |
| Cutting Direction | Right |
| Cutting Edge Angle | -3° |
| Head Material | Steel |
| Inscribed Circle | 1/2" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 1/2" |
| Insert Shape | Triangle |
| Insert Size | 432 |
| Insert Style | TNMG |
| Insert Thickness | 0.187" |
| Lead Angle | -3° |
| Min. Bore Dia. | 1.73" |
| Mounting Style | Clamp And Lock Pin |
| No. Of Inserts | 1 |
| Overall Length | 14" |
| Rake | Negative |
| Shank Dia. | 1 1/2" |
| Shank Material | High Speed Steel |
| Side Cutting Edge Angle | -3° |
| Style | Solid |
| Type | Turning |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Model | Min. Bore Dia. | Bar Dia. | Mounting Style | Shank Material | Shank Dia. | Insert Size | Cutting Direction | Cutting Edge Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S02.5G SCLDR1.2 | 0.175" | 0.156" | Screw Lock | - | 5/32" | 1.20.6 | Right | -5° | €112.80 | |
| S03.5G SCLDL1.5 | 0.245" | 0.218" | Screw Lock | High Speed Steel | 7/32" | 1.510 | Left | -5° | €112.80 | |
| S03.5G SCLDR1.5 | 0.245" | 0.218" | Screw Lock | High Speed Steel | 7/32" | 1.510 | Right | -5° | €112.80 | |
| S03G SCLDL1.2 | 0.205" | 0.187" | Screw Lock | High Speed Steel | 3/16" | 1.20.6 | Left | -5° | €112.80 | |
| S03G SCLDR1.2 | 0.205" | 0.187" | Screw Lock | High Speed Steel | 3/16" | 1.20.6 | Right | -5° | €112.80 | |
| S03G SWLCR1.2 | 0.205" | 0.187" | Screw Lock | High Speed Steel | 3/16" | 1.210.5 | Right | -5° | €125.47 | |
| S04G SCLDL1.5 | 5/16" | 1/4" | Screw Lock | High Speed Steel | 1/4" | 1.510 | Left | -5° | €112.80 |
