ARCH CUTTING TOOLS A16S MWLNL4 Boring Bar
Get it by Friday, Aug 21
€394.35 /unit
Add To Cart
Request a Quote
Payment
Delivery

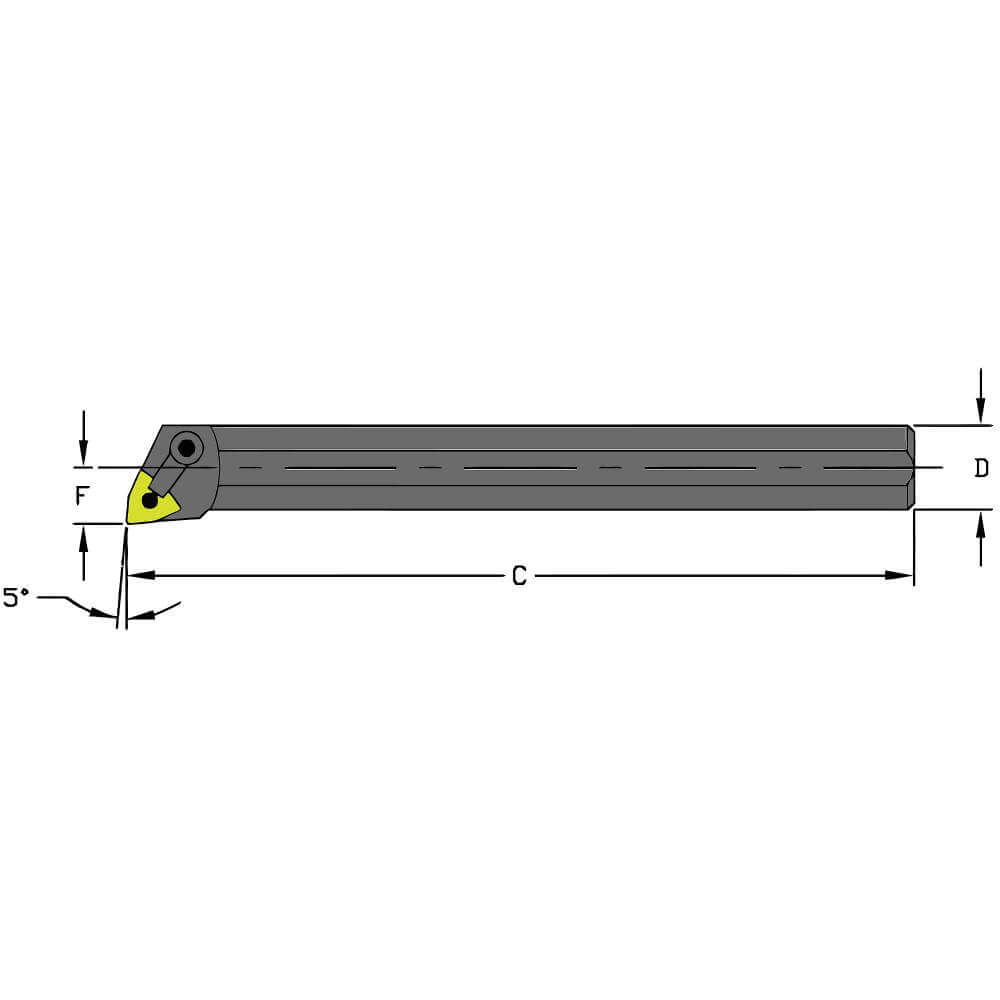

Product Specifications:
| Item | Boring Bar |
| Bar Dia. | 1 1/5" |
| Bar Dia. | 1.200" |
| Center To Cutting Tip | 0.64" |
| Compatible Hardware | CL-20 Clamp, NL-44 Lock Pin, XNS-47 Clamp Screw |
| Coolant Fed | Coolant Through |
| Cutting Angle | -5° |
| Cutting Application | Boring |
| Cutting Direction | Left |
| Cutting Edge Angle | -5° |
| Head Material | Steel |
| Inscribed Circle | 1/2" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 1/2" |
| Insert Shape | Trigon |
| Insert Size | 432 |
| Insert Style | WNMG |
| Insert Thickness | 0.187" |
| Lead Angle | -5° |
| Min. Bore Dia. | 1.2" |
| Mounting Style | Clamp And Lock Pin |
| No. Of Inserts | 1 |
| Overall Length | 10" |
| Rake | Negative |
| Shank Dia. | 1" |
| Shank Material | High Speed Steel |
| Side Cutting Edge Angle | -5° |
| Style | Coolant Thru, Solid |
| Type | Turning |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 3.18 |
| Country of Origin | US |
Product Variants
| Model | Min. Bore Dia. | Bar Dia. | Shank Material | Mounting Style | Shank Dia. | Insert Size | Style | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A04G SCLDL1.5 | 5/16" | 1/4" | High Speed Steel | Screw Lock | 1/4" | 1.510 | Coolant Thru, Solid | Left | €146.36 | |
| A04G SCLDL1.5-172 | 5/16" | 1/4" | High Speed Steel | Screw Lock | 1/4" | 1.510 | Coolant Thru, Solid | Left | - | RFQ
|
| A04G SCLDR1.5 | 5/16" | 1/4" | High Speed Steel | Screw Lock | 1/4" | 1.510 | Coolant Thru, Solid | Right | €146.36 | |
| A04G SCLDR1.5-172 | 5/16" | 1/4" | High Speed Steel | Screw Lock | 1/4" | 1.510 | Coolant Thru, Solid | Right | - | RFQ
|
| A04G STUCL1.2 | 5/16" | 1/4" | High Speed Steel | Screw Lock | 1/4" | 1.21.20.5 | Coolant Thru, Solid | Left | €146.36 | |
| A04G STUCL1.2-172 | 5/16" | 1/4" | High Speed Steel | Screw Lock | 1/4" | 1.21.20.5 | Coolant Thru, Solid | Left | - | RFQ
|
| A04G STUCR1.2 | 5/16" | 1/4" | High Speed Steel | Screw Lock | 1/4" | 1.21.20.5 | Coolant Thru, Solid | Left Hand | €146.36 |
