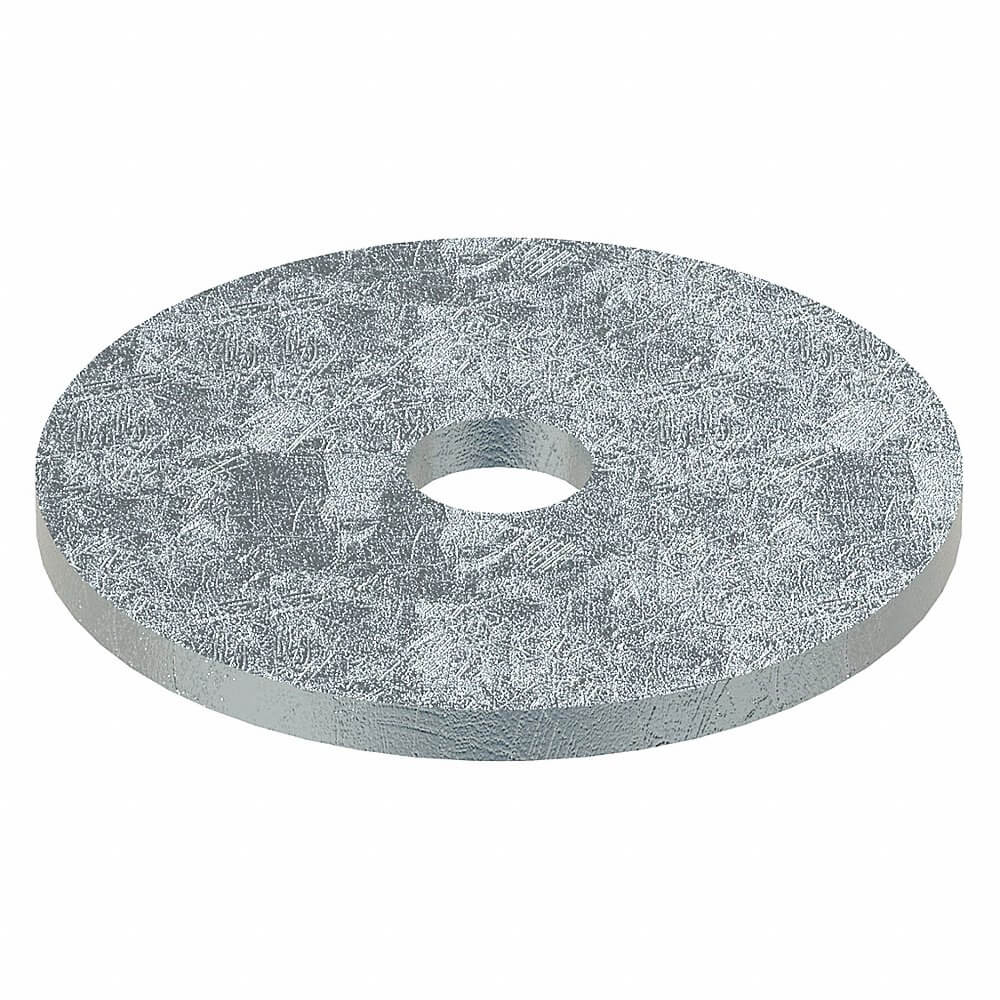

APPROVED VENDOR Z9684 Thick Fender Washer, 3/8 In Fits Bolt Size, Oversized, 13/32 In I.D., Steel
Item: AE6JBBModel: Z9684Cross Ref: 5TA34
7 In Stock
Ships within 2 days via
5.00% off
€19.25 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thick Fender Washer |
| Finish | Zinc Plated |
| Fits Bolt Size | 3/8" |
| Flat Washer Type | Oversized |
| For Screw Size | 3/8" |
| Hardness | Rockwell B55 |
| Inside Dia. | 0.406" , 13/32" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Thickness | 1/8" |
| Min. Thickness | 1/8" |
| Outside Dia. | 2" |
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Rockwell Hardness | B55 |
| System Of Measurement | Imperial |
| Thickness | 1/8" |
| Thickness Tolerance | -0.004" to +0.005" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 5.08 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Hardness | Min. Thickness | Max. Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1JLP7 | 7/32" | 3/4" | 0.075" | 0.073" | +0.029" | Rockwell B40 | 0.075" | - | 100 | €55.80 | |
 |
U38130.043.0001 | 1/2" | 1 1/4" | 0.083" | 0.083" | 0.064" to 0.104" | - | 0.083" | 350°C | 50 | €11.33 | |
 |
U38130.050.0001 | 0.563" | 1 3/8" | 0.109" | 0.109" | 0.086" to 0.132" | - | 0.109" | 350°C | 50 | €13.07 | |
 |
U38130.056.0001 | 5/8" | 1 15/32" | 0.109" | 0.109" | 0.086" to 0.132" | - | 0.109" | 350°C | 25 | €9.08 | |
 |
U38130.062.0001 | 11/16" | 1 3/4" | 0.134" | 0.134" | 0.108" to 0.16" | - | 0.134" | 350°C | 25 | €10.49 | |
 |
U38130.087.0001 | 15/16" | 2 1/4" | 0.156" | 0.165" | 0.136" to 0.192" | - | 0.165" | 350°C | 10 | €11.42 | |
 |
U38130.100.0001 | 1.063" | 2 1/2" | 0.156" | 0.165" | 0.136" to 0.192" | - | 0.165" | 350°C | 5 | €7.69 |
