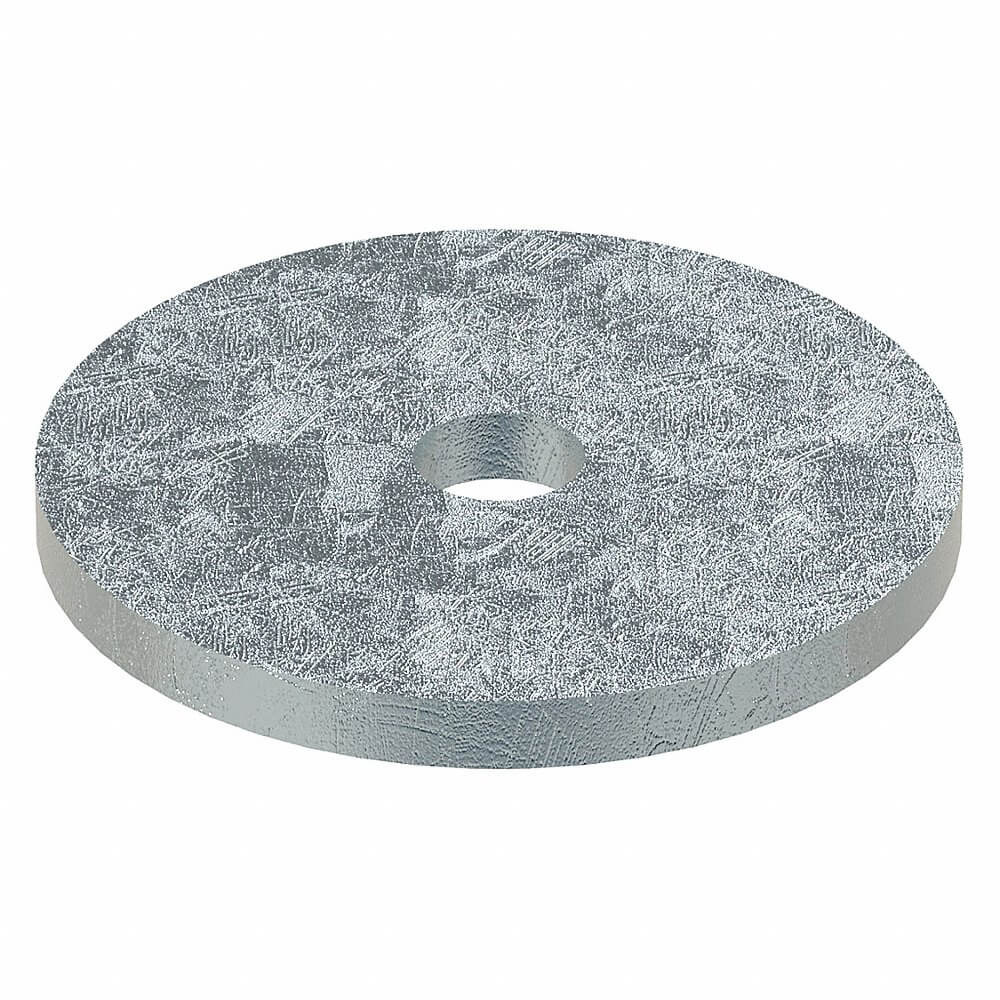

APPROVED VENDOR Z9680 Thick Fender Washer, 1/4 In Fits Bolt Size, Oversized, 9/32 In I.D.
Item: AE6JAXModel: Z9680Cross Ref: 5TA30
7 In Stock
Ships within 2 days via
10.00% off
€17.58 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thick Fender Washer |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 1/4" |
| Flat Washer Type | Oversized |
| For Screw Size | 1/4" |
| Hardness | Rockwell B55 |
| Inside Dia. | 9/32" |
| Inside Diameter | 0.281" |
| Inside Diameter Tolerance | -0.01" to +0.01" |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Maximum Thickness | 1/8" |
| Minimum Thickness | 1/8" |
| Outside Dia. | 1 1/2" |
| Outside Diameter Tolerance | -0.01" to +0.01" |
| Rockwell Hardness | B55 |
| System Of Measurement | Imperial |
| Thickness | 1/8" |
| Thickness Tolerance | -0.004" to +0.005" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Temp. Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1JLP5 | 5/16" | 11/32" | 2" | 0.051" | +0.029" | Rockwell B40 | - | - | 50 | €36.92 | |
 |
U38130.043.0001 | 7/16" | 1/2" | 1 1/4" | 0.083" | 0.064" to 0.104" | - | - | - | 50 | €11.79 | |
 |
U38130.050.0001 | 1/2" | 0.563" | 1 3/8" | 0.109" | 0.086" to 0.132" | - | - | - | 50 | €13.62 | |
 |
U38130.056.0001 | 9/16" | 5/8" | 1 15/32" | 0.109" | 0.086" to 0.132" | - | - | - | 25 | €9.47 | |
 |
U38130.062.0001 | 5/8" | 11/16" | 1 3/4" | 0.134" | 0.108" to 0.16" | - | - | - | 25 | €10.95 | |
 |
U38130.087.0001 | 7/8" | 15/16" | 2 1/4" | 0.156" | 0.136" to 0.192" | - | - | - | 10 | €11.89 | |
 |
U38130.100.0001 | 1" | 1.063" | 2 1/2" | 0.156" | 0.136" to 0.192" | - | - | - | 5 | €8.02 |
