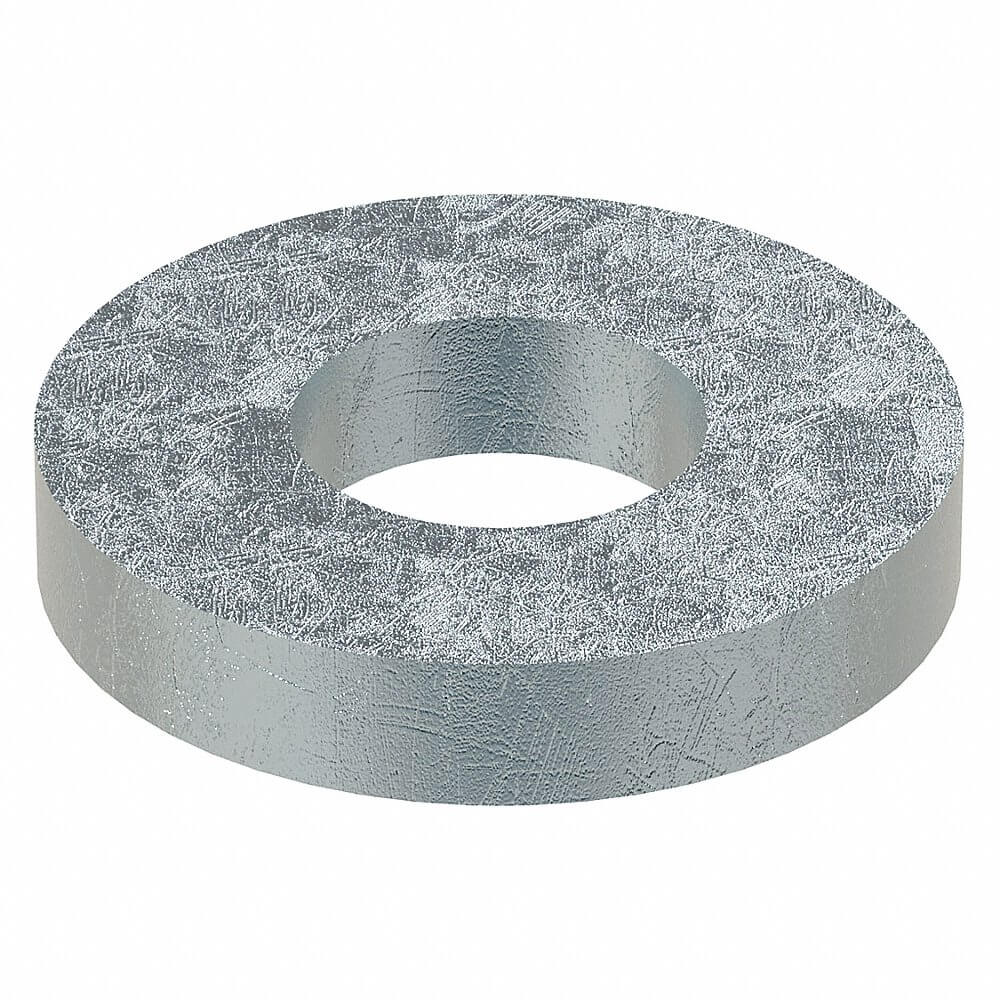

APPROVED VENDOR Z9270 Thick Washer, 1/4 In Fits Bolt Size, Std, 9/32 In I.D., 5/8 In O.D., Yellow Zn Plated, Steel
Item: AE6HCNModel: Z9270Cross Ref: 5RY64
7 In Stock
Ships within 2 days via
5.00% off
€33.07 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thick Washer |
| Dimensional Standards | Ampg 2001 Fl.06 |
| Finish | Zinc Yellow |
| Fits Bolt Size | 1/4" |
| Flat Washer Type | Standard |
| For Screw Size | 1/4" |
| Hardness | Rockwell C43 |
| Inside Dia. | 0.281" , 9/32" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Material | Steel |
| Material Grade/class | Through Hardened |
| Max. Thickness | 0.108" |
| Min. Thickness | 0.09" |
| Outside Dia. | 5/8" |
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Rockwell Hardness | C43 |
| System Of Measurement | Imperial |
| Thickness | 3/32" |
| Thickness Tolerance | -0.004" to +0.005" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 5.08 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M38211.030.0001 | M3 | 0.8 mm | 0.8 mm | 0.8 mm | M3 | Ungraded | 0.028" to 0.035" | 0.126" to 0.133" | 100 | €1.71 | |
 |
M38211.040.0001 | M4 | 1 mm | 1 mm | 1 mm | M4 | Ungraded | 0.035" to 0.043" | 0.169" to 0.176" | 100 | €2.73 | |
 |
M38211.050.0001 | M5 | 1.2 mm | 1.2 mm | 1.2 mm | M5 | Ungraded | 0.039" to 0.055" | 0.209" to 0.216" | 100 | €4.05 | |
 |
M38211.060.0001 | M6 | 1.6 mm | - | - | - | - | - | - | 100 | €5.97 | |
 |
M38211.070.0001 | M7 | 2 mm | - | - | - | - | - | - | 100 | €11.09 | |
 |
M38211.080.0001 | M8 | 2 mm | - | - | - | - | - | - | 100 | €11.22 | |
 |
M38211.100.0001 | M10 | 2.5 mm | 2.5 mm | 2.5 mm | M10 | Ungraded | 0.091" to 0.106" | 0.413" to 0.424" | 100 | €21.95 |
