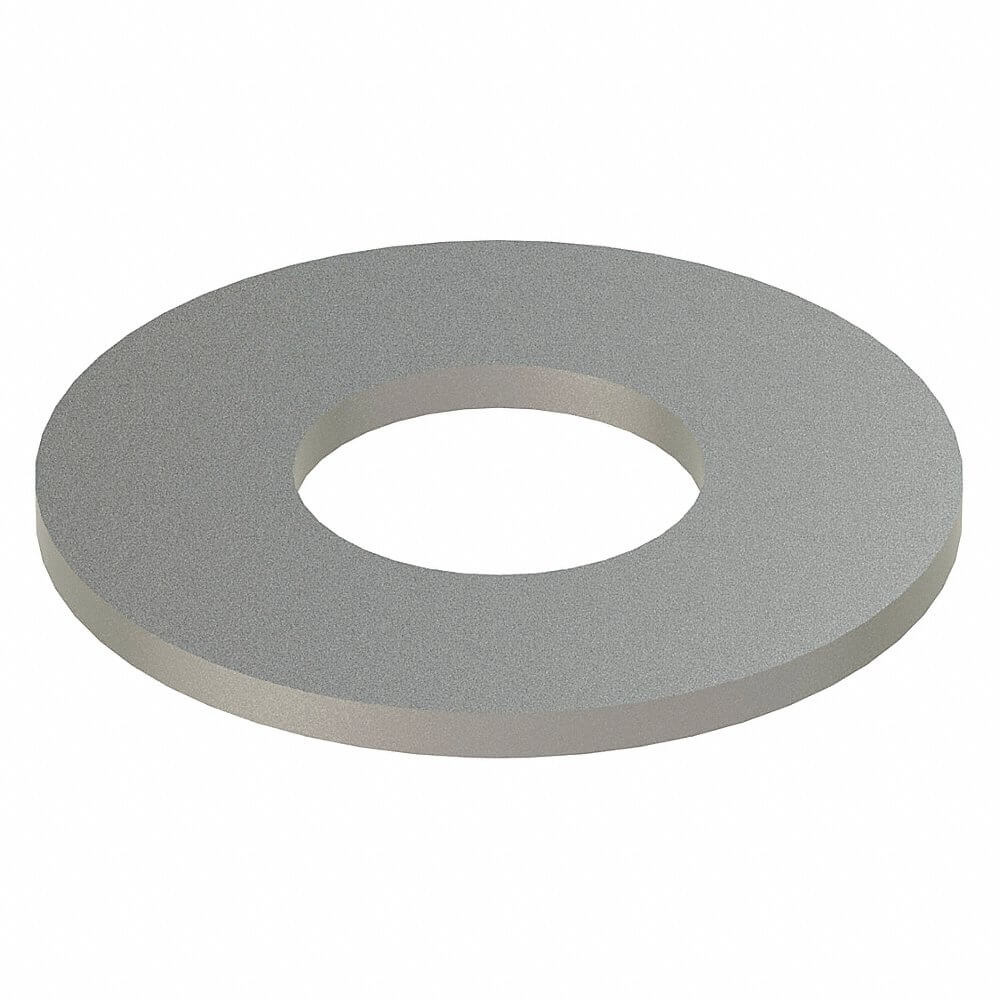

APPROVED VENDOR Z0546-316 Flat Washer, 7/16 In Fits Bolt Size, Oversized, 1/2 In I.D., 1/16 In Thk.
Item: AF2JYJModel: Z0546-316Cross Ref: 6UKX5
7 In Stock
Ships within 2 days via
5.00% off
€91.52 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Color | Silver |
| Finish | Plain |
| Fits Bolt Size | 7/16" |
| Flat Washer Type | Oversized |
| For Screw Size | 7/16" |
| Grade | Grade 316 |
| Hardness | Rockwell B80 |
| Inside Dia. | 1/2" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Material Quality Standards | Astm A276 |
| Max. Thickness | 0.062" |
| Min. Thickness | 0.062" |
| Outside Dia. | 1 1/8" |
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Resistance Properties | Corrosion Resistant, Saltwater Resistant, Solvent Resistant |
| Rockwell Hardness | B83 |
| System Of Measurement | Imperial |
| Tensile Strength | 75000 psi |
| Thickness | 1/16" |
| Thickness Tolerance | -0.004" to +0.005" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 0.58 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 8.89 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Tensile Strength | Min. Thickness | Resistance Properties | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U55530.013.0001 | 0.156" | 9/16" | 0.047" | 0.047" | - | - | 0.047" | - | 50 | €3.50 | |
 |
U55530.018.0125 | 0.223" | 1 1/4" | 0.047" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €26.39 | |
 |
U55530.025.0001 | 9/32" | 1/2" | 0.047" | 0.047" | - | - | 0.047" | - | 50 | €3.30 | |
 |
U55530.025.0002 | 9/32" | 9/16" | 0.063" | 0.063" | - | - | 0.063" | - | 50 | €40.42 | |
 |
U55530.025.0087 | 0.285" | 7/8" | 0.063" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €12.51 | |
 |
U55530.025.0100 | 0.285" | 1" | 0.047" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €14.13 | |
 |
U55530.025.0125 | 0.285" | 1 1/4" | 0.047" | 2/25" | +0.015", -0.018" | Not Applicable | 0.047" | Corrosion Resistant | 50 | €26.11 |
